Specifications
Brand Name :
HIWIN
Model Number :
EGW30CA
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
10
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
EG
Model Size(mm) :
30mm
No. of Blocks per Rail :
1
Rail Mounting Type :
R- Mounting From Top
Rail Length(mm) :
Max 4000mm
Preload Class :
Z0-Very Light Preload , ZA-Light Preload , ZB-Medium Preload
Material :
SNCM220 Carbon Steel
Dust Protection :
SS-standard
Y -Symmetrical (E1＝E2) First hole dimension :
Y= Symmetrical （E1=E2)
Installation :
Easy
Application :
automation machines
Smoothness :
Smooth
Description
①HIWIN EGW30CA Linear Guideway Hiwin Linear Bearings And Guides
The HIWIN EGW30CA Linear Guideway, along with its associated linear bearings and guides, is a high - performance solution for a variety of industrial applications. In automated manufacturing systems, it serves as a fundamental element for ensuring precise motion control. For instance, in robotic assembly lines, it enables the robotic arms to move with exceptional accuracy, allowing them to pick up and place components with millimeter - level precision. This ensures the seamless integration of parts, enhancing the overall quality and reliability of the assembled products.
In the field of CNC machining, the EGW30CA linear guideway provides the necessary stability and smoothness for the cutting tools to traverse along the workpiece. This results in high - quality surface finishes and accurate dimensional control, even when processing complex geometries. Moreover, in automated material handling systems, such as those in warehouses and distribution centers, the HIWIN linear bearings and guides facilitate the efficient movement of goods. They enable conveyor belts and automated carts to glide smoothly, optimizing the flow of materials and improving overall operational efficiency. Overall, the HIWIN EGW30CA Linear Guideway and its associated components are essential for enabling precise, efficient, and reliable automation in various industrial settings.

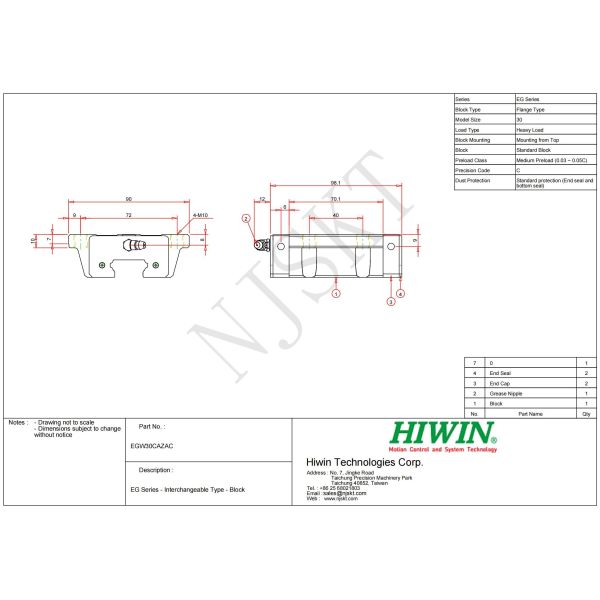

②Drawing of EGW30CA
EGW30CA HIWIN Linear Guide 30mm Size Standard High Performance
③Model Number of EG Series
EGW30CA HIWIN Linear Guide 30mm Size Standard High Performance
④Construction of EG Series
EGW30CA HIWIN Linear Guide 30mm Size Standard High Performance
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal, cap and scraper.
⑤Features of EG series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.
The retainer is designed to hold the balls in the block even when it is removed from the rail.

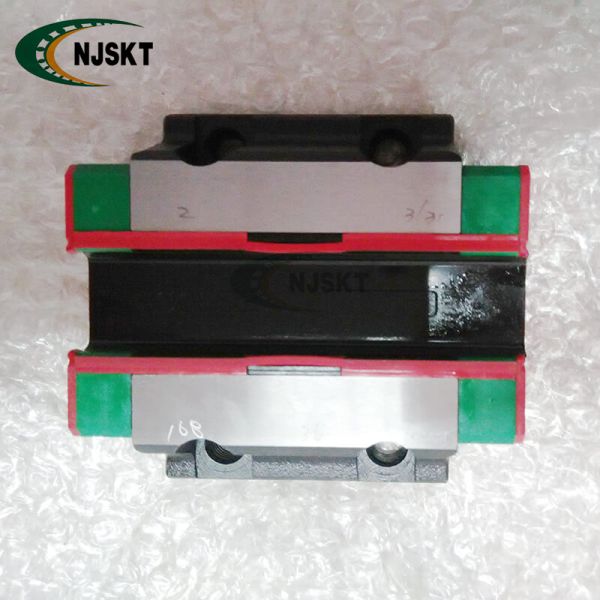

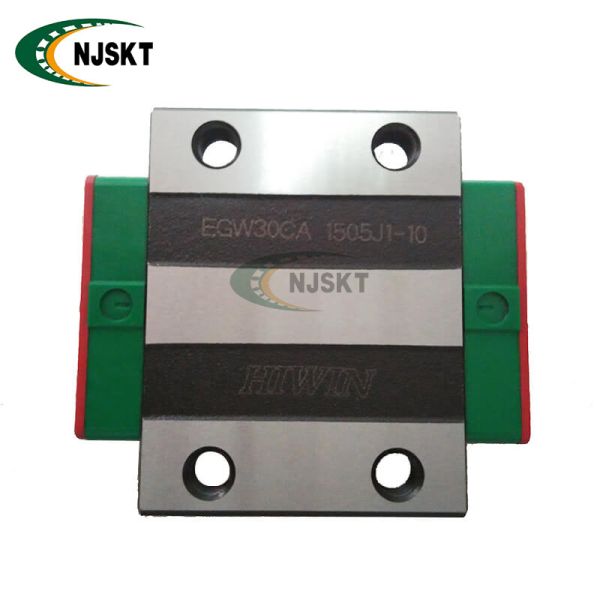

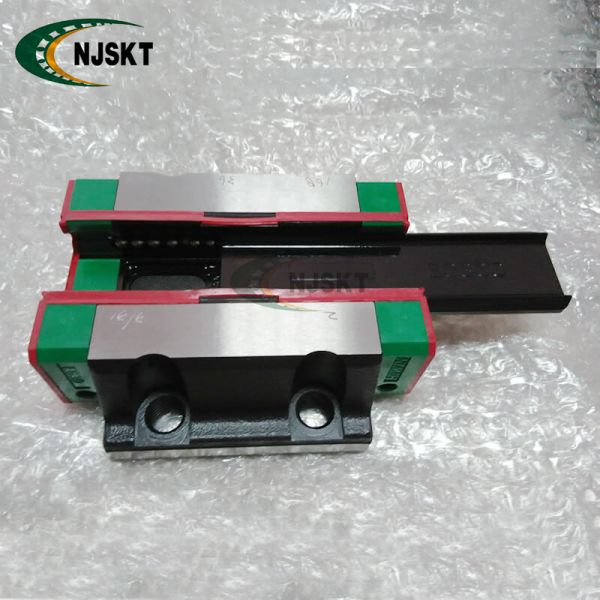

⑥Actual product photo

EGW30CA HIWIN Linear Guide 30mm Size Standard High Performance

⑦Measurement drawing

EGW30CA HIWIN Linear Guide 30mm Size Standard High Performance

EGW30CA HIWIN Linear Guide 30mm Size Standard High Performance

⑧HIWIN series
EGW30CA HIWIN Linear Guide 30mm Size Standard High Performance
