Specifications
Brand Name :
HIWIN
Model Number :
EGW25SA
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
10
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
EG
Model Size(mm) :
25 mm
No. of Blocks per Rail :
1
Rail Mounting Type :
R- Mounting From Top
Rail Length(mm) :
Max 4000mm
Preload Class :
Z0-Very Light Preload , ZA-Light Preload , ZB-Medium Preload
Material :
SNCM220 Carbon Steel
Dust Protection :
SS-standard
Y -Symmetrical (E1＝E2) First hole dimension :
Y= Symmetrical （E1=E2)
Installation :
Easy
Application :
automation machines
Smoothness :
Smooth
Description
①HIWIN EGW25SA Linear Guideway Hiwin Linear Block For Automation

The HIWIN EGW25SA Linear Guideway and Linear Block play a crucial role in the realm of automation. It serves as a reliable and high-performance component that enables smooth and precise linear motion. In automated manufacturing systems, it empowers robotic arms to move with accuracy, ensuring that each operation, like picking and placing components, is executed flawlessly. It's widely utilized in automated assembly lines, where it helps conveyor belts and workpieces glide along the designated path steadily. This not only boosts productivity but also minimizes errors caused by imprecise movements. Whether it's in the electronics industry for microchip production or in automotive factories for parts handling, the HIWIN EGW25SA is the go-to solution, facilitating seamless automation processes and driving industrial advancement.

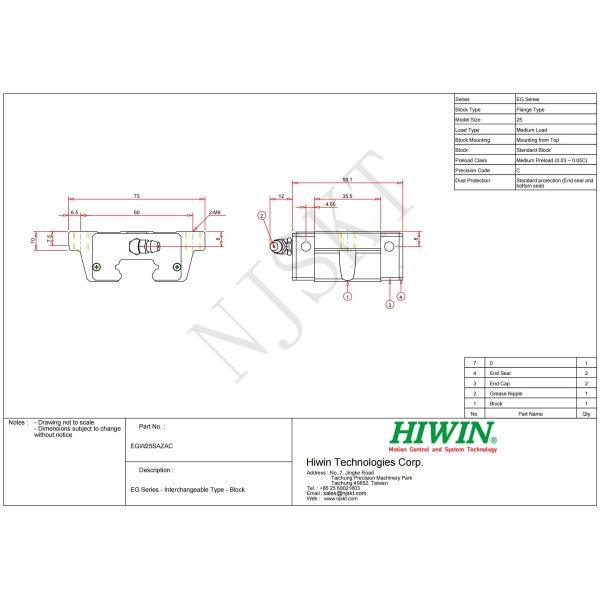

②Drawing of EGW25SA
EGW25SA HIWIN Linear Guide Smooth High Rigidity For Automation
③Model Number of EG Series
EGW25SA HIWIN Linear Guide Smooth High Rigidity For Automation
④Construction of EG Series
EGW25SA HIWIN Linear Guide Smooth High Rigidity For Automation
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal, cap and scraper.
⑤Features of EG series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.
The retainer is designed to hold the balls in the block even when it is removed from the rail.

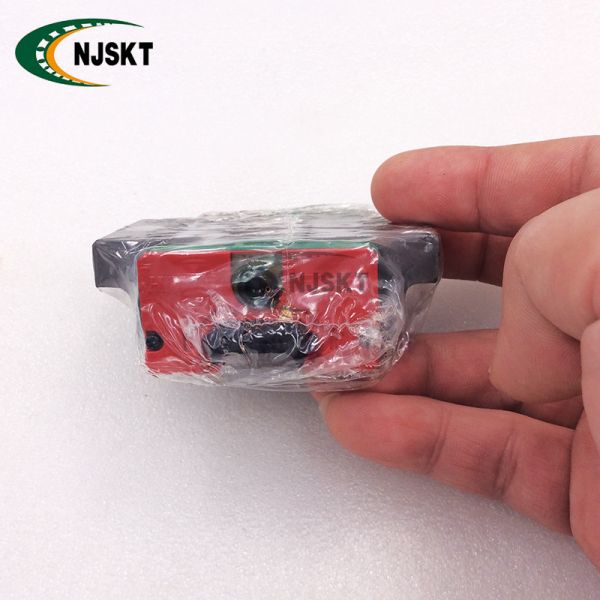

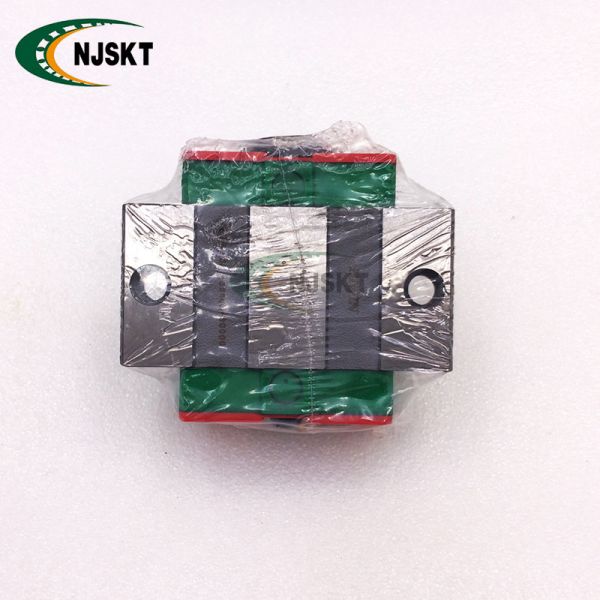

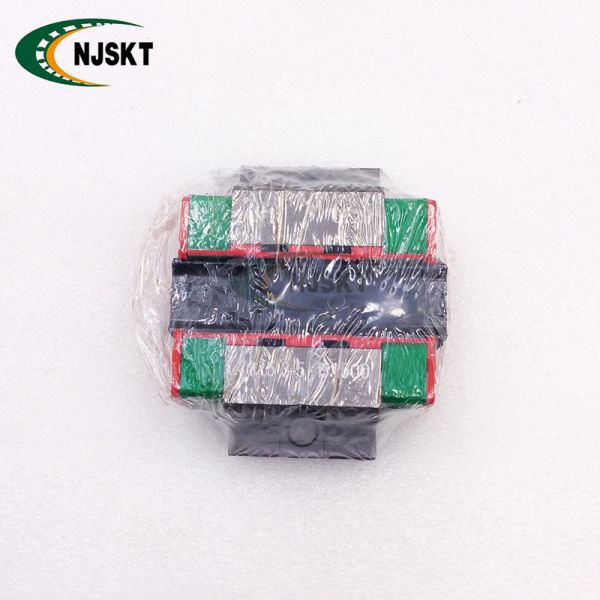

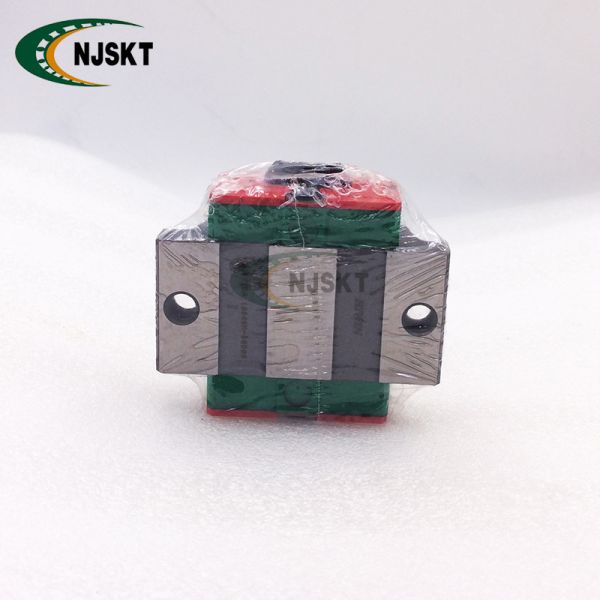

⑥Actual product photo

EGW25SA HIWIN Linear Guide Smooth High Rigidity For Automation

⑦Measurement drawing

EGW25SA HIWIN Linear Guide Smooth High Rigidity For Automation

EGW25SA HIWIN Linear Guide Smooth High Rigidity For Automation

⑧HIWIN series
EGW25SA HIWIN Linear Guide Smooth High Rigidity For Automation
⑨top product recommendation
EGW25SA HIWIN Linear Guide Smooth High Rigidity For Automation
