Specifications
Brand Name :
HIWIN
Model Number :
EGW30SA
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
10
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
EG
Model Size(mm) :
30 mm
No. of Blocks per Rail :
1
Rail Mounting Type :
R- Mounting From Top
Rail Length(mm) :
Max 4000mm
Preload Class :
Z0-Very Light Preload , ZA-Light Preload , ZB-Medium Preload
Material :
SNCM220 Carbon Steel
Dust Protection :
SS-standard
Y -Symmetrical (E1＝E2) First hole dimension :
Y= Symmetrical （E1=E2)
Installation :
Easy
Application :
automation machines
Smoothness :
Smooth
Description
①HIWIN EGW30SA Linear Guideway CNC Bearing For Automatic Machine
The HIWIN EGW30SA Linear Guideway with its integrated CNC Bearing is a cornerstone of modern automation in the machinery world. In automated production scenarios, it emerges as a silent yet powerful enabler. Picture a high-speed CNC machining center where precision is non-negotiable; the EGW30SA allows the cutting tool to traverse along the workpiece with micron-level accuracy, carving out intricate shapes and contours flawlessly.
In the realm of automated robotic workcells, it provides the essential foundation for robots to perform tasks ranging from welding to material handling. The smooth linear motion it affords ensures that robotic arms can reach any target position swiftly and precisely, reducing production cycle times. For automated packaging lines, it guarantees that products glide gently and consistently through the various stages of wrapping and labeling.
Moreover, in automated inspection systems, where sensors need to move precisely over the items being examined, the HIWIN EGW30SA ensures error-free scanning. It eliminates jerky movements that could lead to false positives or negatives in quality control. Overall, it's the linchpin that holds together the complex web of automated processes, making industries more efficient, reliable, and competitive.

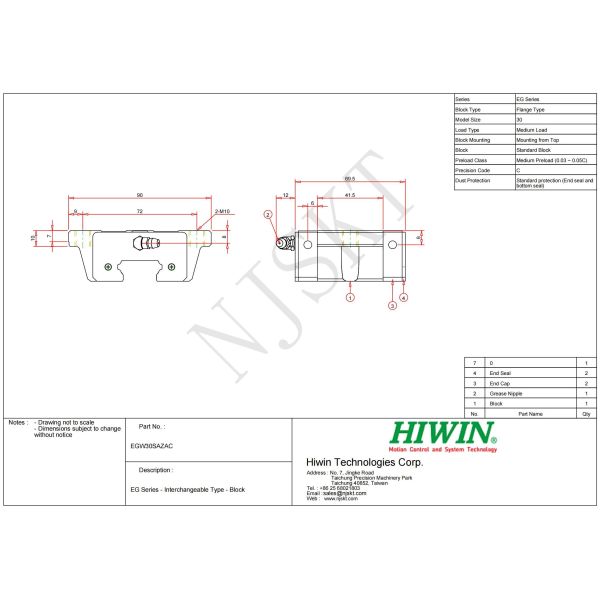

②Drawing of EGW30SA
EGW30SA Linear Guideway Blocks Hiwin Linear Guide Rail For Automatic Machine
③Model Number of EG Series
EGW30SA Linear Guideway Blocks Hiwin Linear Guide Rail For Automatic Machine
④Construction of EG Series
EGW30SA Linear Guideway Blocks Hiwin Linear Guide Rail For Automatic Machine
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal, cap and scraper.
⑤Features of EG series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.
The retainer is designed to hold the balls in the block even when it is removed from the rail.

⑥Actual product photo

EGW30SA Linear Guideway Blocks Hiwin Linear Guide Rail For Automatic Machine

⑦Measurement drawing

EGW30SA Linear Guideway Blocks Hiwin Linear Guide Rail For Automatic Machine

EGW30SA Linear Guideway Blocks Hiwin Linear Guide Rail For Automatic Machine

⑧HIWIN series
EGW30SA Linear Guideway Blocks Hiwin Linear Guide Rail For Automatic Machine
⑨top product recommendation
EGW30SA Linear Guideway Blocks Hiwin Linear Guide Rail For Automatic Machine
