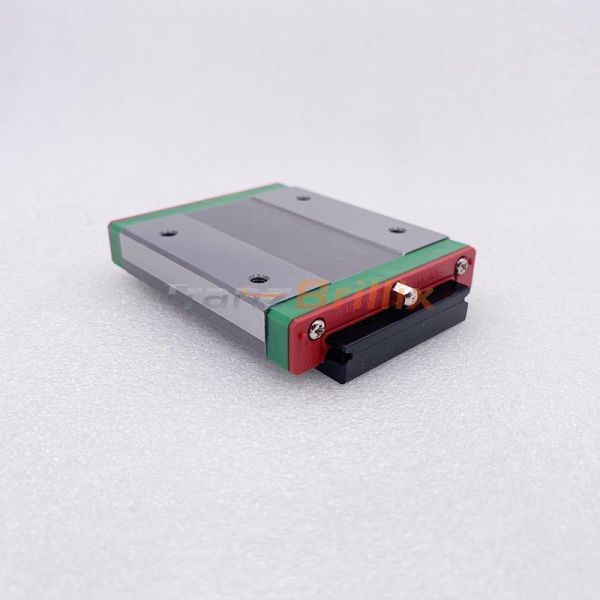

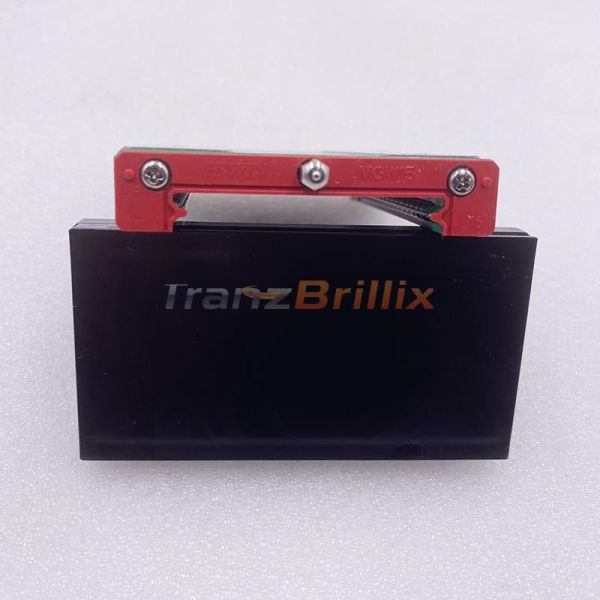

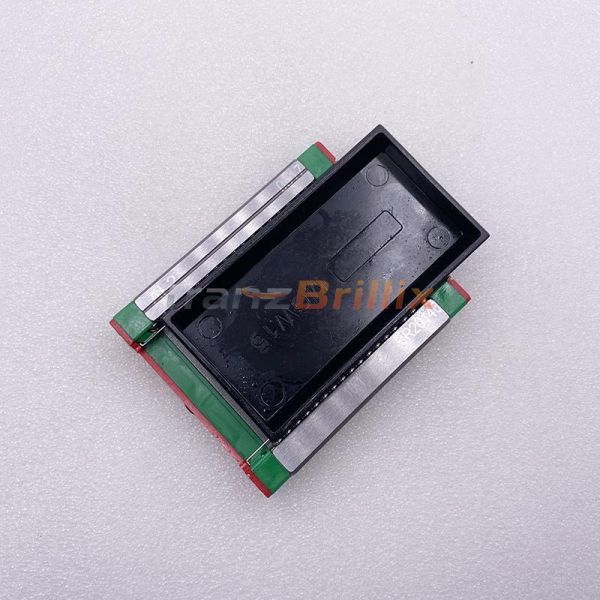

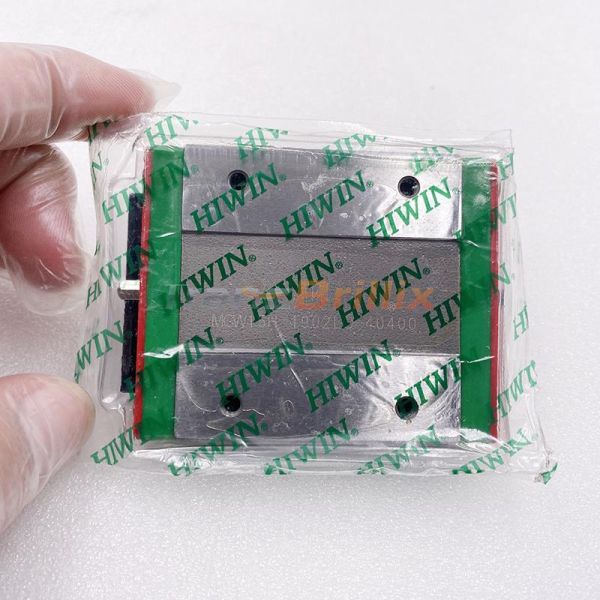

As a flagship product of HIWIN's renowned motion control series, the MGW15H Miniature Linear Guideway exemplifies Taiwanese precision engineering at its finest. This premium MGW-type machined guide rail combines HIWIN's decades of technological innovation with uncompromising quality standards, delivering exceptional performance in demanding automation environments.

The MGW15H incorporates HIWIN's proprietary precision grinding technology, ensuring ultra-smooth linear motion perfect for high-end manufacturing applications. Its robust construction features HIWIN's advanced load distribution system, providing outstanding stability and durability in continuous operation. The guideway's optimized design showcases HIWIN's commitment to reliability, with integrated sealing solutions that protect critical components in challenging industrial conditions.

Ideal for semiconductor equipment, medical robotics, and precision automation systems, this guideway maintains HIWIN's legacy of innovation. The thermal-stable performance and maintenance-friendly architecture reflect HIWIN's user-centric design philosophy, trusted by global manufacturers across industries.

With HIWIN's worldwide technical support and immediate availability, the MGW15H delivers the perfect combination of precision and durability that professionals expect from the industry's most respected motion control brand.

Note: 1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.

• Rolling circulation system: Block, rail, ball, end cap and retainer [except size 2).
• Lubrication system: Grease nipple is available for MGW14, 15, lubricated by grease gun.
• MGW3, 7, 9, 12 are lubricated by the hole at the side of the end cap.
• Dust protection system: End seal (except size2), bottom seal (optional size 9,12,14,15], cap (size12,14,15).

• Tiny and light weight, suitable for miniature equipment.
• Gothic arch contact design can sustain loads from all directions and offer highrigidity and high accuracy
• Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the blocks are removed from the rail.
• Interchangeable types are available in certain precision grades.
• Block: we offers two types of linear guideways, flange and square types
• Rail: we offers standard top mounting type
