Specifications
Brand Name :
HIWIN
Model Number :
RGW35CC
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
10
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
RG
Model Size(mm) :
35mm
No. of Blocks per Rail :
1
Rail Mounting Type :
R- Mounting From Top
Rail Length(mm) :
Max 4000mm
Preload Class :
Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload
Material :
SNCM220 Carbon Steel
Dust Protection :
SS-standard
Y -Symmetrical (E1=E2) First hole dimension :
Y= Symmetrical (E1=E2)
Installation :
Easy
Application :
Automation Systems, Transportation equipment, CNC machining centers, Heavy duty cutting machines
Smoothness :
Smooth
Description
HIWIN RGW35CC Linear Guideway Block High Precision Linear Guide

The HIWIN RGW35CC Linear Guideway Block sets a new benchmark for precision motion in automated industrial systems, delivering the exceptional stability and repeatability required for high-performance automation applications. Engineered to excel in demanding production environments, this high-precision linear guide combines robust construction with refined motion characteristics to ensure flawless operation in robotic assembly lines, automated material handling systems, and precision manufacturing equipment. The RGW35CC's advanced roller technology minimizes friction while maintaining critical alignment accuracy, enabling seamless integration with servo-driven automation where positioning consistency directly impacts production quality. Its vibration-damping properties and rigid structural design provide the foundation for stable operation in high-speed pick-and-place applications, precision dispensing systems, and automated inspection equipment. The guideway's contamination-resistant sealing system protects precision components in challenging industrial environments while requiring minimal maintenance – a crucial advantage for continuous-operation automation cells. Designed to support the evolving needs of Industry 4.0, this linear motion solution enables precise synchronization with advanced control systems, ensuring optimal performance in interconnected smart factories. Whether implemented in automotive production systems, electronics manufacturing, or pharmaceutical automation, the HIWIN RGW35CC delivers the reliable, maintenance-friendly performance that modern automated facilities demand. By combining industrial durability with micron-level precision, this guideway block empowers manufacturers to achieve new levels of productivity and quality in their automated processes, backed by HIWIN's renowned engineering excellence and global reputation for reliable motion solutions.

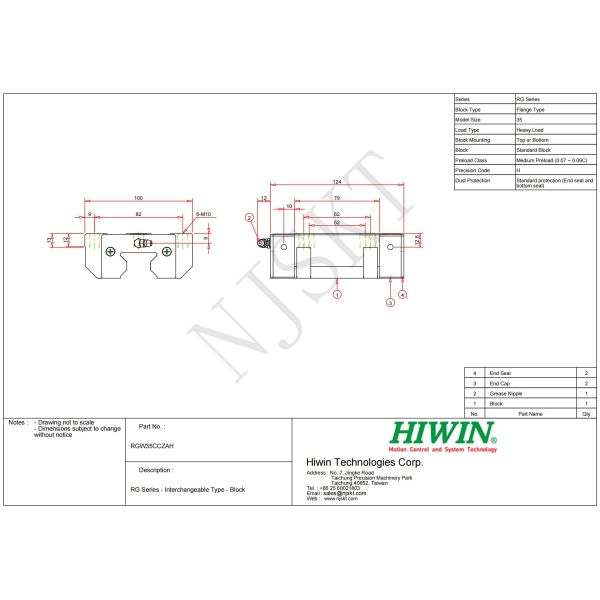

②Drawing of RGW35CC
RGW35CC Hiwin Linear Slider High Precision Linear Roller Guides
③Model Number of RG Series
RGW35CC Hiwin Linear Slider High Precision Linear Roller Guides
④Construction of RG Series
RGW35CC Hiwin Linear Slider High Precision Linear Roller Guides
1.Rolling circulation system: Block, rail, end cap, Circulation path, rollers
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.
⑤Features of RG series
The new RG series from HIWIN features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions.The RG series linear guideway offers high performance for high-precisionmanufacturing and achieving longer service life.
1. Optimal design
FEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the RG series linear guideway to offer smoother linear motion.
2.Super high rigidity
The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area thanballs so that the roller guideway features higher load capacityand greater rigidity. The figure shows the rigidity of a roller and a ball with equal volume.
3. Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions.The RG series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.
4. Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore,stress concentration was reduced siginificantly and the RG series offers longer running life. The nominal life of RG seriescan be calculated by using Eq.

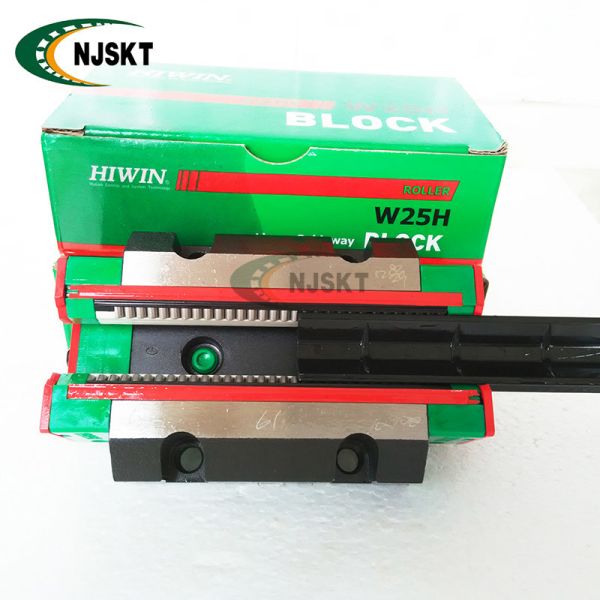

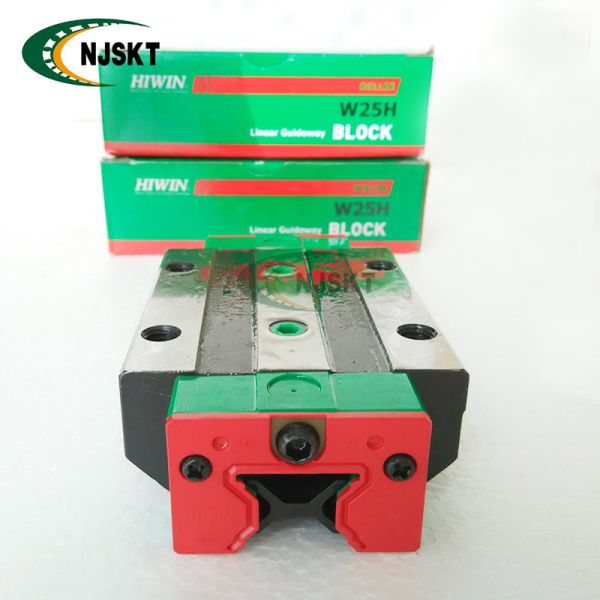

⑥Actual product photo

RGW35CC Hiwin Linear Slider High Precision Linear Roller Guides

⑦Measurement drawing
RGW35CC Hiwin Linear Slider High Precision Linear Roller Guides
RGW35CC Hiwin Linear Slider High Precision Linear Roller Guides
