HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
Specifications
Brand Name :
HIWIN
Model Number :
MGN12C
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
10
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
MGN
Model Size(mm) :
12 mm
No. of Blocks per Rail :
1
Rail Mounting Type :
R- Mounting From Top
Rail Length(mm) :
Max 2000mm
Preload Class :
Z0- Very Light Preload , ZF- Light Clearancer
Material :
Std- Carbon Steel , M- Stainless Steel
Dust Protection :
SS-standard
Y -Symmetrical (E1＝E2) First hole dimension :
Y= Symmetrical （E1=E2)
Installation :
Easy
Application :
CNC Machines, 3D printer
Smoothness :
Smooth
Description
①12mm HIWIN MGN12C Miniature Linear Guideway Linear Bearing Slide Unit
As part of HIWIN's renowned precision motion series, the MGN12C Miniature Linear Guideway delivers superior performance in a 12mm compact profile, combining HIWIN's engineering excellence with reliable linear motion technology. Designed for automation, medical devices, and precision instruments, this guideway features HIWIN's advanced recirculating ball system for smooth, low-friction movement, ensuring long-term accuracy even in demanding applications.

The MGN12C incorporates HIWIN's proprietary sealing technology to protect against dust and contaminants, enhancing durability in industrial and cleanroom environments. Its rigid yet lightweight design makes it ideal for robotics, optical positioning, and high-speed automation where space efficiency and precision are critical.

Backed by HIWIN's global reputation for quality, this linear bearing slide unit offers easy integration, low maintenance, and consistent performance, making it a trusted choice for engineers worldwide. Whether in semiconductor equipment, laboratory automation, or compact machinery, the HIWIN MGN12C ensures reliable motion control with the brand's signature precision and durability.

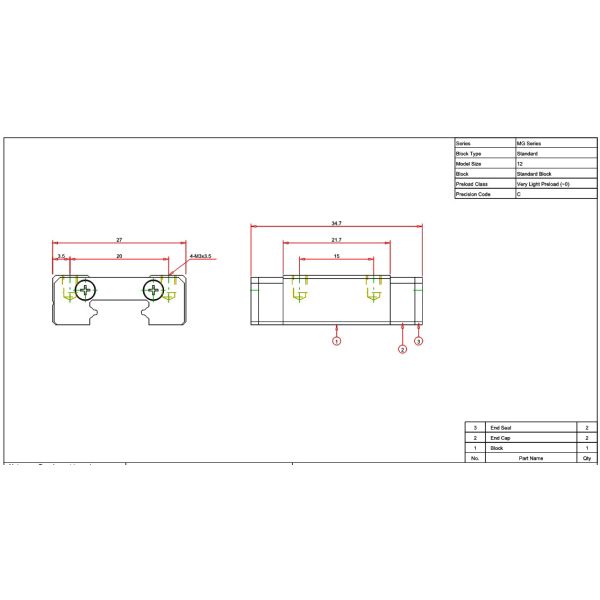

②Drawing of MGN12C

HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit

③Model Number of MG Series
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide UnitNote:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.
④Construction of MGN Series
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.
3.Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)
⑤Features
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and
high accuracy
3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the
blocks are removed from the rail.
4.Interchangeable types are available in certain precision grades.
Block: we offers two types of linear guideways, flange and square types
Rail: we offers standard top mounting type
model No.
block length(mm)
preload classes
bolt size
weight(kg)
MGN7C
22.5
Z0/ZF/Z1
M2*0.4P*6L
0.010
MGN7H
30.8
Z0/ZF/Z1
M2*0.4P*6L
0.015
MGN9C
28.9
Z0/ZF/Z1
M3*0.5P*8L
0.016
MGN9H
39.9
Z0/ZF/Z1
M3*0.5P*8L
0.026
MGN12C
34.7
Z0/ZF/Z1
M3*0.5P*8L
0.034
MGN12H
45.4
Z0/ZF/Z1
M3*0.5P*8L
0.054
MGN15C
42.1
Z0/ZF/Z1
M3*0.5P*10L
0.059
MGN15H
58.8
Z0/ZF/Z1
M3*0.5P*10L
0.092

⑥Actual product photo

HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
⑦Measurement drawing
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
⑧HIWIN series
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
⑧top product recommendation
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
Send your message to this supplier
Send Now

HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit

Ask Latest Price
Watch Video
Product Detail
Brand Name :
HIWIN
Model Number :
MGN12C
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
10
Price :
1-100 USD
Contact Supplier
video
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
HIWIN MGN12C 3D Printed Linear Rails Compact Linear Bearing Slide Unit
