①Z0 Preload HIWIN MGN12H Miniature Linear Guideway Micro Linear Guide

Engineered to HIWIN's exacting standards, the MGN12H Miniature Linear Guideway with Z0 preload delivers uncompromising precision for critical motion applications. This premium micro linear guide exemplifies HIWIN's commitment to excellence, featuring advanced recirculation technology that ensures buttery-smooth operation in space-constrained systems.

Designed for applications demanding absolute accuracy, the MGN12H incorporates HIWIN's proprietary manufacturing techniques to achieve exceptional rigidity and near-zero backlash performance. The guideway's optimized preload configuration maintains perfect alignment throughout its service life, making it ideal for semiconductor equipment, precision metrology, and high-end automation systems.

HIWIN's signature sealing technology protects the precision-ground components from contamination while requiring minimal maintenance. The MGN12H's robust construction and thermal-stable design reflect HiWIN's decades of experience in motion control innovation. Trusted by leading manufacturers worldwide, this guideway carries HIWIN's reputation for reliability into the most demanding micro-positioning applications. From medical robotics to optical alignment systems, the MGN12H delivers the perfect balance of precision, durability, and performance that professionals expect from the HIWIN brand.

②Drawing of MGN12H

HIWIN MGN12H 3D Printer Linear Rails Z0 Preload Micro Linear Guide Standard

③Model Number of MG Series

HIWIN MGN12H 3D Printer Linear Rails Z0 Preload Micro Linear Guide Standard

Note:

  • The bottom seal is available for MGN & MGW 9, 12,14.15.
  • MG5 is only supplied with outer recirculation module.
④Construction of MGN Series

HIWIN MGN12H 3D Printer Linear Rails Z0 Preload Micro Linear Guide Standard

  1. Rolling circulation system: Block, rail, end cap and retainer
  2. Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.
  3. Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)
⑤Features
  1. Tiny and light weight, suitable for miniature equipment.
  2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy
  3. Steel balls are held by a miniature retainer to avoid balls from falling out, even when the blocks are removed from the rail.
  4. Interchangeable types are available in certain precision grades.
  • Block: we offers two types of linear guideways, flange and square types
  • Rail: we offers standard top mounting type
model No. block length(mm) preload classes bolt size weight(kg)
MGN7C 22.5 Z0/ZF/Z1 M2*0.4P*6L 0.010
MGN7H 30.8 Z0/ZF/Z1 M2*0.4P*6L 0.015
MGN9C 28.9 Z0/ZF/Z1 M3*0.5P*8L 0.016
MGN9H 39.9 Z0/ZF/Z1 M3*0.5P*8L 0.026
MGN12C 34.7 Z0/ZF/Z1 M3*0.5P*8L 0.034
MGN12H 45.4 Z0/ZF/Z1 M3*0.5P*8L 0.054
MGN15C 42.1 Z0/ZF/Z1 M3*0.5P*10L 0.059
MGN15H 58.8 Z0/ZF/Z1 M3*0.5P*10L 0.092

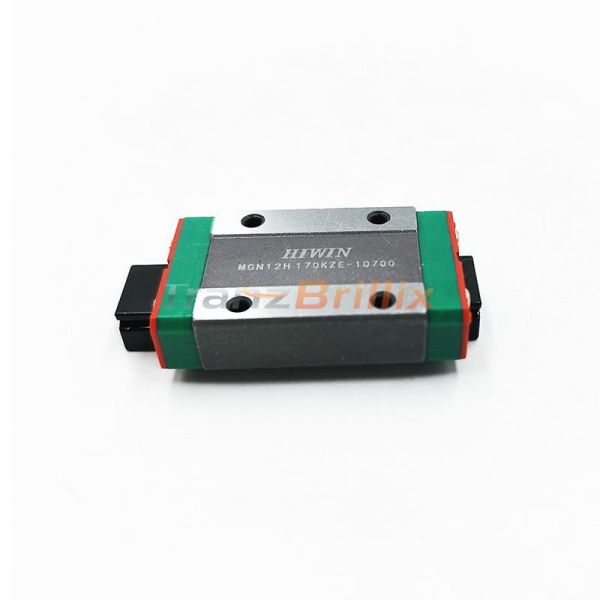

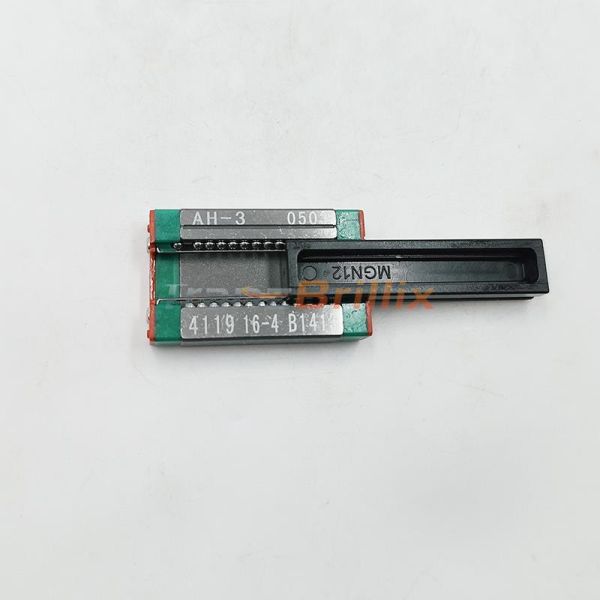

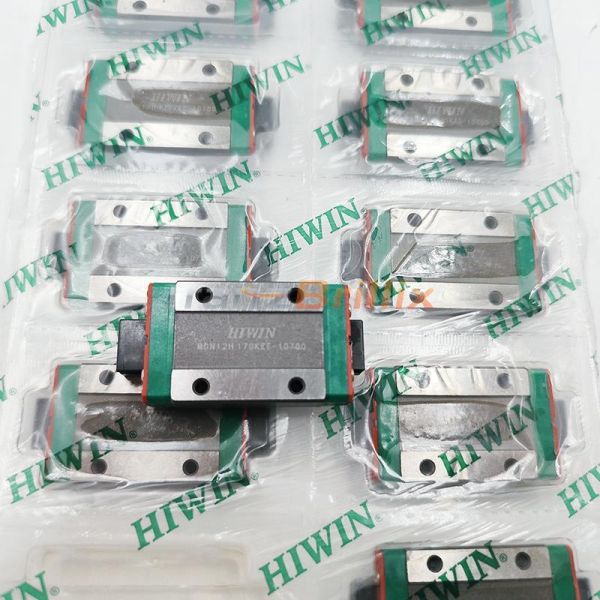

⑥Actual product photo


HIWIN MGN12H 3D Printer Linear Rails Z0 Preload Micro Linear Guide Standard

HIWIN MGN12H 3D Printer Linear Rails Z0 Preload Micro Linear Guide Standard

HIWIN MGN12H 3D Printer Linear Rails Z0 Preload Micro Linear Guide Standard


⑦Measurement drawing

HIWIN MGN12H 3D Printer Linear Rails Z0 Preload Micro Linear Guide Standard

HIWIN MGN12H 3D Printer Linear Rails Z0 Preload Micro Linear Guide Standard


⑧HIWIN series

HIWIN MGN12H 3D Printer Linear Rails Z0 Preload Micro Linear Guide Standard


⑧top product recommendation

HIWIN MGN12H 3D Printer Linear Rails Z0 Preload Micro Linear Guide Standard
