①9mm Miniature Linear Guideway HIWIN MGN9C Hiwin Linear Guide Block
The HIWIN MGN9C Miniature Linear Guideway embodies HIWIN's legacy of superior motion control technology, delivering unmatched reliability in a compact 9mm profile. Designed for applications where space is at a premium, this precision guide block features HIWIN's renowned recirculating ball bearing system, ensuring smooth, frictionless motion with exceptional accuracy. Crafted from premium materials and manufactured to HIWIN's exacting standards, the MGN9C excels in medical devices, laboratory automation, and high-tech electronics where precision and durability are non-negotiable. The guideway incorporates HIWIN's proprietary sealing technology to protect against contaminants while maintaining optimal performance in challenging environments. As a testament to HIWIN's commitment to quality, the MGN9C offers long service life and consistent performance across countless operating cycles. Its versatile design makes it ideal for integration into compact automation systems, precision instruments, and miniature robotic applications. With HIWIN's global reputation for excellence backing every component, the MGN9C delivers the perfect combination of miniaturization and performance for the most demanding motion control challenges.

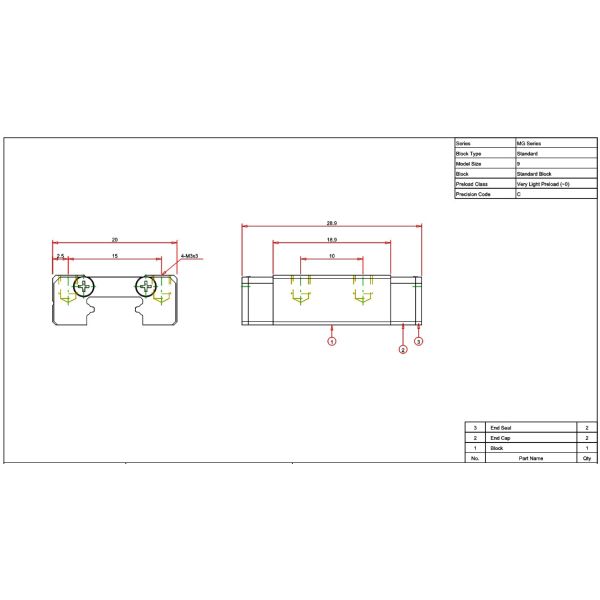

②drawing of MGN9C

MGN9C Hiwin Linear Guide Block 9mm Size Easy Installation High Reliability

③Model Number of MG Series
MGN9C Hiwin Linear Guide Block 9mm Size Easy Installation High ReliabilityNote:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.
④Construction of MGN Series
MGN9C Hiwin Linear Guide Block 9mm Size Easy Installation High Reliability1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.
3.Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)
⑤Features
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and
high accuracy
3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the
blocks are removed from the rail.
4.Interchangeable types are available in certain precision grades.
Block: we offers two types of linear guideways, flange and square types
Rail: we offers standard top mounting type
model No.
block length(mm)
preload classes
bolt size
weight(kg)
MGN7C
22.5
Z0/ZF/Z1
M2*0.4P*6L
0.010
MGN7H
30.8
Z0/ZF/Z1
M2*0.4P*6L
0.015
MGN9C
28.9
Z0/ZF/Z1
M3*0.5P*8L
0.016
MGN9H
39.9
Z0/ZF/Z1
M3*0.5P*8L
0.026
MGN12C
34.7
Z0/ZF/Z1
M3*0.5P*8L
0.034
MGN12H
45.4
Z0/ZF/Z1
M3*0.5P*8L
0.054
MGN15C
42.1
Z0/ZF/Z1
M3*0.5P*10L
0.059
MGN15H
58.8
Z0/ZF/Z1
M3*0.5P*10L
0.092

⑥Actual product photo

MGN9C Hiwin Linear Guide Block 9mm Size Easy Installation High Reliability

⑦Measurement drawing
MGN9C Hiwin Linear Guide Block 9mm Size Easy Installation High Reliability
MGN9C Hiwin Linear Guide Block 9mm Size Easy Installation High Reliability
⑧HIWIN series
