3D Printer Linear Guide 9mm Miniature MGN9C Linear Guideway Offering Smooth Motion High Accuracy and Long Service Life
3D Printer Linear Guide 9mm Miniature MGN9C Linear Guideway Offering Smooth Motion High Accuracy and Long Service Life
3D Printer Linear Guide 9mm Miniature MGN9C Linear Guideway Offering Smooth Motion High Accuracy and Long Service Life
3D Printer Linear Guide 9mm Miniature MGN9C Linear Guideway Offering Smooth Motion High Accuracy and Long Service Life
3D Printer Linear Guide 9mm Miniature MGN9C Linear Guideway Offering Smooth Motion High Accuracy and Long Service Life
3D Printer Linear Guide 9mm Miniature MGN9C Linear Guideway Offering Smooth Motion High Accuracy and Long Service Life
3D Printer Linear Guide 9mm Miniature MGN9C Linear Guideway Offering Smooth Motion High Accuracy and Long Service Life
3D Printer Linear Guide 9mm Miniature MGN9C Linear Guideway Offering Smooth Motion High Accuracy and Long Service Life
3D Printer Linear Guide 9mm Miniature MGN9C Linear Guideway Offering Smooth Motion High Accuracy and Long Service Life
3D Printer Linear Guide 9mm Miniature MGN9C Linear Guideway Offering Smooth Motion High Accuracy and Long Service Life
Specifications
Brand Name :
HIWIN
Model Number :
MGN9C
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
10
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
MGN
Model Size(mm) :
9 mm
No. of Blocks per Rail :
1
Rail Mounting Type :
R- Mounting From Top
Rail Length(mm) :
Max 1200mm
Preload Class :
Z0- Very Light Preload , ZF- Light Clearancer
Material :
Std- Carbon Steel , M- Stainless Steel
Dust Protection :
SS-standard
Y -Symmetrical (E1＝E2) First hole dimension :
Y= Symmetrical （E1=E2)
Installation :
Easy
Application :
CNC Machines, 3D printer
Smoothness :
Smooth
Description
①9mm Miniature Linear Guideway HIWIN MGN9C Hiwin Linear Guide Block

The HIWIN MGN9C Miniature Linear Guideway embodies HIWIN's legacy of superior motion control technology, delivering unmatched reliability in a compact 9mm profile. Designed for applications where space is at a premium, this precision guide block features HIWIN's renowned recirculating ball bearing system, ensuring smooth, frictionless motion with exceptional accuracy. Crafted from premium materials and manufactured to HIWIN's exacting standards, the MGN9C excels in medical devices, laboratory automation, and high-tech electronics where precision and durability are non-negotiable. The guideway incorporates HIWIN's proprietary sealing technology to protect against contaminants while maintaining optimal performance in challenging environments. As a testament to HIWIN's commitment to quality, the MGN9C offers long service life and consistent performance across countless operating cycles. Its versatile design makes it ideal for integration into compact automation systems, precision instruments, and miniature robotic applications. With HIWIN's global reputation for excellence backing every component, the MGN9C delivers the perfect combination of miniaturization and performance for the most demanding motion control challenges.

②drawing of MGN9C

3D Printer Linear Guide 9mm Miniature MGN9C Linear Guideway Offering Smooth Motion High Accuracy and Long Service Life

③Model Number of MG Series
3D Printer Linear Guide 9mm Miniature MGN9C Linear Guideway Offering Smooth Motion High Accuracy and Long Service Life

Note:

  • The bottom seal is available for MGN & MGW 9, 12,14.15.
  • MG5 is only supplied with outer recirculation module.
④Construction of MGN Series
3D Printer Linear Guide 9mm Miniature MGN9C Linear Guideway Offering Smooth Motion High Accuracy and Long Service Life
  1. Rolling circulation system: Block, rail, end cap and retainer
  2. Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.
  3. Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)
⑤Features
  1. Tiny and light weight, suitable for miniature equipment.
  2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and high accuracy
  3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the blocks are removed from the rail.
  4. Interchangeable types are available in certain precision grades.

Block: we offers two types of linear guideways, flange and square types

Rail: we offers standard top mounting type

model No. block length(mm) preload classes bolt size weight(kg)
MGN7C 22.5 Z0/ZF/Z1 M2*0.4P*6L 0.010
MGN7H 30.8 Z0/ZF/Z1 M2*0.4P*6L 0.015
MGN9C 28.9 Z0/ZF/Z1 M3*0.5P*8L 0.016
MGN9H 39.9 Z0/ZF/Z1 M3*0.5P*8L 0.026
MGN12C 34.7 Z0/ZF/Z1 M3*0.5P*8L 0.034
MGN12H 45.4 Z0/ZF/Z1 M3*0.5P*8L 0.054
MGN15C 42.1 Z0/ZF/Z1 M3*0.5P*10L 0.059
MGN15H 58.8 Z0/ZF/Z1 M3*0.5P*10L 0.092

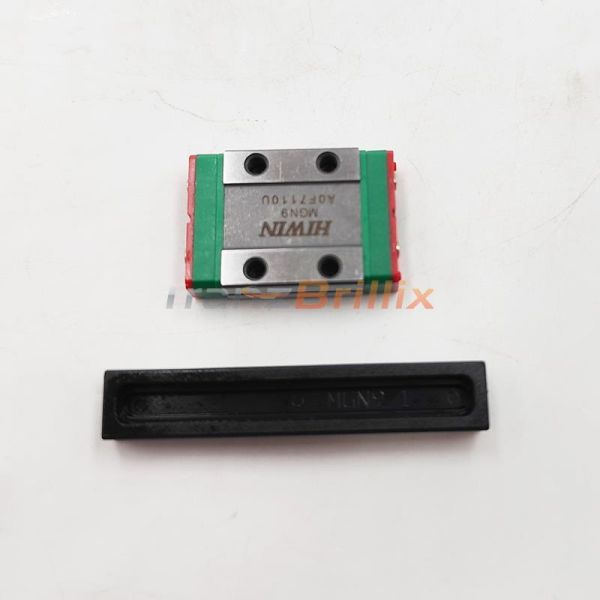

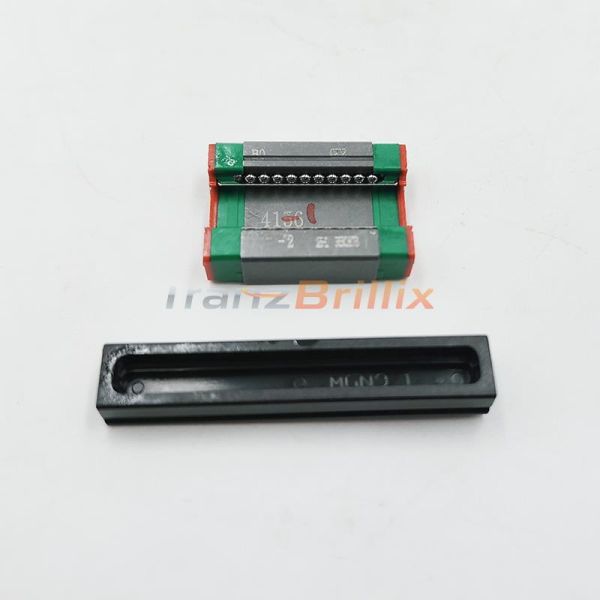

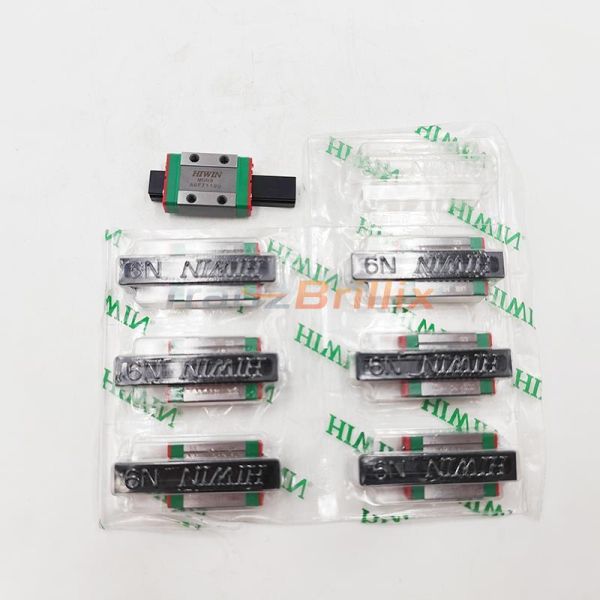

⑥Actual product photo
