MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
Specifications
Brand Name :
HIWIN
Model Number :
MGN9H
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
10
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
MGN
Model Size(mm) :
9 mm
No. of Blocks per Rail :
1
Rail Mounting Type :
R- Mounting From Top
Rail Length(mm) :
Max 1200mm
Preload Class :
Z0- Very Light Preload , ZF- Light Clearancer
Material :
Std- Carbon Steel , M- Stainless Steel
Dust Protection :
SS-standard
Y -Symmetrical (E1＝E2) First hole dimension :
Y= Symmetrical （E1=E2)
Installation :
Easy
Application :
CNC Machines, 3D printer
Smoothness :
Smooth
Description
①MGN Type HIWIN MGN9H Miniature Linear Guideway Hiwin Linear Bearing
The HIWIN MGN9H embodies the brand's legacy of precision engineering, delivering superior linear motion performance in compact applications. This miniature guideway features HIWIN's proprietary recirculation technology for smooth, reliable operation in demanding environments. Designed for space-constrained automation, medical equipment and precision instruments, it incorporates advanced sealing solutions to ensure long-term performance. Backed by HIWIN's rigorous quality standards and global technical support, the MGN9H offers versatile integration options across various motion systems. As a trusted solution from the industry-leading HIWIN brand, it represents the perfect balance of compact design and professional-grade reliability for critical applications.

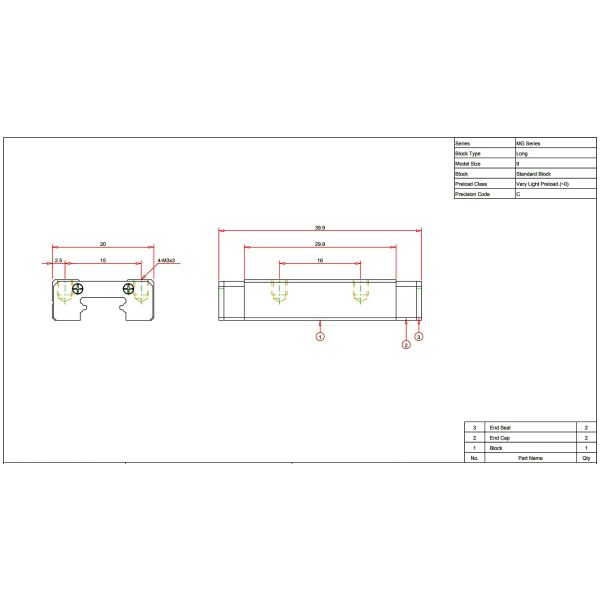

②Drawing of MGN9H

MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines

③Model Number of MG Series
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC MachinesNote:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.
④Construction of MGN Series
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.
3.Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)
⑤Features
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and
high accuracy
3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the
blocks are removed from the rail.
4.Interchangeable types are available in certain precision grades.
Block: we offers two types of linear guideways, flange and square types
Rail: we offers standard top mounting type
model No.
block length(mm)
preload classes
bolt size
weight(kg)
MGN7C
22.5
Z0/ZF/Z1
M2*0.4P*6L
0.010
MGN7H
30.8
Z0/ZF/Z1
M2*0.4P*6L
0.015
MGN9C
28.9
Z0/ZF/Z1
M3*0.5P*8L
0.016
MGN9H
39.9
Z0/ZF/Z1
M3*0.5P*8L
0.026
MGN12C
34.7
Z0/ZF/Z1
M3*0.5P*8L
0.034
MGN12H
45.4
Z0/ZF/Z1
M3*0.5P*8L
0.054
MGN15C
42.1
Z0/ZF/Z1
M3*0.5P*10L
0.059
MGN15H
58.8
Z0/ZF/Z1
M3*0.5P*10L
0.092

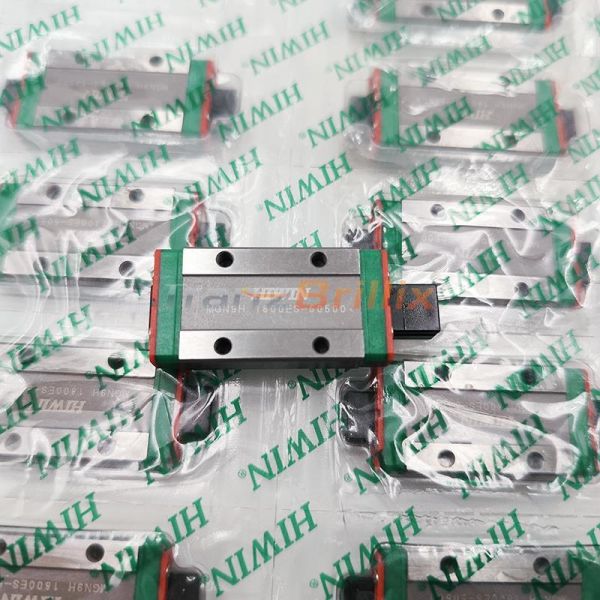

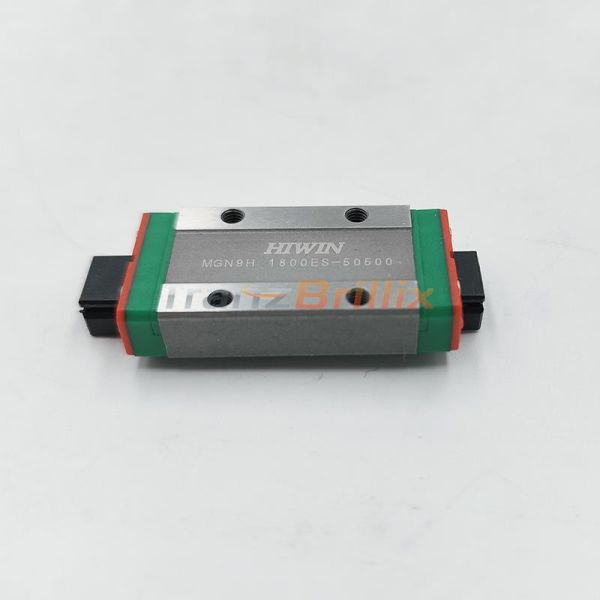

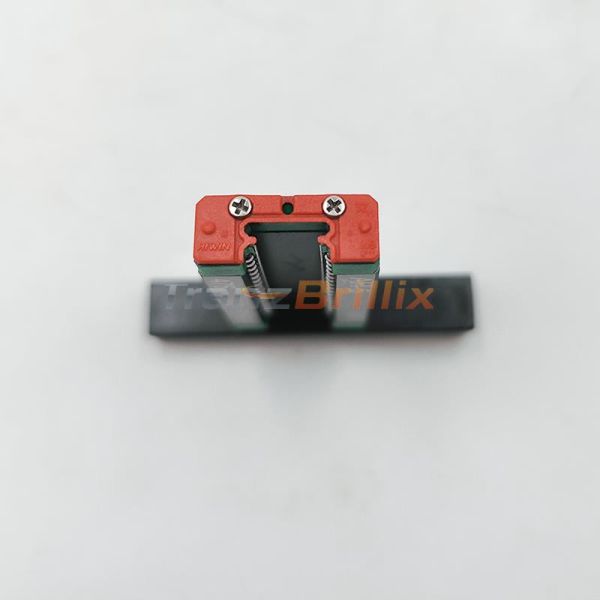

⑥Actual product photo

MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
⑦Measurement drawing
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
⑧HIWIN series
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
⑧top product recommendation
MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
