①7mm Alloy Steel Miniature Linear Guideway HIWIN MGN7C Hiwin Block
The HIWIN MGN7C 7mm Miniature Linear Guideway exemplifies HIWIN's renowned engineering excellence, delivering ultra-compact precision in a rugged alloy steel package. This 7mm-wide HIWIN block combines the brand's signature four-direction equal load design with ultra-high precision, making it a top choice for high-end automation applications. Featuring HIWIN's proprietary heat-treated alloy steel and precision grinding technology, the guideway achieves exceptional wear resistance and smooth motion in demanding 24/7 operations. The system incorporates HIWIN's advanced ball recirculation system for consistent performance , while the brand's specialized sealing technology ensures long-term reliability in contaminated environments. As a genuine HIWIN product, the MGN7C maintains the brand's strict quality standards for micro-automation, semiconductor equipment, and precision instruments. The guideway's HIWIN-certified preload adjustment guarantees zero backlash for critical positioning tasks, backed by the brand's global reputation for durability and precision engineering.

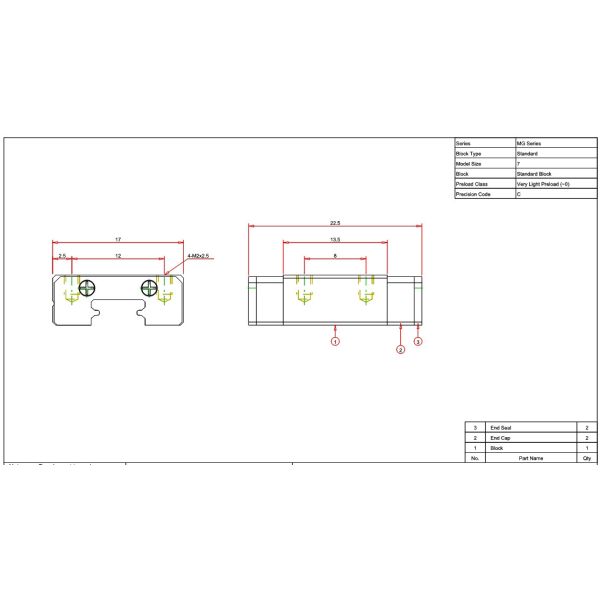

②drawing of MGN7C

Alloy Steel 3D Printed Linear Rails HIWIN MGN7C Block 7mm Size

③Model Number of MG Series
Alloy Steel 3D Printed Linear Rails HIWIN MGN7C Block 7mm SizeNote:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.

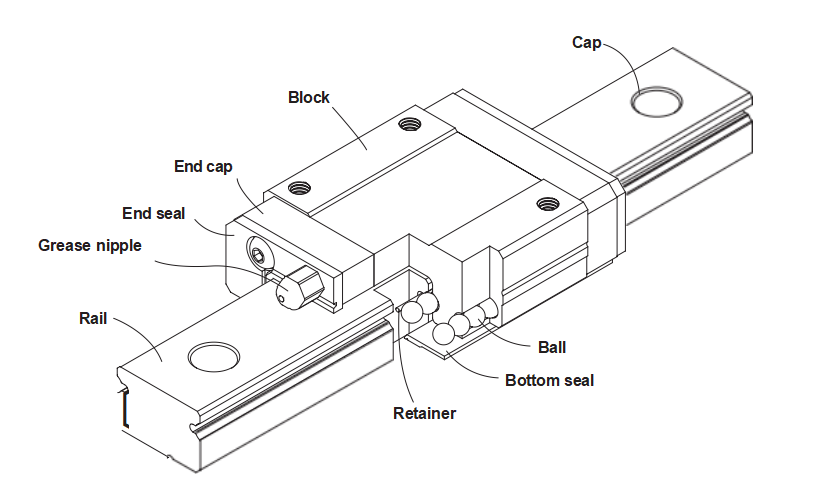

④Construction of MGN Series
Alloy Steel 3D Printed Linear Rails HIWIN MGN7C Block 7mm Size1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.
3.Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)
⑤Features
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and
high accuracy
3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the
blocks are removed from the rail.
4.Interchangeable types are available in certain precision grades.
Block: we offers two types of linear guideways, flange and square types
Rail: we offers standard top mounting type

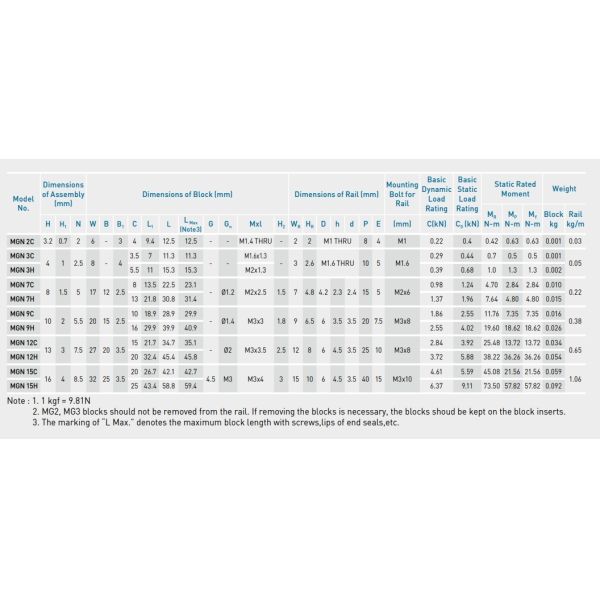

model No.
block length(mm)
preload classes
bolt size
weight(kg)
MGN7C
22.5
Z0/ZF/Z1
M2*0.4P*6L
0.010
MGN7H
30.8
Z0/ZF/Z1
M2*0.4P*6L
0.015
MGN9C
28.9
Z0/ZF/Z1
M3*0.5P*8L
0.016
MGN9H
39.9
Z0/ZF/Z1
M3*0.5P*8L
0.026
MGN12C
34.7
Z0/ZF/Z1
M3*0.5P*8L
0.034
MGN12H
45.4
Z0/ZF/Z1
M3*0.5P*8L
0.054
MGN15C
42.1
Z0/ZF/Z1
M3*0.5P*10L
0.059
MGN15H
58.8
Z0/ZF/Z1
M3*0.5P*10L
0.092

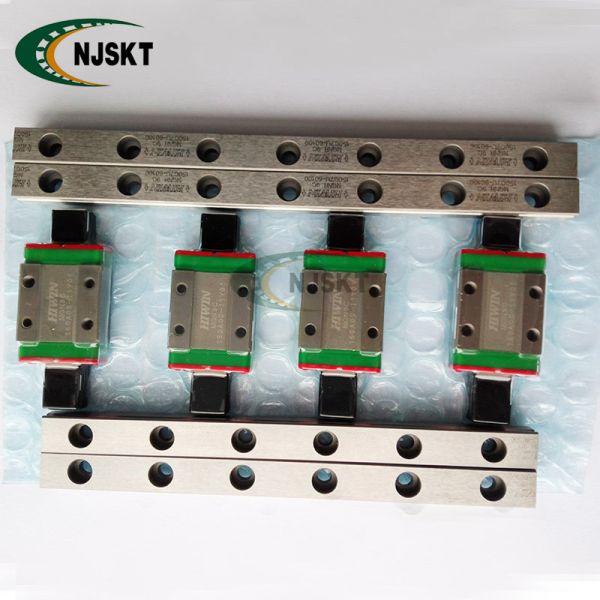

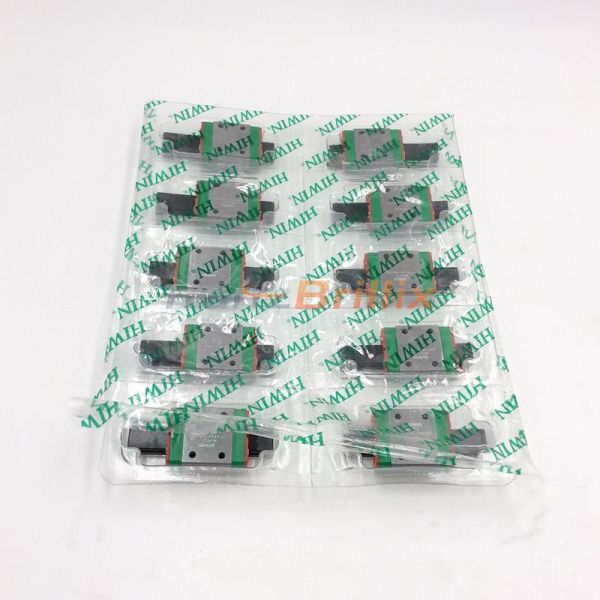

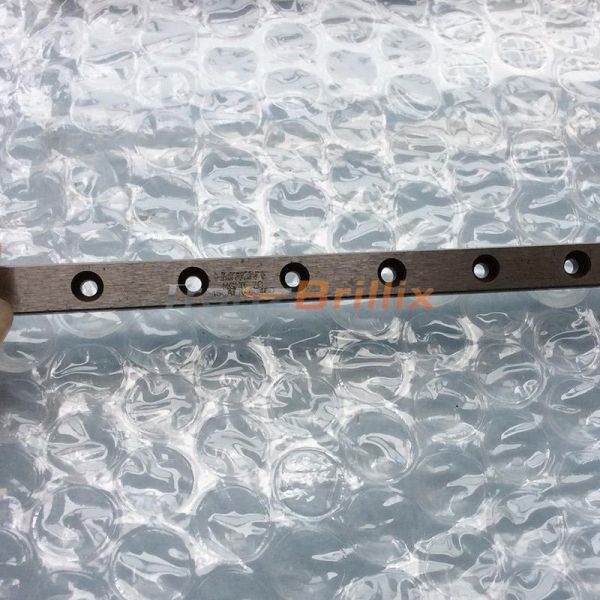

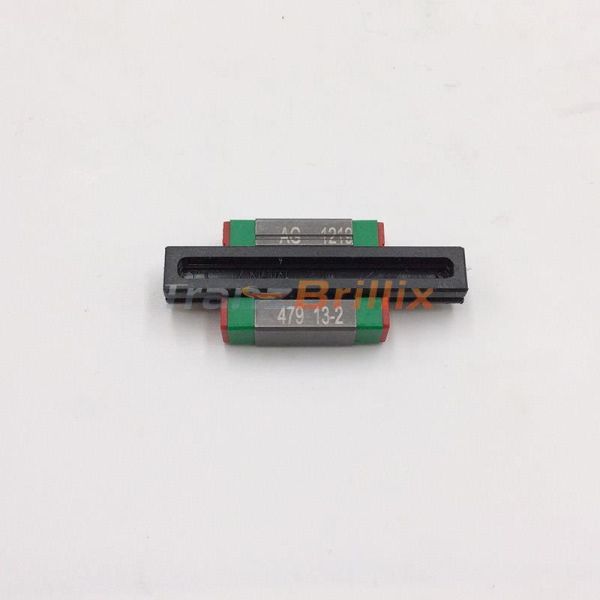

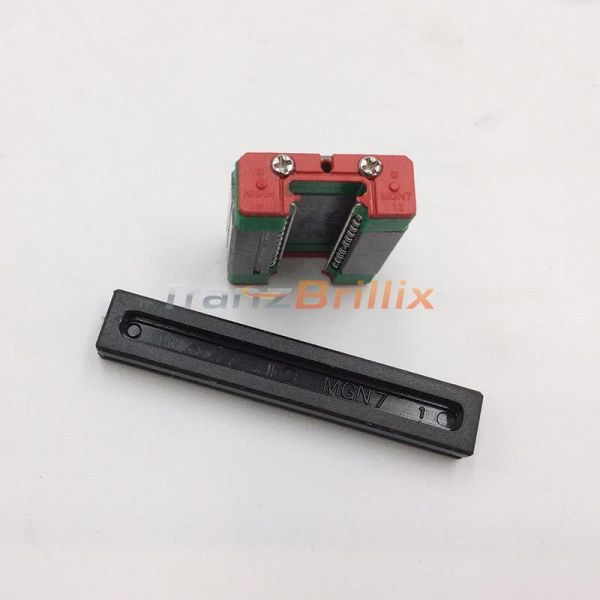

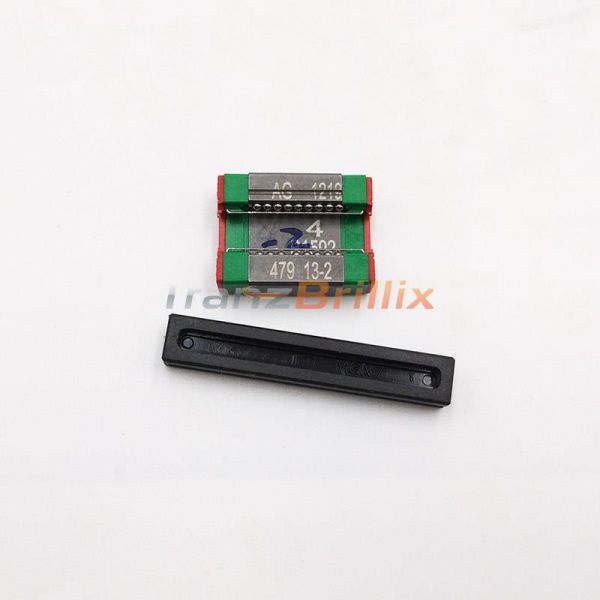

⑥Actual product photo

Alloy Steel 3D Printed Linear Rails HIWIN MGN7C Block 7mm Size

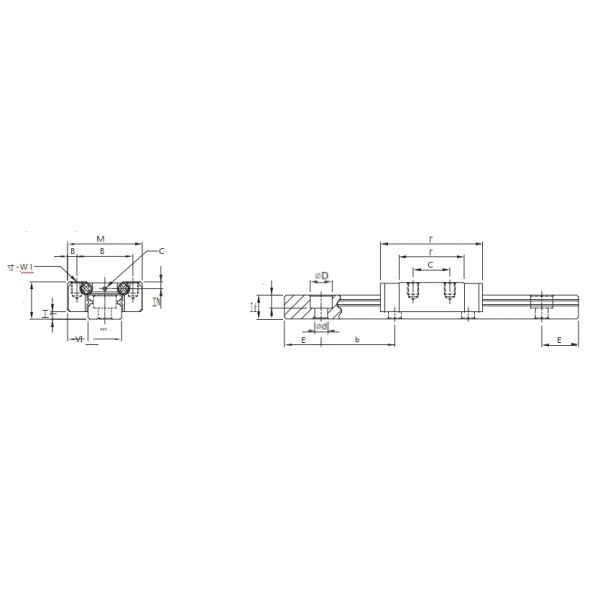

⑦Measurement drawing
