Specifications
Brand Name :
Matsumoto
Model Number :
HMB2014
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$75000-90000
Payment Terms :
T/T
Delivery Time :
50 working days
Packaging Details :
plywood case
Table size :
1000*1000mm
X axis travel :
1600mm
Y axis travel :
1000mm
Z axis travel :
1000mm
Distance from spindle center to table surface :
120- 1120mm
Distance between spindle nose and table center :
200- 1200mm
Description

HMB2014 High Precision Automatic CNC Horizontal Machining with BT50 Spindle Taper

Description:

CNC Horizontal Machining Center (HMC) is a high-performance, computer numerically controlled machining tool characterized by a horizontal spindle orientation, which enables continuous, multi-sided processing of workpieces. Unlike vertical machining centers (VMCs) where the spindle is vertical, HMCs feature a spindle that rotates along a horizontal axis, paired with a rotary table (often a 4-axis or 5-axis indexer) to position the workpiece at various angles for comprehensive machining.
SPECIFICATIONS
Units
HMB2014
Table size
mm
1000*1000
X axis travel
mm
1600
Z axis travel
mm
1000
Y axis travel
mm
1000
Distance from spindle center to table surface
mm
120- 1120
Distance between spindle nose and table center
mm
200- 1200
T slot(number-width*pitch)
mm
5-22*125
Max. worktable load
kg
2000
Table indexing
°
1°*360
Maximum speed of table
r/min
10
Main motor power
kw
15/18.5
Spindle taper
BT50-190
Max. spindle speed
rpm
6000
Cutting feed speed
mm/min
1-10000
Rapid traverse speed
m/min
24 / 20/ 24

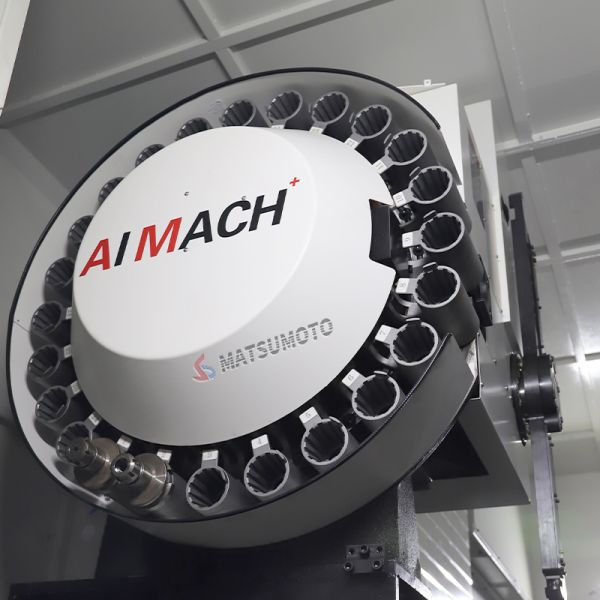

Tool magazine
Arm30
Max. tool diameter
mm
112/200
Max. tool length
mm
400
Max. tool weight
kg
18
Tool change time (tool to tool)
sec
3
Machine minimum setting unit
mm
0.001
X,Y,Z axis positioning accuracy
mm
0.012
X,Y,Z axis repeat positioning accuracy
mm
0.008
B axis positioning accuracy
″
10″
B axis repeat positioning accuracy
″
5″
Machine weight
kg
19000
Overall dimension(L*W*H)
mm
5300*3900*3300
Application:
CNC Horizontal Machining Centers are widely adopted in high-volume, precision manufacturing industries, particularly for complex workpieces that require multi-sided machining and consistent quality. Their primary applications include:
  • Automotive Industry: Mass-producing engine blocks, cylinder heads, transmission cases, differential housings, and axle components. HMCs’ ability to machine multiple sides in one setup ensures tight tolerances for automotive parts that demand high performance and interchangeability.
  • Aerospace Industry: Machining structural components (e.g., aircraft frames, wing ribs), engine parts (turbine blades, compressor casings), and landing gear components. The high precision and multi-axis capability of HMCs meet the strict quality standards of aerospace manufacturing.
  • Heavy Machinery Manufacturing: Producing hydraulic valves, pump housings, gearboxes, and bearing blocks for construction, mining, and agricultural machinery. HMCs handle large, heavy workpieces with stability and efficiency.
