VTC65 Automatic CNC Vertical Lathe Machine High Accuracy With Three Jaw Chuck
VTC65 Automatic CNC Vertical Lathe Machine High Accuracy With Three Jaw Chuck
VTC65 Automatic CNC Vertical Lathe Machine High Accuracy With Three Jaw Chuck
VTC65 Automatic CNC Vertical Lathe Machine High Accuracy With Three Jaw Chuck
VTC65 Automatic CNC Vertical Lathe Machine High Accuracy With Three Jaw Chuck
VTC65 Automatic CNC Vertical Lathe Machine High Accuracy With Three Jaw Chuck
VTC65 Automatic CNC Vertical Lathe Machine High Accuracy With Three Jaw Chuck
VTC65 Automatic CNC Vertical Lathe Machine High Accuracy With Three Jaw Chuck
VTC65 Automatic CNC Vertical Lathe Machine High Accuracy With Three Jaw Chuck
VTC65 Automatic CNC Vertical Lathe Machine High Accuracy With Three Jaw Chuck
Specifications
Brand Name :
Matsumoto
Model Number :
VTC65
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$26800-30000
Payment Terms :
T/T
Delivery Time :
30 working days
Packaging Details :
plywood case
Max. swing diameter :
650mm
Max. cutting length :
700（OD≤Ф500）mm
Max. cutting diameter :
Φ600（Height≤300）mm
Spindle type :
A2-8/11
Spindle speed :
80-1500r/min
Spindle speed step :
stepless
Description

VTC65 High Precision Automatic CNC Vertical Lathe Machine


Description:

VTC65 vertical CNC lathe, is on the basis of absorbing the advanced technology of similar machine tools at home and abroad, set our company for many years pf production of CNC vertical car experience, adapt to the market demand and design, production of excellent products. This series of machine tools is economical and efficient, and it is the first choice for automobile, industry and other kinds of machinery industries to process complex plate parts.

The series of machine tools can process a variety of short shaft, disc parts, can cut a variety of threads arc, and the inside and outside of the rotary body, end surface, groove. It is suitable for processing the parts with large batch size, high machining accuracy and high size consistency requirements. The series of machine tools is widely used in the automobile industry at home and abroad. It is a kind of high quality, high precision, low cost and high efficiency.


PROJECT

VTC65

Max. swing diameter

650mm

Max. cutting length

700(OD≤Ф500)mm

Max. cutting diameter

Φ600(Height≤300)mm

Spindle type

A2-8/11

Spindle speed

80-1500r/min

Spindle speed step

stepless

Spindle transmission ratio

1:3

Output power of the main motor

15/18.5kw

Main motor has a rated torque

191/236Nm

Chuck diameter

500/K3L form

X-axis servo motor

2.7Kw-18Nm

Z-axis servo motor

2.7Kw-18Nm


Tools holder form

Gang type

Gang type holders

Electrical

4/6 station

Hydraulic

8/12 station

Power holder

8/12 station


Guideway type mm

Harden guide

Z-axis hard rail surface is 100 wide

X-axis hard rail surface is 80 wide

Roller line rail

Z axis 45

X axis 45

Column guide rail span mm

Harden guide

480

Line rail

465

Cross rail span mm

Harden guide

350

Line rail

335

X-axis fast moving speed m/min

Harden guide

10

Line rail

18

Z-axis fast moving speed m/min

Harden guide

10

Line rail

18

X-axis travel mm

-150~+500

Z-axis travel mm

750

Electrical capacity KVA

18

Machine tool weight about T

7.5

Machine size

2400*2100*3200


  • Details Images

VTC65 Automatic CNC Vertical Lathe Machine High Accuracy With Three Jaw Chuck

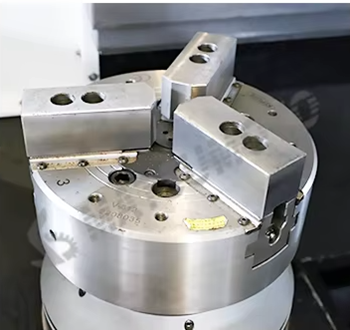

THREE-JAW CHUCK


Strong clamping during work, long use time.

VTC65 Automatic CNC Vertical Lathe Machine High Accuracy With Three Jaw Chuck

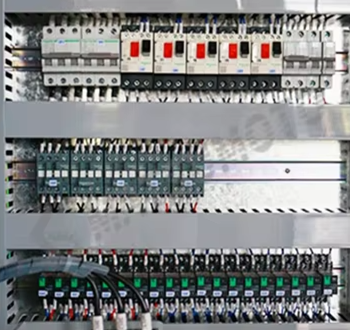

ELECTRIC CONTROL BOX


The wiring of the electric control box is neat and reasonable, and the original electric parts adopt brand accessories.

VTC65 Automatic CNC Vertical Lathe Machine High Accuracy With Three Jaw Chuck

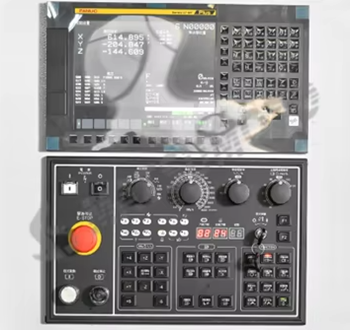

CNC CONTROL SYSTEM


Standard: GSK

Optional: FANUC/MITSUBISHI etc.
