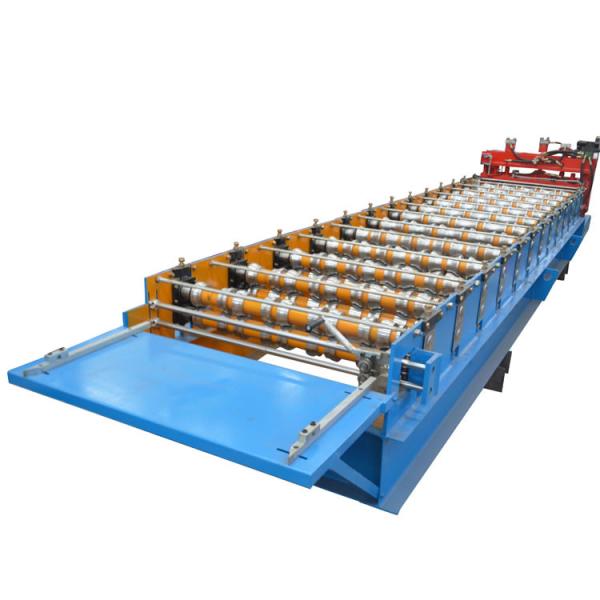

Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory
Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory
Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory
Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory
Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory
Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory
Specifications
Brand Name :
WADJAY
Model Number :
930
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100
Delivery Time :
28days
Packaging Details :
wooden
Warranty :
1 Year
Production Capacity :
0-3m/minute
Product name :
Glazed tile roll forming machine
Weight :
2.5-3.8 ton
Dimension(l*w*h) :
7.2*1.3*1.1 m
Voltage :
380V, 3 phase, 50hz
Description

Colored steel galvanized high speed glazed tile roll forming machine factory

Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory

Name

Colored steel galvanized glazed roof tile roll forming making machine factory

Suitable Material

Colored or galvanized steel coil, HRB60 or equivalent

Thickness Range

0.3-0.8 mm

Coil Width Range

914, 1000, 1220 or 1250 mm.

According to your actual drawing.

Electric Power

380V, 50 Hz, 3 phase

or according to your need.

Dimension

About 7.2*1.3*1.1m(L*W*H), as per the drawing

Cutting

Automatically stop and cutting when it comes to the set length.

Length of the Sheet

You can set the length according to your need.

It is controlled by PLC

length accuracy: ±1mm.

Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory

Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory

Working Flow
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory

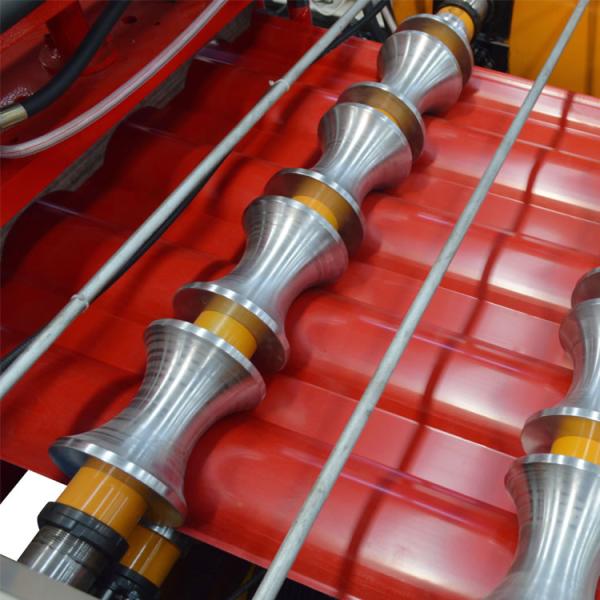

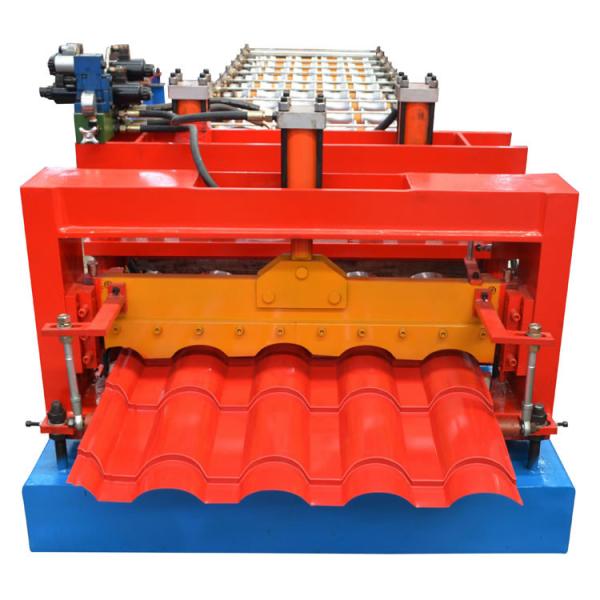

Details Show

Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory

Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine FactoryColored Steel Galvanized High Speed Glazed Tile Roll Forming Machine FactoryColored Steel Galvanized High Speed Glazed Tile Roll Forming Machine FactoryColored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory

The Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.
Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory
Colored Steel Galvanized High Speed Glazed Tile Roll Forming Machine Factory
Henan WadJay Machinery Co.Ltd manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, H-BEAM Line etc.As a professional manufacturer & import of ROLL FORMING MACHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard.
