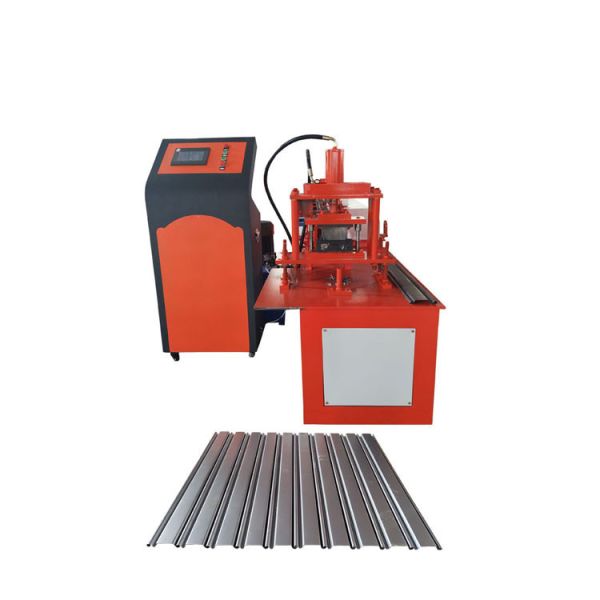

aluminium shutter door section roll forming machine shutter slat door & window section roll forming machine
aluminium shutter door section roll forming machine shutter slat door & window section roll forming machine
aluminium shutter door section roll forming machine shutter slat door & window section roll forming machine
aluminium shutter door section roll forming machine shutter slat door & window section roll forming machine
aluminium shutter door section roll forming machine shutter slat door & window section roll forming machine
aluminium shutter door section roll forming machine shutter slat door & window section roll forming machine
Specifications
Brand Name :
WADJAY
Certification :
CE,ISO 9001
Place of Origin :
china
Condition: :
New
Dimension(L*W*H): :
5000mm*1000mm*1500mm
Weight: :
3t
Raw material: :
PPGI PPGL GI GL
Shaft material: :
High grade 45# forged steel
Feeding width: :
170mm
Thickness: :
0.3-1.2mm
Diameter of shaft (solid shaft): :
50mm
Description

aluminium shutter door section roll forming machine shutter slat door & window section roll forming machine

Product Description


aluminium shutter door section roll forming machine shutter slat door & window section roll forming machine

Production Process:

Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving

aluminium shutter door section roll forming machine shutter slat door & window section roll forming machine

Suitable Material Material GI, PPGI, PPGL
Width 170 mm
Thickness 0.3-1.2 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 12 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 50 mm
Material of cutting blade Cr12 Heat Treatment
Cutting Mode Hydraulic Guide Column
Speed 15-20 m/min
Side plate thickness 16 mm
Chain size 1 inch
Total power 4 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 5000mm*1000mm*1500mm
Weight(About) 3 tons
Length measurement Encoder
Control mode Delta PLC
Operating mode Button + Delta Touch screen
