Light Pole Straightening Machine Model JZ-63-4000
Light Pole Straightening Machine Model JZ-63-4000
Light Pole Straightening Machine Model JZ-63-4000
Light Pole Straightening Machine Model JZ-63-4000
Light Pole Straightening Machine Model JZ-63-4000
Light Pole Straightening Machine Model JZ-63-4000
Specifications
Brand Name :
CMC
Model Number :
JZ-63-4000
Place of Origin :
Wuxi, Jiangsu, China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
According to specific requirement
Delivery Time :
90 days
Packaging Details :
Suitable for container shipment, both marine and inland transportation
Description

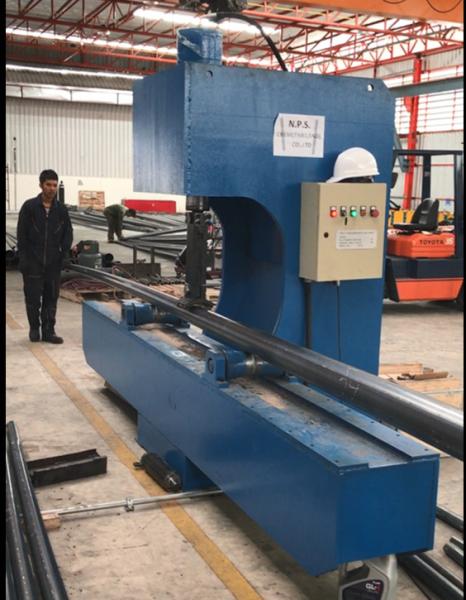

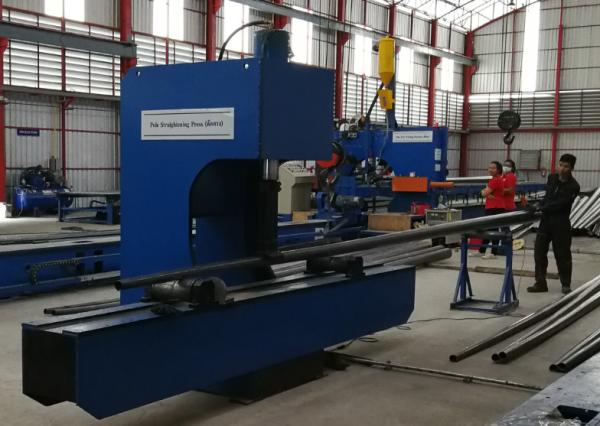

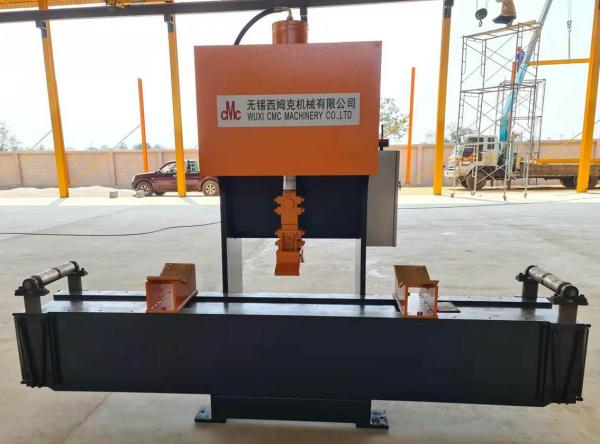

POLE STRAIGHTENING MACHINE

Model: JZ-30-3000 / JZ-63-4000

Application: it is for straightening the street light pole and high mast after welding and Hot Dip Galvanizing process.

With wireless remote control handle, with polyurethane cover.

路灯杆校直机 型号: JZ-30-3000 / JZ-63-4000

应用:本机主要用于对路灯杆,高杆灯杆在合缝焊接和热镀锌后的弯曲变形进行校直.

带无线遥控操作手柄,聚胺脂覆盖防止压痕.

2. Technical parameter

TECHNICAL PARAMETER 主要技术参数
Name 项目 Unit 单位 Value 数值 Value 数值
Max. Pole diameter最大灯杆直径 mm 350 650
Min. Pole diameter最小灯杆直径 mm 60 60
Nominal working pressure标称工作压力 KN 300 630
Length of worktable 工作台长度 mm 3000 4000
Distance between Housing 墙板间距 mm 840 900

Throat Depth 喉口深度

(Cylinder center to side frame)

 mm 210 310
Stroke油缸行程 mm 400 400
Max. Open Height 最大开启高度 mm 510 600
Main Motor(for Pump)电动机油泵 Rotate Speed旋转速度 r/min 1440 1440
Power 功率 KW 5 7.5

Overall Dimensions

外形尺寸

 Length 长 mm 3000 4000
Width 宽 mm 1260 1260
Height 高 mm 2230 2230
Weight重量 Kg 2000 2300
