Function:
1. Impurity filtration: filter out impurities such as iron powder and aluminum powder suspended on the surface of the cutting fluid to avoid recoil adhesion or scratching of the workpiece surface;
2. Oil water separation: Remove various impurities (guide rail oil, hydraulic oil, etc.) from the surface of the liquid tank to quickly achieve oil water separation;
3. Aeration sterilization: Through the aeration circulation function, various microorganisms in the cutting fluid can be effectively killed, and sterilization and deodorization can be achieved;
4. Water purification: do not change the liquid phase of the cutting fluid, and regularly replenish new liquid after purification to maintain concentration;
5. Reduce costs: significantly reduce the cost of replacing new liquids and waste liquid treatment;
6. Extending tool life: With better lubrication and rust prevention properties of cutting fluid, the machining accuracy of natural workpieces increases, and the service life of the tool also increases;
7. Improving workshop environment: reducing skin allergies among workers, reducing corrosiveness to machine tools, and improving workshop environment.

Product parameters:
Attribute: A cutting fluid regeneration equipment with a purification rate of over 98%;
Usage: Oil removal, sterilization, and deodorization, improving the quality of cutting fluid;

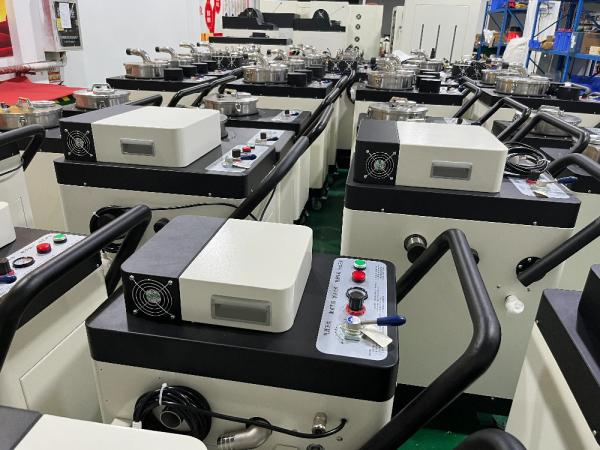

Product name: Di'angtianke oil-water separator
Performance: Remove floating oil, sterilize and deodorize, and extend the service life of cutting fluid;
Features: Pure physical purification, no additional chemicals added, zero consumables;
Working mode: capable of 24-hour online cyclic processing without the need for shutdown;
Business model: OEM/customized;
Processing capacity: 1000-3000L/H (adjustable);
Ozone value: 100-150mg/h;
Floating oil removal rate: up to 98% or above;
Working voltage: AC220V;
Equipment power: 150W;
Equipment size: 650 * 400 * 800mm;
Packaging box size: 750 * 450 * 900mm;
Applicable object: water-based cutting fluid;
Weight: 49kg;
Pre processing filtration accuracy: 0.3mm (customizable)

advantage:
1. The suction type high-efficiency oil-water separation can achieve an oil removal rate of over 98%;
2. Increase the oxygen content in water and inhibit the production of bacteria;
3. Can simultaneously remove impurities and powder from the liquid;
4. Mobile design, one machine can meet the needs of multiple machines in the workshop;
5. No need to adjust the machine level;
6. During operation, the machine tool does not need to be stopped and can be filtered online at any time;
7. 0 consumables, no maintenance costs in the later stage.
