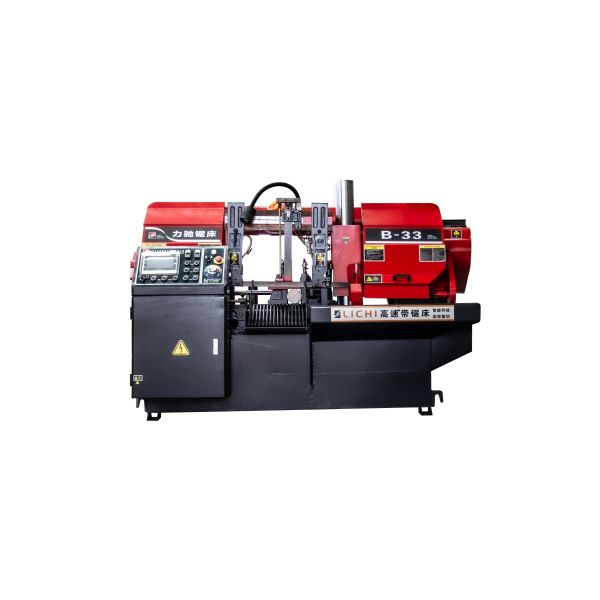

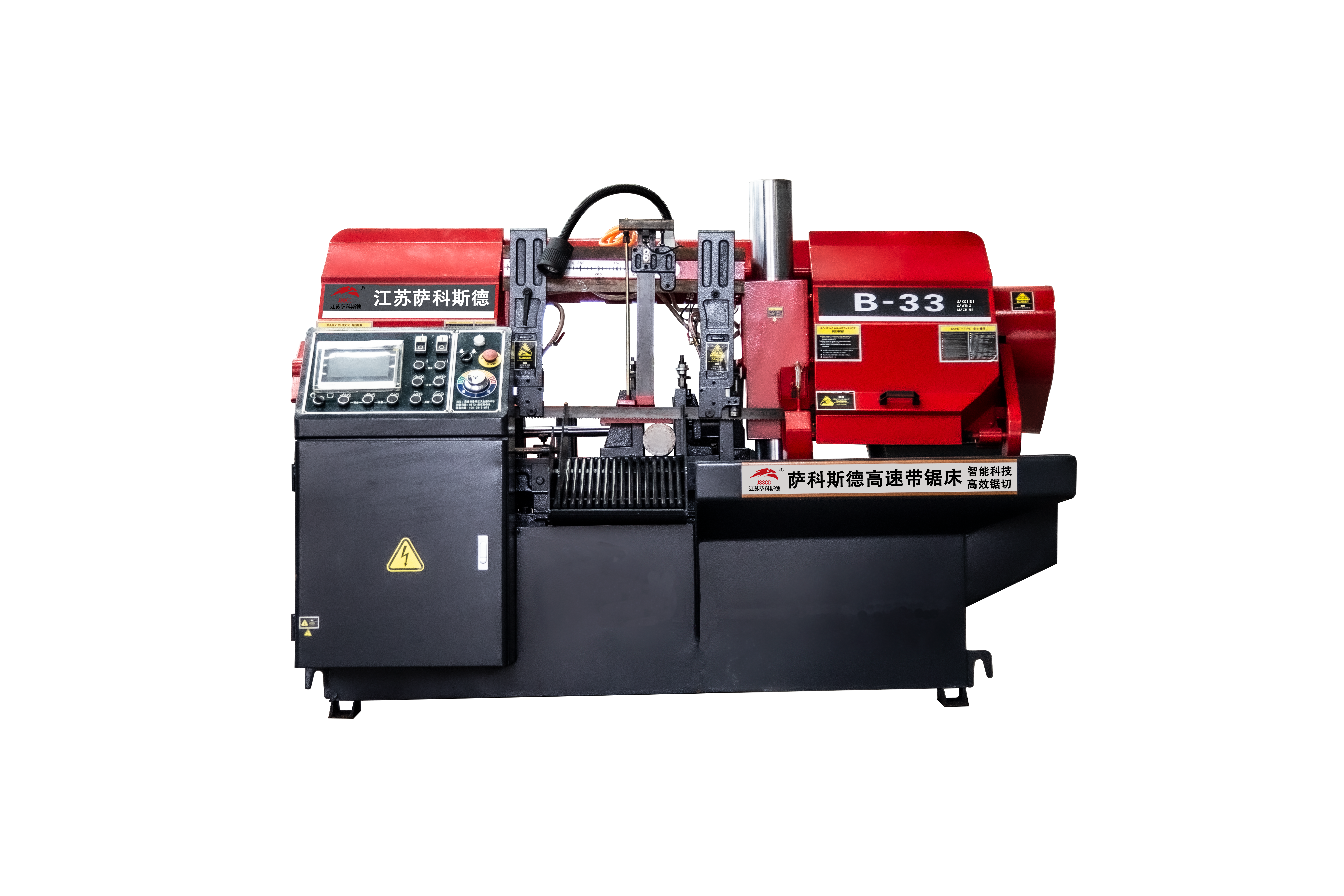

B-33 Intelligent High-Speed Metal Band Saw: High Efficiency & Energy Saving
B-33 Intelligent High-Speed Metal Band Saw: High Efficiency & Energy Saving
B-33 Intelligent High-Speed Metal Band Saw: High Efficiency & Energy Saving
B-33 Intelligent High-Speed Metal Band Saw: High Efficiency & Energy Saving
B-33 Intelligent High-Speed Metal Band Saw: High Efficiency & Energy Saving
B-33 Intelligent High-Speed Metal Band Saw: High Efficiency & Energy Saving
Specifications
Brand Name :
JSSCD
Model Number :
JSSCD-B33
Certification :
HB24Q00435R0S HB24E00258R0S HB24S00242R0S
Place of Origin :
China
MOQ :
1
Payment Terms :
FOB
Supply Ability :
500 Sets Per Year
Delivery Time :
7-60 work days
Packaging Details :
depending on the machine model
Floor Space :
2150*2100*1500
Blade Speed :
20-100
Blade Size :
4115*34*1.1
Capacity :
330
Description


The reason the B-33 is called an "intelligent" band saw lies at its core in the intelligent adaptive sawing system. This system uses "constant cutting force" as its control principle, monitoring the stress on the saw blade in real-time during the cutting process and automatically and steplessly adjusting the feed rate based on changes in material hardness and cross-section.

This means the equipment no longer requires frequent manual intervention and adjustment. Whether facing solid bars or large profiles, the B-33 consistently maintains the most efficient cutting state. According to comparisons of actual production data, the cutting speed of the B-33 can be nearly double that of traditional sawing machines, truly achieving "completing a full day's workload in just half a day".

For materials of different types (such as carbon steel, stainless steel, alloy steel, etc.), the B-33 is equipped with a 20-100 m/min variable frequency stepless speed regulation function. Operators can easily set the optimal linear speed according to the saw blade specifications and material, achieving the best balance between cutting surface finish and efficiency.

In the mass processing of materials with the same specifications, feeding accuracy is key to material savings. The B-33 boasts a single feed stroke capacity of 500mm and,凭借其 high-precision control system, achieves an impressive single feed accuracy of ±0.1mm. This accuracy far exceeds industry standards, effectively reducing waste at the material ends and truly realizing the goal of "material saving".

B-33 Intelligent High-Speed Metal Band Saw: High Efficiency & Energy Saving

B-33 Intelligent High-Speed Metal Band Saw: High Efficiency & Energy Saving

B-33 Intelligent High-Speed Metal Band Saw: High Efficiency & Energy Saving

Technical Specifications
Model Unit JSSCD-GB42100
Capacity mm φ1000
Blade Speed m/min 15-60
Blade Size mm 9700*67*1.6
Floor Space mm 3100*4500*2800
Active motor kw 11
Hydraulic motor kw 3.75
Cooling motor kw 1.2
Clamping method
Manual
Feeding method mm Pulley/Drum
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated team of technicians specializing in design, manufacturing, and sales.
Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
What is your factory acceptance test method?
You can send sample material for test cutting. We will provide detailed cutting data and a video of the machine operation for your confirmation.
What is your method of transaction?
We typically use FOB (Free On Board) transactions.
How about your delivery time?
Standard delivery is 7-60 work days after order confirmation, depending on items and quantity.
How about the payment term?
Standard terms are T/T 30% deposit, 70% balance before shipment. Other methods available upon request.
Does the band saw blade have any international certifications?
Yes, our products have obtained CE and ISO international certifications.
