GZ4232 Automatic Horizontal Cnc Band Saw Cutting Machine For Precision Cutting
GZ4232 Automatic Horizontal Cnc Band Saw Cutting Machine For Precision Cutting
GZ4232 Automatic Horizontal Cnc Band Saw Cutting Machine For Precision Cutting
GZ4232 Automatic Horizontal Cnc Band Saw Cutting Machine For Precision Cutting
GZ4232 Automatic Horizontal Cnc Band Saw Cutting Machine For Precision Cutting
GZ4232 Automatic Horizontal Cnc Band Saw Cutting Machine For Precision Cutting
Specifications
Machine Dimensions (L×W×H) :
2000 × 2100 × 1500 mm
Place of Origin :
China
MOQ :
1
Brand Name :
JSSCD
Model Number :
JSSCD-4240
Packaging Details :
depending on the machine model
Delivery Time :
7-60 work days
Max. Cutting Capacity – Round :
φ320 mm
Cutting Length Tolerance :
±0.2 mm
Certification :
HB24Q00435R0S HB24E00258R0S HB24S00242R0S
Single Feed Stroke :
400 mm (multiple feeds available)
Blade Speed :
30 / 45 / 60 / 80 m/min (4-speed)
Machine Weight :
Approx. 1.5 tons
Model :
GZ4232
Blade Size :
1.1 × 34 × 4115 mm
Description
CNC Band Saw For Metal Cutting Carbon Steel Alloy Steel Stainless Steel

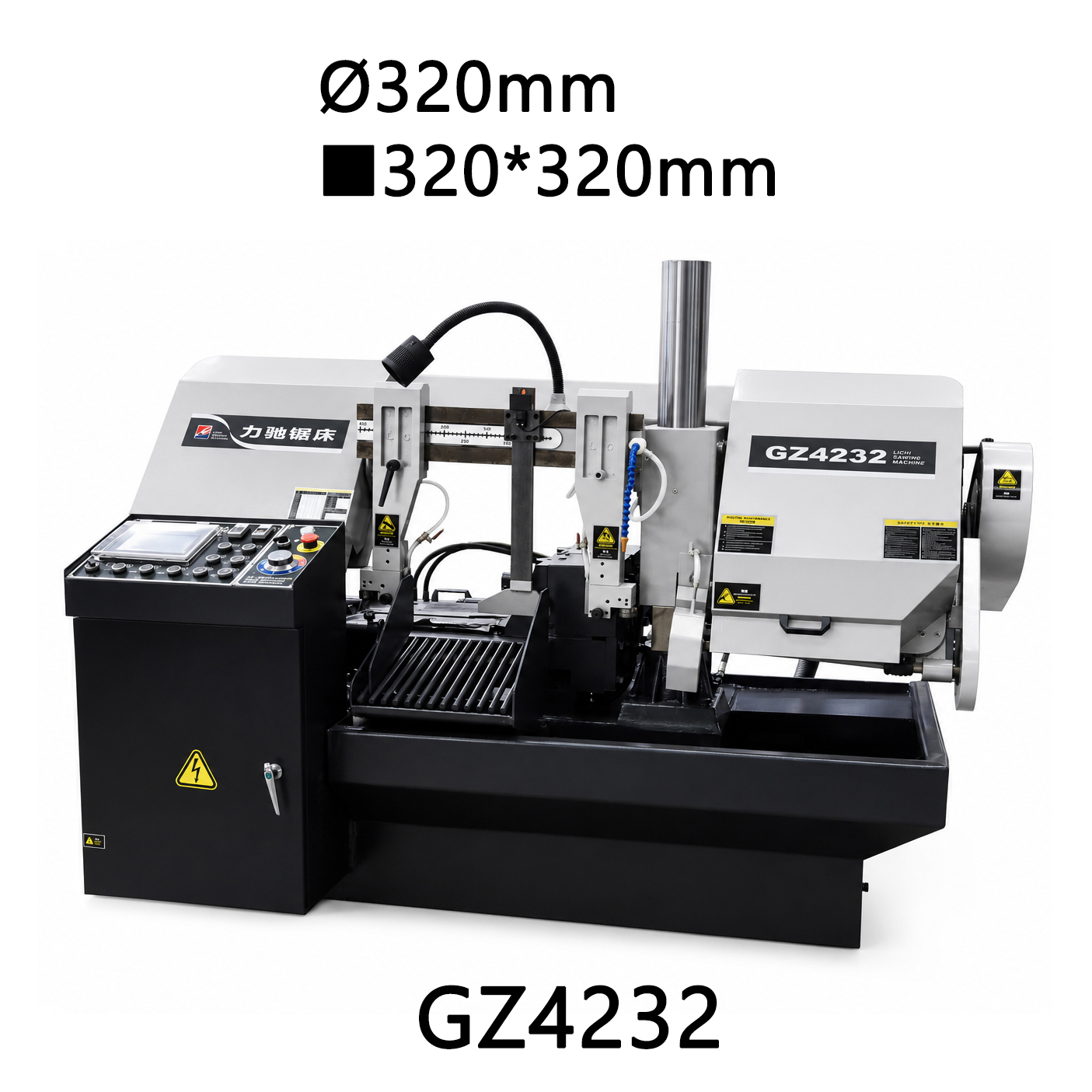

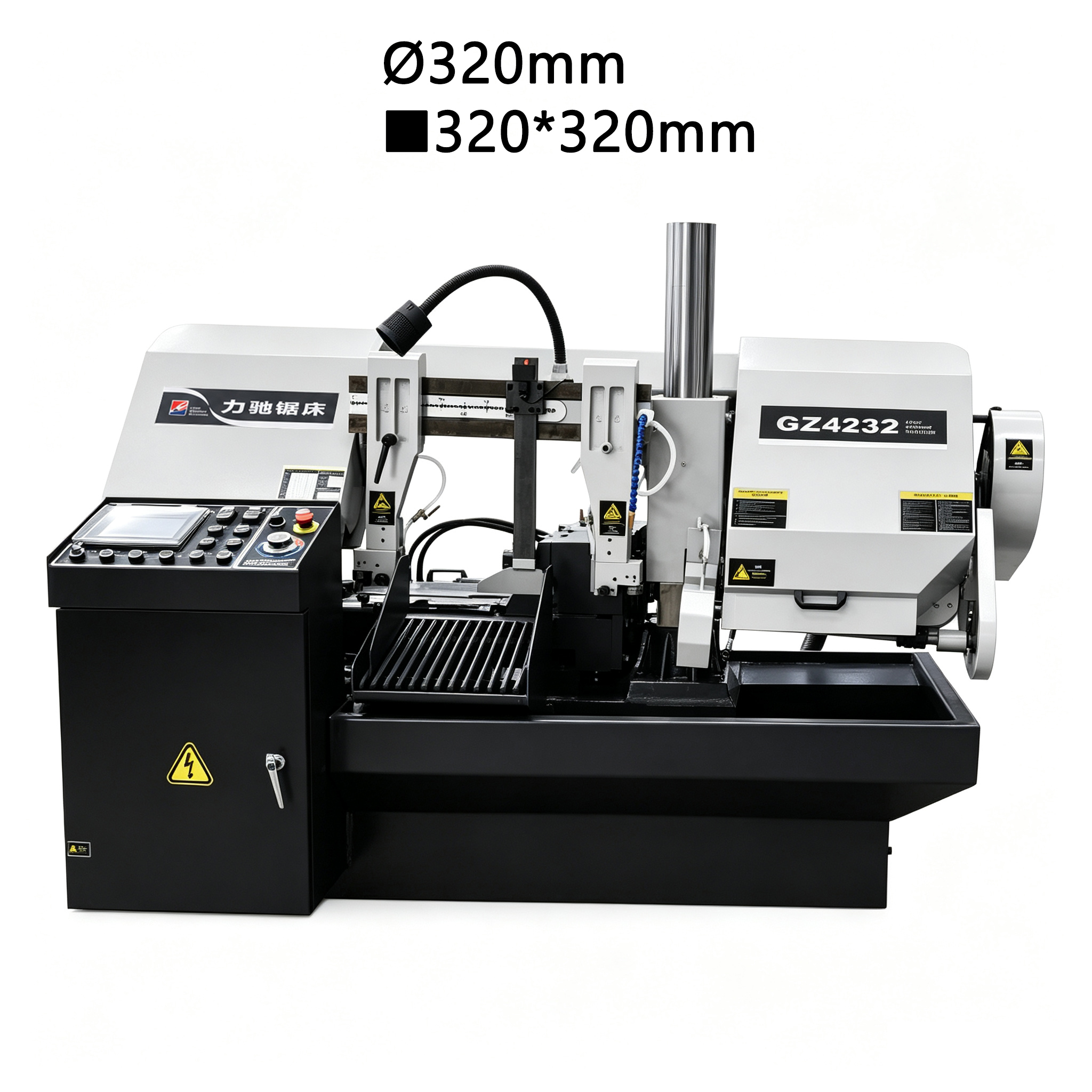

The GZ4232 CNC Automatic Horizontal Band Saw is a versatile cutting solution designed to handle a wide range of metal materials with optimized performance for each type. With a cutting capacity of φ320 mm for round materials and 320 mm for square materials, this heavy-duty band saw efficiently processes carbon steel, alloy steel, stainless steel, bearing steel, tool steel, and other ferrous metals.
What sets the GZ4232 apart is its ability to adapt to different material characteristics. Whether cutting soft low-carbon steel or hard bearing steel, the machine's four-speed blade selection (30/45/60/80 m/min) and hydraulic infinitely variable feed control allow operators to optimize cutting parameters for each specific material. The result is clean cuts, extended blade life, and consistent quality across diverse material requirements.
Key Features for Multi-Material Cutting
  • Wide Cutting Capacity - Cuts round materials up to φ320 mm and square materials up to 320 mm
  • Four-Speed Blade Selection - Offers 30/45/60/80 m/min blade speeds for optimal cutting of different metal types
  • Hydraulic Infinitely Variable Feed - Feed rate can be adjusted steplessly to match material hardness
  • High Precision Cutting - Optical ruler positioning delivers ±0.2 mm cutting length tolerance across all material types
  • Bundle Cutting Capability - Simultaneous cutting of multiple bars for high-volume production
  • PLC Control with Touch Screen - Easy parameter adjustment; save and recall settings for different materials
Technical Specifications
Parameter Specification
Hydraulic System Pressure 2 - 2.5 MPa
Power Supply 380V / 50Hz / 3Phase
Hydraulic Tank Capacity 80 L
Coolant Tank Capacity 50 L
Control System PLC + Touch Screen + Button
Feeding System Hydraulic feeding with optical ruler
Single Feed Stroke 400 mm (multiple feeds available)
Cutting Length Tolerance ±0.2 mm
GZ4232 Automatic Horizontal Cnc Band Saw Cutting Machine For Precision Cutting GZ4232 Automatic Horizontal Cnc Band Saw Cutting Machine For Precision Cutting
Applications
  • Bearing Manufacturing
  • Fastener Production
  • Automotive Parts Manufacturing
  • General Metal Processing
Frequently Asked Questions
Q1: What materials can the GZ4232 cut?
A: The GZ4232 cuts carbon steel, alloy steel, stainless steel, bearing steel (GCr15), tool steel, and other ferrous metals.
Q2: How do I adjust the machine for different materials?
A: The machine offers four blade speeds (30/45/60/80 m/min) and hydraulic infinitely variable feed control. Parameters are easily adjusted via the touch screen interface.
Q3: What is the cutting accuracy?
A: The GZ4232 delivers cutting length tolerance of ±0.2 mm across all material types.
Q4: Can the machine cut stainless steel?
A: Yes. For stainless steel, use slower blade speeds (30-45 m/min) and reduced feed rates to prevent work hardening.
Q5: Can the machine cut multiple bars at once?
A: Yes, the bundle cutting capability allows multiple bars to be cut simultaneously for high-volume production.
Q6: Can I save parameters for different materials?
A: Yes, the PLC control system allows operators to save and recall cutting parameters for different material types.
