Specifications
Brand Name :
JSSCD
Model Number :
JSSCD-4240
Certification :
HB24Q00435R0S HB24E00258R0S HB24S00242R0S
Place of Origin :
China
MOQ :
1
Delivery Time :
7-60 work days
Packaging Details :
depending on the machine model
Model :
GZ4232 CNC Automatic Band Saw
Max. Cutting Capacity – Round :
φ320 mm
Max. Cutting Capacity – Square :
320 mm
Blade Speed :
30 / 45 / 60 / 80 m/min (4-speed)
Feed Rate Adjustment :
Hydraulic infinitely variable
Workpiece Clamping :
Hand-hydraulic
Blade Size :
1.1 × 34 × 4115 mm
Machine Dimensions (L×W×H) :
Machine Dimensions (L×W×H)
Description
320mm CNC Automatic Band Saw For Bearing Fastener Automotive Parts Manufacturing

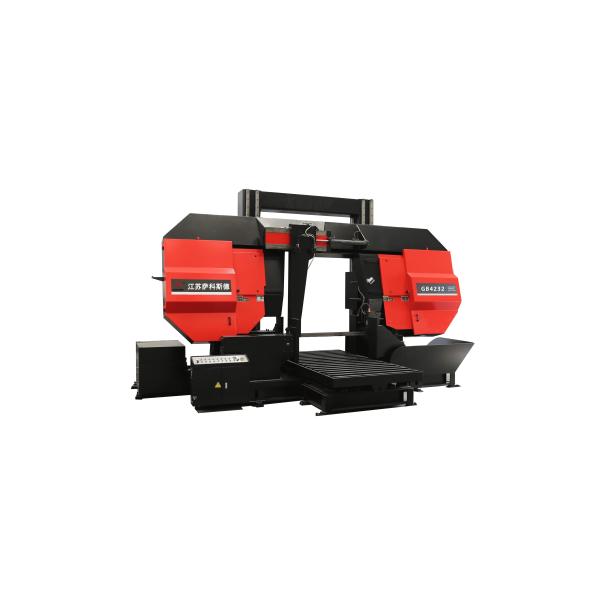

The GZ4232 CNC Automatic Horizontal Band Saw is a precision cutting solution designed to serve multiple industries with diverse metal cutting requirements. With a cutting capacity of φ320 mm for round materials and 320 mm for square materials, this heavy-duty band saw delivers reliable performance for bearing manufacturing, fastener production, automotive parts manufacturing, and general metal processing applications.
Built with a robust dual-column structure and steel plate welded frame that has undergone vibration aging treatment, the GZ4232 ensures exceptional stability and cutting accuracy. The machine features a PLC control system with color touch screen interface, offering both manual and automatic operation modes. The hydraulic feeding system with optical ruler positioning provides precise material indexing with ±0.2 mm cutting length tolerance, while the bundle cutting capability allows multiple materials to be cut simultaneously for increased productivity.
Key Features
  • Wide Cutting Capacity - Cuts round materials up to φ320 mm and square materials up to 320 mm, suitable for various industrial stock sizes
  • Four-Speed Blade Selection - Offers 30/45/60/80 m/min blade speeds for optimal cutting of different materials
  • Hydraulic Infinitely Variable Feed - Feed rate can be adjusted steplessly to match material characteristics
  • Bundle Cutting Capability - Equipped for simultaneous cutting of multiple bars, ideal for high-volume production
  • High Precision Cutting - Optical ruler positioning delivers ±0.2 mm cutting length tolerance
Technical Specifications
Parameter Specification
Power Supply 380V / 50Hz / 3Phase
Hydraulic Tank Capacity 80 L
Coolant Tank Capacity 50 L
Control System PLC + Touch Screen + Button
Feeding System Hydraulic feeding with optical ruler
Single Feed Stroke 400 mm (multiple feeds available)
Cutting Length Tolerance ±0.2 mm
Hydraulic System Pressure 2 - 2.5 MPa
320mm CNC Automatic Band Saw with φ320 mm Cutting Capacity Hydraulic Infinitely Variable Feed and Bundle Cutting Capability 320mm CNC Automatic Band Saw with φ320 mm Cutting Capacity Hydraulic Infinitely Variable Feed and Bundle Cutting Capability
Typical Workpieces
  • Axle shafts
  • Steering linkage components
  • Transmission shafts
  • Suspension components
  • Engine mounting brackets
  • Chassis hardware
