Specifications
Brand Name :
JSSCD
Model Number :
JSSCD-70
Certification :
HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Place of Origin :
China
MOQ :
1
Payment Terms :
FOB
Supply Ability :
500 Sets Per Year
Delivery Time :
7-60 work days
Packaging Details :
depending on the machine model
Circular Saw Blade :
φ285 × 1.75 × 2.0 mm
Cutting Range – Round Bar :
φ10 – φ75 mm
Cutting Range – Square Bar :
20 – 60 mm
Blade Speed :
30 – 168 rpm
Feed Method :
Push-type servo-driven feed
Feed Accuracy :
±0.05 mm
Cutting Length Tolerance :
≤ ±0.1 mm
Single Feed Length :
30 – 850 mm (multiple feeds available)
Description

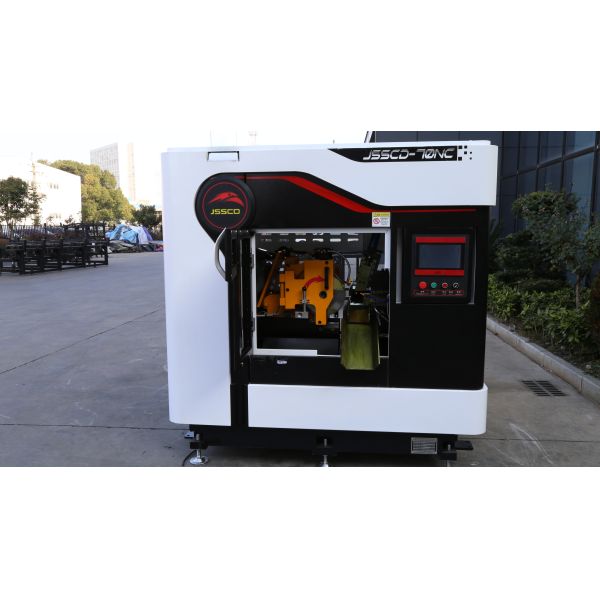

JSSCD-70NC High Speed Intelligent Circular Saw for Automotive Metal Cutting
The JSSCD-70NC High Speed Intelligent Circular Saw is a precision cutting solution specifically designed for the automotive parts manufacturing industry. Engineered to cut small diameter metal components such as shafts, pins, bolts, and other precision parts, this advanced circular saw delivers exceptional accuracy and high production efficiency. With a cutting range of φ10 mm to φ75 mm for round bars and 20 mm to 60 mm for square bars, this machine is the trusted choice for automotive parts suppliers, precision machining workshops, and Tier 1 component manufacturers seeking reliable, high-speed cutting solutions.
Key Features
  • Automotive Component Precision - Achieves cutting length tolerance of ≤ ±0.1 mm and feed accuracy of ±0.05 mm, ideal for shafts, bolts, pins, and transmission parts
  • High-Volume Production Ready - Automatic loading system and screw conveyor chip removal enable continuous operation for mass production lines

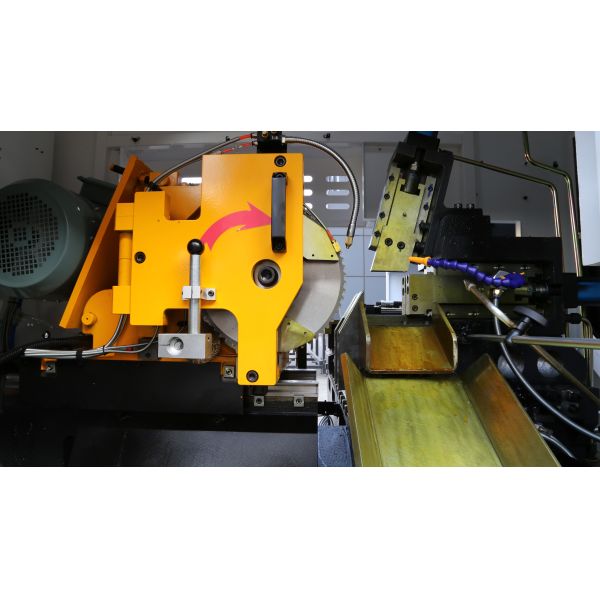

  • Servo-Driven Push Feed System - 1.5 kW AC servo motor with precision ball screw ensures stable cutting force and consistent quality for automotive materials
  • Wide Cutting Range - Covers round bars from φ10 mm to φ75 mm and square bars from 20 mm to 60 mm, accommodating common automotive component sizes
  • Robust Gearbox Design - Cast iron housing with SKF precision bearings and specially heat-treated gears deliver smooth operation and extended service life
  • MQL Mist Cooling System - Minimum quantity lubrication reduces cutting heat, extends blade life, and keeps automotive components clean for downstream processing
Technical Specifications
Specification Value
Material Hardness ≤ HRC42
Material Strength ≤ 1800 N/mm²
Main Motor Power 7.5 kW / 4P (variable frequency)
Hydraulic System Pressure 6 MPa
Hydraulic Tank Capacity 70 L
Cooling System MQL mist cooling
Chip Removal Screw conveyor
Power Supply 380V / 50Hz / 3Phase
High Speed Intelligent Circular Saw for Automotive Metal Cutting High Speed Intelligent Circular Saw for Automotive Metal Cutting
Applications in Automotive Industry
  • Transmission shafts - precision cutting for gearbox components
  • Engine bolts and fasteners - high-volume production of threaded parts
  • Steering system components - accurate cutting for steering linkages
  • Suspension parts - consistent cutting for control arms and stabilizer bars
  • Piston pins and connecting rods - tight tolerance cutting for engine components
  • Hydraulic system components - clean cutting for cylinder rods and valves
  • Chassis hardware - reliable cutting for mounting brackets and supports
Frequently Asked Questions for Automotive Manufacturers
What automotive materials can the JSSCD-70NC cut?
This circular saw is designed for cutting carbon steel, alloy steel, and stainless steel commonly used in automotive components such as shafts, bolts, and precision parts, with material hardness up to HRC42 and strength up to 1800 N/mm².
What is the cutting range for automotive parts?
The JSSCD-70NC can cut round bars from φ10 mm to φ75 mm and square bars from 20 mm to 60 mm, covering the typical size range for automotive shafts, pins, and fasteners.
How accurate is the cutting for high-volume automotive production?
The machine delivers cutting length tolerance of ≤ ±0.1 mm with feed accuracy of ±0.05 mm, ensuring consistent quality for mass production of precision automotive components.
Can the machine handle continuous production runs?
Yes, the JSSCD-70NC features an automatic loading system and screw conveyor chip removal, allowing for uninterrupted high-volume cutting suitable for automotive manufacturing lines.
What cooling system is used to ensure clean cuts?
The machine uses an MQL (Minimum Quantity Lubrication) mist cooling system, which provides effective cooling for automotive materials while keeping components clean and reducing environmental impact.
