Specifications
Place of Origin :
China
Brand Name :
JSSCD
MOQ :
1
Packaging Details :
depending on the machine model
Delivery Time :
7-60 work days
Payment Terms :
FOB
Model Number :
JSSCD-H-360B
Certification :
HB24Q00435R0S HB24E00258R0S HB24S00242R0S
Supply Ability :
500 Sets Per Year
Name :
JSSCD-H-360B Band Saw machine
Color :
Red,Black
Condition :
New
Dimension :
2200x 2500x1600
Use :
Material cutting
Cuttable material :
Carbon steel,Stainless steel,Alloy steel,Aluminum,Aluminum alloy,Copper,Copper alloy,Titanium alloy,PA
Application :
Automobile manufacturing,Aerospace,Rail transit,Mechanical equipment,Hardware tools,Ship building,Building material,Pipeline engineering,Mold manufacturing,Electronics manufacturing
Mechanical control :
Intelligent control,Automation
Special requirement :
Customized services are available
FAT :
Sample trial cutting verification
Hydraulic oil :
Reusable
Feeding precision :
±0.1mm
Description

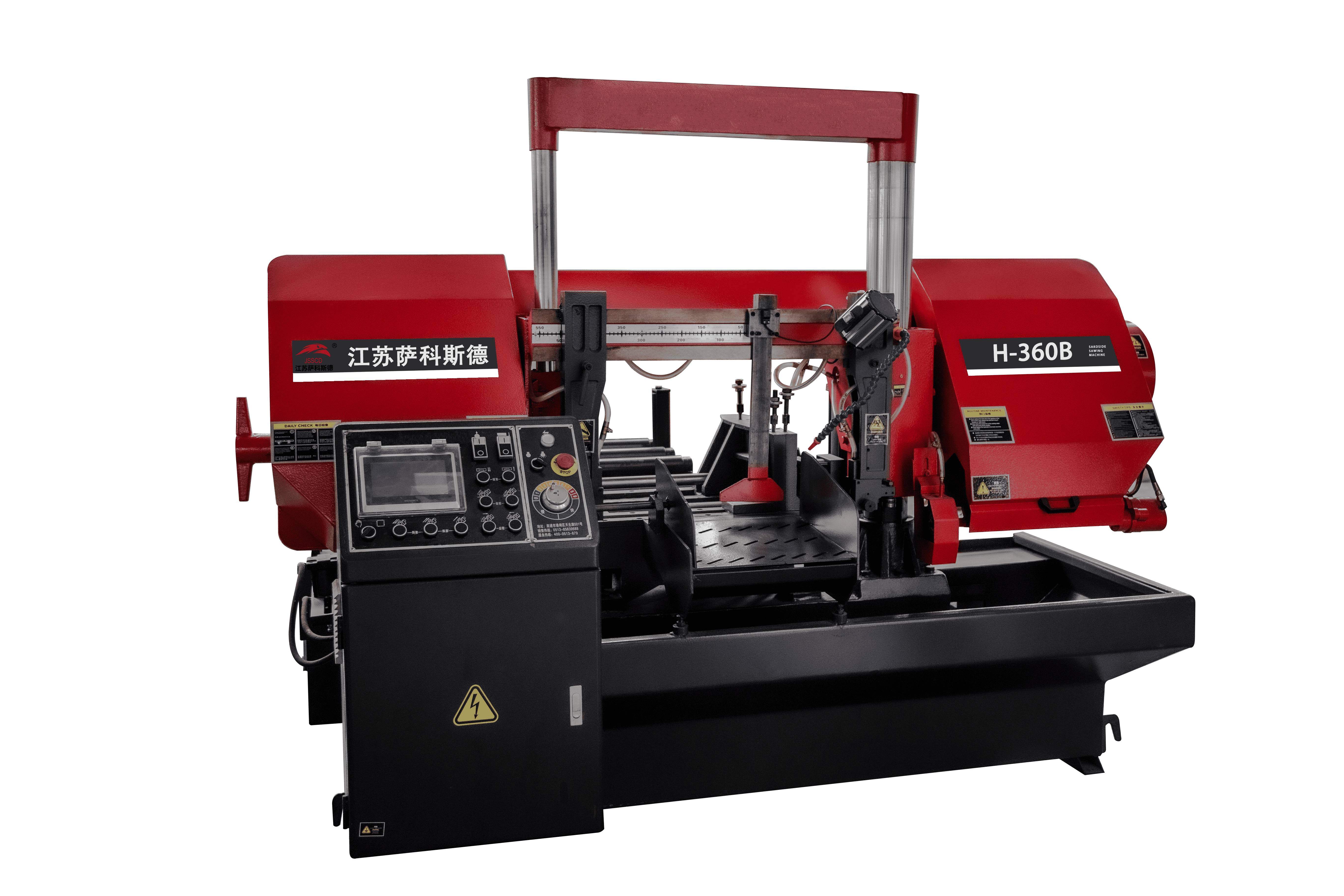

JSSCD-H-360B Band Saw machine

Description

Jiangsu Sakoside Intelligent Machinery Technology Co., LTD. is a comprehensive manufacturing enterprise integrating design and research,production and manufacturing,service and sales,mainly engaged in production of band saw machine.The band saw machines produced by our company are widely used in machinery manufacturing industry and processing industry for cutting various shapes of metal,plastics and alloy materials,etc.

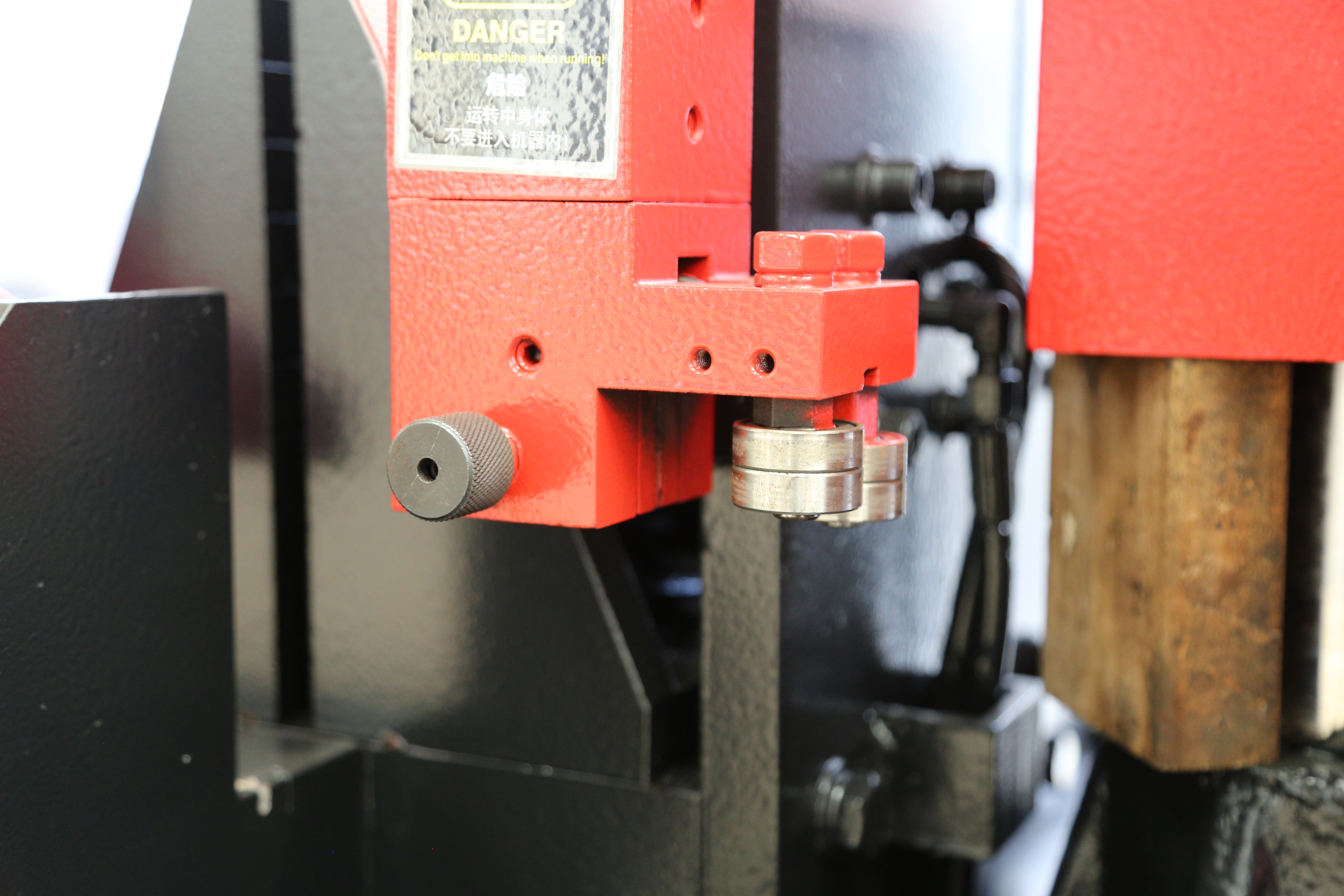

The H series main column type band saw machine is a new generation of band saw machine independently designed and developed by our company after absorbing the advantages of advanced foreign sawing machines and specifically for high-hardness alloy metals. Its main features are high speed, high efficiency and energy saving. It has increased the linear speed of the sawing machine, enhanced the strength of the transmission mechanism, and increased the power of the main drive motor. The effect is even better when used in combination with special cutting fluid and special saw bands. The performance is reliable, the appearance is beautiful, and the surface of the columns is all coated with hard chromium, which is wear-resistant, has high precision and increases the service life of the machine tool. Hydraulic lifting, the saw blade uses bearings and adjustable tungsten steel plates for guidance to ensure sawing precision.


Specification


Model Unit JSSCD-H-360B
Machine size mm 2200*2500*1600
Square bar&angle bar mm 360*360
Bar&round pipe mm φ360
Saw band speed m/min 20-100Variable frequency stepless speed regulation
Saw band size
4950*41*1.3
Main motor power kw 4
Hydraulic motor power kw 1.5
Cooling motor power kw 0.09
Hydraulic fluid capacity L 80
Cutting fluid capacity L 50
Saw band tension
Manual
Clamping method
Hydraulic
Feeding method
Hydraulic Feeding
Feeding stroke mm 600


2500mm Portable Metal Cutting Band Saw Horizontal Band Saw For Wood

2500mm Portable Metal Cutting Band Saw Horizontal Band Saw For Wood2500mm Portable Metal Cutting Band Saw Horizontal Band Saw For Wood2500mm Portable Metal Cutting Band Saw Horizontal Band Saw For Wood

FAQ

Q1: Are you a manufacturer or a trading company?

A:We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.

Q2. Where is your factory located?

A:Our factory is located in Nantong City, Jiangsu Province, China.

It will takes about 1.5 hours from Shanghai Hongqiao station to our city

Q3: What is your factory acceptance test method?

A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)

Q4:What is your method of transaction?

A:We adopt the FOB(Free ON Board) transaction.

Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.

The specific delivery time depends on the items and the quantity of your order.

Q6:How about the payment term

A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)

Q7:Does the band saw blade have any international certifications?

A:Yes,we have obtained CE,ISO international certification.
