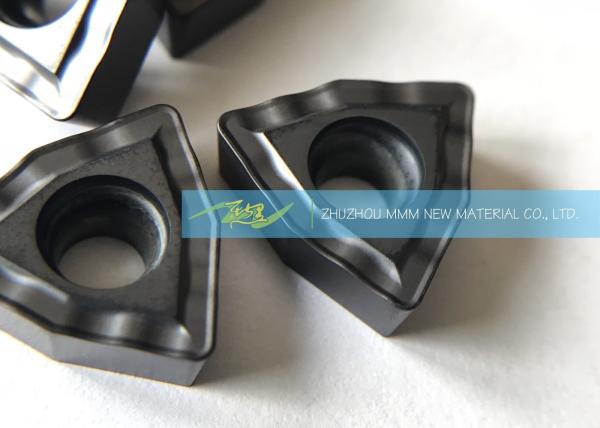

CNC Carbide Drill Inserts WCMT Triangle Serial With PG Chip Breaker
CNC Carbide Drill Inserts WCMT Triangle Serial With PG Chip Breaker
CNC Carbide Drill Inserts WCMT Triangle Serial With PG Chip Breaker
CNC Carbide Drill Inserts WCMT Triangle Serial With PG Chip Breaker
CNC Carbide Drill Inserts WCMT Triangle Serial With PG Chip Breaker
CNC Carbide Drill Inserts WCMT Triangle Serial With PG Chip Breaker
Specifications
Brand Name :
MMM
Model Number :
SPMG
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
10 PCS
Price :
USD
Payment Terms :
L/C, T/T
Supply Ability :
100,000 PCS/Month
Delivery Time :
5-10 Days
Packaging Details :
Internal Plastic Box Packaging
Material :
Cemented Carbide
Coating :
PVD
Processing Material :
General Material
Application :
Drilling
Standard :
ISO
Grade :
MP2253
Type :
SPMG
Chipbreaker :
M-Level Accuracy, Cutting Brisk
Description

CNC Carbide Drilling Inserts WCMT Triangle Serial with PG Chip Breaker

Feature Advantage:

  • Optimized cutting edge design, the cutting process is more stable and the chip breaking is better.
  • The same insert can be installed on the center edge and the outer edge, while meeting the requirements of the center and outer edge, economic and efficiency.
  • The combination of grades and chipbreaker makes all kinds of machining problems easy to solve.
  • High toughness ultra-fine cemented carbide substrate with good edge strength.

  • Grade MP2252 / MP2253:
    • Special coating process makes the surface of the insert smooth, effectively reducing friction and making chip removal smoother.
    • Unique nanostructured coating, the coating is more tightly bonded to the substrate, and has higher toughness and hardness.
    • Special surface treatment technology after coating to remove harmful stress and improve the surface quality of the blade.
    • Both the inner and outer edges can meet the physical performance requirements of the insert.

  • Types:

Type MP2252
WCMT030208-PG ★
WCMT040208-PG ★
WCMT050308-PG ★
WCMT06T308-PG ★
WCMT080412-PG ★

Recommended Cutting Parameters:

  • The following cutting parameters are the recommended range values, which should be adjusted as appropriate after considering the following factors:
  • Specific physical properties of the material being processed
  • Power and rigidity of the machine tool
  • Clamping rigidity of tools and workpieces
  • Balance between tool life and machining efficiency

ISO

Material

Hardness (HB)

Diameter

(mm)

Feed

(mm/r)

Speed

(m/min)

P

Carbon Steel

80-200

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.09

0.06 - 0.10

0.07 - 0.11

0.08 - 0.12

170 - 240

P

Low Alloy Steel

150-260

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 -0.12

0.06 - 0.14

0.08 - 0.16

0.10 - 0.20

140 - 220

P

High Alloy Steel

150-320

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.12

0.06 - 0.16

0.08 - 0.18

0.10 - 0.22

120 - 180

P

Cast Steel

180-250

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.08

0.05 - 008

0.06 - 0.10

0.07 - 0.11

0.07 - 0.12

120 - 170

M

Ferritic Stainless Steel

Martensitic Stainless Steel

150-270

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.12

0.06 - 0.16

0.08 - 0.18

0.10 - 0.22

110 - 230

M

Austenitic Stainless Steel

150-275

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.11

0.06 - 0.13

0.08 - 0.14

0.10 - 0.16

110 - 220

K

Malleable Cast Iron

150-230

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.10

0.05 - 0.14

0.08 - 0.16

0.10 - 0.20

0.12 - 0.24

120 - 220

K

Gray Cast Iron

150-220

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.10

0.05 - 0.14

0.08 - 0.16

0.10 - 0.20

0.12 - 0.24

170 - 240

K

Ductile Iron

160-250

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.12

0.06 - 0.14

0.08 - 0.16

0.10 - 0.20

130 - 200
