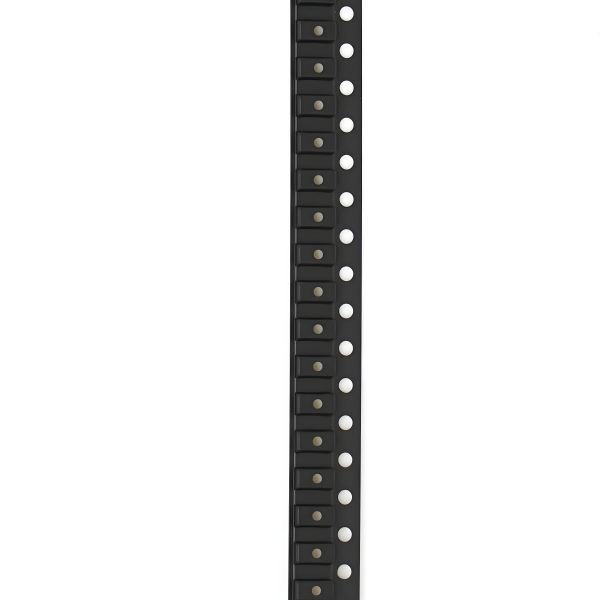

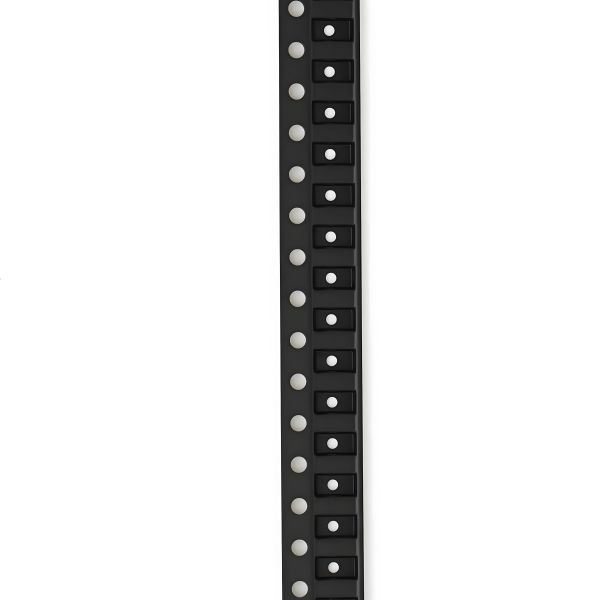

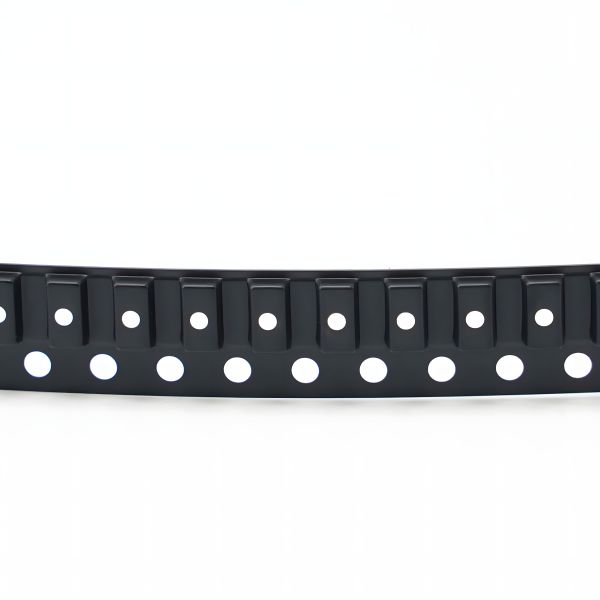

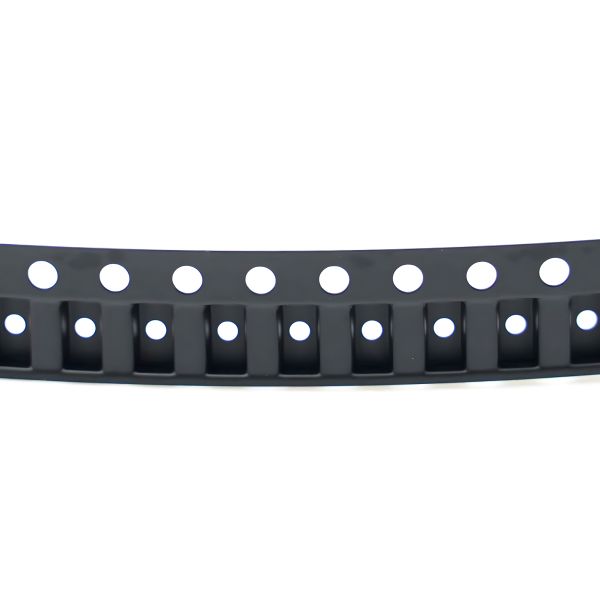

The 3920 Thick Black PS Anti Static Carrier Tape is designed for electronic components that require more pocket depth than low profile packaging solutions. Made from black PS anti static material, this embossed carrier tape supports component storage, tape and reel packaging, long distance transportation protection, and SMT automatic pick and place feeding.

This product uses a 24 * 0.3 * 400 specification, with pocket dimensions of A0 5.7 mm, B0 10.5 mm, and K0 2.3 mm. Compared with the thin version of the 3920 carrier tape, this thick version provides a deeper cavity, making it more suitable for components with higher body thickness or parts that need additional vertical clearance during packaging. The deeper pocket helps reduce pressure on the component body and improves stability during winding, shipment, and feeding.

The main advantage of the 3920 Thick carrier tape is its balanced pocket size and deeper K0 structure. The black PS material provides good rigidity and forming stability, helping the tape keep a consistent pocket shape during production and use. Its anti static performance makes it suitable for electronic component packaging environments where electrostatic control is important.

The black appearance improves visual contrast during inspection and loading, while the embossed pocket design keeps each component separated and positioned. This helps reduce component contact, movement, and possible handling damage. The 24 mm width also provides a stable carrier base for medium size electronic parts.

This product is suitable for electronic component packaging, SMT automatic feeding, component sorting, warehouse storage, and tape and reel packaging. It is especially useful when the component height is greater than what a shallow pocket carrier tape can support.

GuangDong Zhongzai Electronic Technology Co., Ltd. can customize carrier tape according to component samples, drawings, material requirements, and reel packaging standards.
