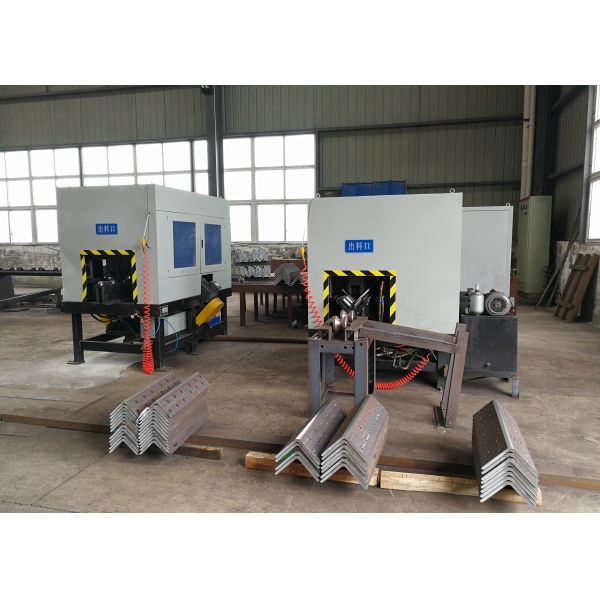

Used For Steel Structure Construction Sector Cnc Angle Steel Back Shovel Machine 7.5KW Power

Application Industry:

The machine is designed for angle back milling applications and is widely utilized in the angle steel tower industry, electric power fitting manufacturing, and steel structure construction sectors, among other industrial fields.

Product Parameter Configuration:

Product Features:

1. Outfitted with an automatic continuous feeding mechanism and limitless processing capacity, substantially enhancing production efficiency while reducing manufacturing expenses.

2. Utilizes a PLC-driven control platform capable of delivering real-time operational insights and status tracking, ensuring streamlined and effective management.

3. NC programming control and parameter configuration ensure exceptional machining accuracy and precision of the workpiece.

4. Incorporates a hydraulic material clamping mechanism that guarantees stable operation while maintaining uniform processing precision throughout production.

5. Engineered for user-friendly and efficient operation, delivering dependable performance, enhanced operational safety, and elevated production throughput.

Workpiece process:

1. Adjust the back-off depth by operating the handwheel. Based on the varying dimensions of the angle steel, perform the necessary adjustments accordingly and secure the setting.

2. Activate the back-off spindle by pressing the spindle start button.

3. Initiate the feeding process by pressing the spindle feed button.

4. Place the angle steel onto the feeding rack, which, driven by the rack’s actuator, facilitates automatic feeding and production.

5. Upon completion of processing, the finished product is automatically discharged from the feeding frame.

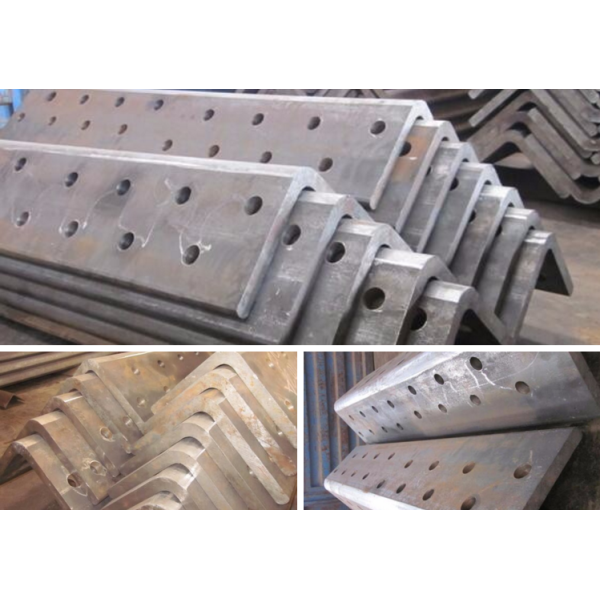

The machine is purpose-built for angle back milling applications, providing accurate and highly efficient machining of angle steel materials. The finished workpieces exhibit superior surface quality, precise dimensional tolerances, and clearly defined edge contours, making them highly suitable for structural manufacturing and various industrial uses. Sample components processed by this equipment effectively showcase its exceptional machining accuracy, stable production quality, and ability to perform sophisticated back-milling operations, offering customers a dependable benchmark for evaluating the machine’s operational capability and production performance.
