2-5mm Processing Thickness CNC Flat Iron Hoop Forming Machine 30mm Min. Diameter
2-5mm Processing Thickness CNC Flat Iron Hoop Forming Machine 30mm Min. Diameter
2-5mm Processing Thickness CNC Flat Iron Hoop Forming Machine 30mm Min. Diameter
2-5mm Processing Thickness CNC Flat Iron Hoop Forming Machine 30mm Min. Diameter
2-5mm Processing Thickness CNC Flat Iron Hoop Forming Machine 30mm Min. Diameter
2-5mm Processing Thickness CNC Flat Iron Hoop Forming Machine 30mm Min. Diameter
Specifications
Brand Name :
Auten
Payment Terms :
L/C, T/T
Packaging Details :
Wooden case
Place of Origin :
China
Supply Ability :
200 sets/year
Price :
Negotiable
Model Number :
FF50
MOQ :
1 set
Delivery Time :
60 days
Certification :
ISO9001
Description

2-5mm Processing Thickness CNC Flat Iron Hoop Forming Machine 30mm Min. Diameter

Product Application:

Mainly used for clamp processing in industries such as transportation, power and seismic bracing.

Product Parameter Configuration Table:

Model FF50-5
Processing width 20-50mm
Processing thickness 2-5mm
Min. diameter 30mm
Max. diameter 1500mm
Max. feeding speed 55m/min
Max. bending speed 800°/sec
Punching cylinder 125*30
Feeding servo motor 3kw/1 unit
Cut-off cylinder 150*50
Bending servo motor 3kw/1 unit
Hydraulic system Huade
Telescopic servo motor 1kw
Electrical control system Weichuang / Xinjie
Hydraulic power station motor 7.5kw
Mold Material DC53
Feed Roller Material Cr12MoV
Dimensions 2.2×1.6×1.8m

2-5mm Processing Thickness CNC Flat Iron Hoop Forming Machine 30mm Min. Diameter

Technical advantages:

1. The CNC panel is easy to operate and has a full range of functions.

2-5mm Processing Thickness CNC Flat Iron Hoop Forming Machine 30mm Min. Diameter

2. The servo motors offer high precision and accurate dimensions.

2-5mm Processing Thickness CNC Flat Iron Hoop Forming Machine 30mm Min. Diameter

3. Customization of various flat iron models is available to meet production needs.

2-5mm Processing Thickness CNC Flat Iron Hoop Forming Machine 30mm Min. Diameter

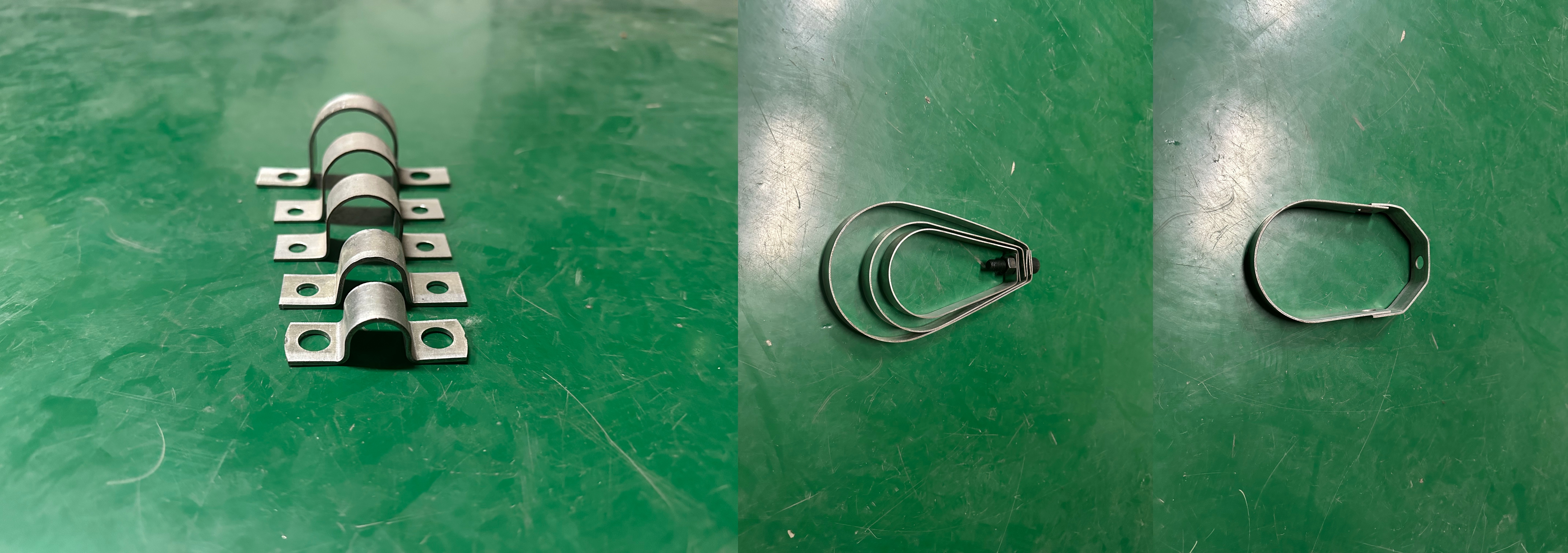

Products include U-bolts, M-type clamps,suspension clamps for seismic bracing systems,and more.

2-5mm Processing Thickness CNC Flat Iron Hoop Forming Machine 30mm Min. Diameter
