37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes
37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes
37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes
37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes
37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes
37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes
Specifications
Price :
Negotiable
Packaging Details :
Wooden case
Light resistance :
180000Lux
Visual accuracy :
≤0.5mm
Certification :
ISO9001
Power supply :
Three-phase five-wire system, 3×380V±10%/50HZ
Arm span :
2010mm
Payment Terms :
L/C, T/T
Near field of view :
461×255mm@300mm
Delivery Time :
60 days
Repeatability :
±0.07mm
Supply Ability :
200 sets/year
Load capacity :
12kg
Degrees of freedom :
7 axis
MOQ :
1 set
Place of Origin :
China
Brand Name :
Auten
Description

37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes

Product Parameters:

Category Content Main Technical Parameters Remark
Robot performance Arm span 2010mm —
Repeatability ±0.07mm —
Load capacity 12kg —
Visual performance Near field of view 461×255mm@300mm —
Far field of view 1150×660mm@800mm —
Z-axis single-point repeatability 0.015mm@300mm0.1mm@800mm —
Visual accuracy ≤0.5mm —
Full frame acquisition time 0.2-0.8s(Full frame rate Max:6FPS) —
Light resistance 180000Lux —
Overall parameters Power supply Three-phase five-wire system 3×380v±10%/50HZ —
Degrees of freedom Adapt to workpiece conditions —
Number of robots configured single unit single unit two units Four units Depends on the design
Total power consumption 34kw 37kw 68kw 136kw Corresponding to different configuration quantities
Floor area (4m + track length) × (3 + rail spacing) × 3.5m —

37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes

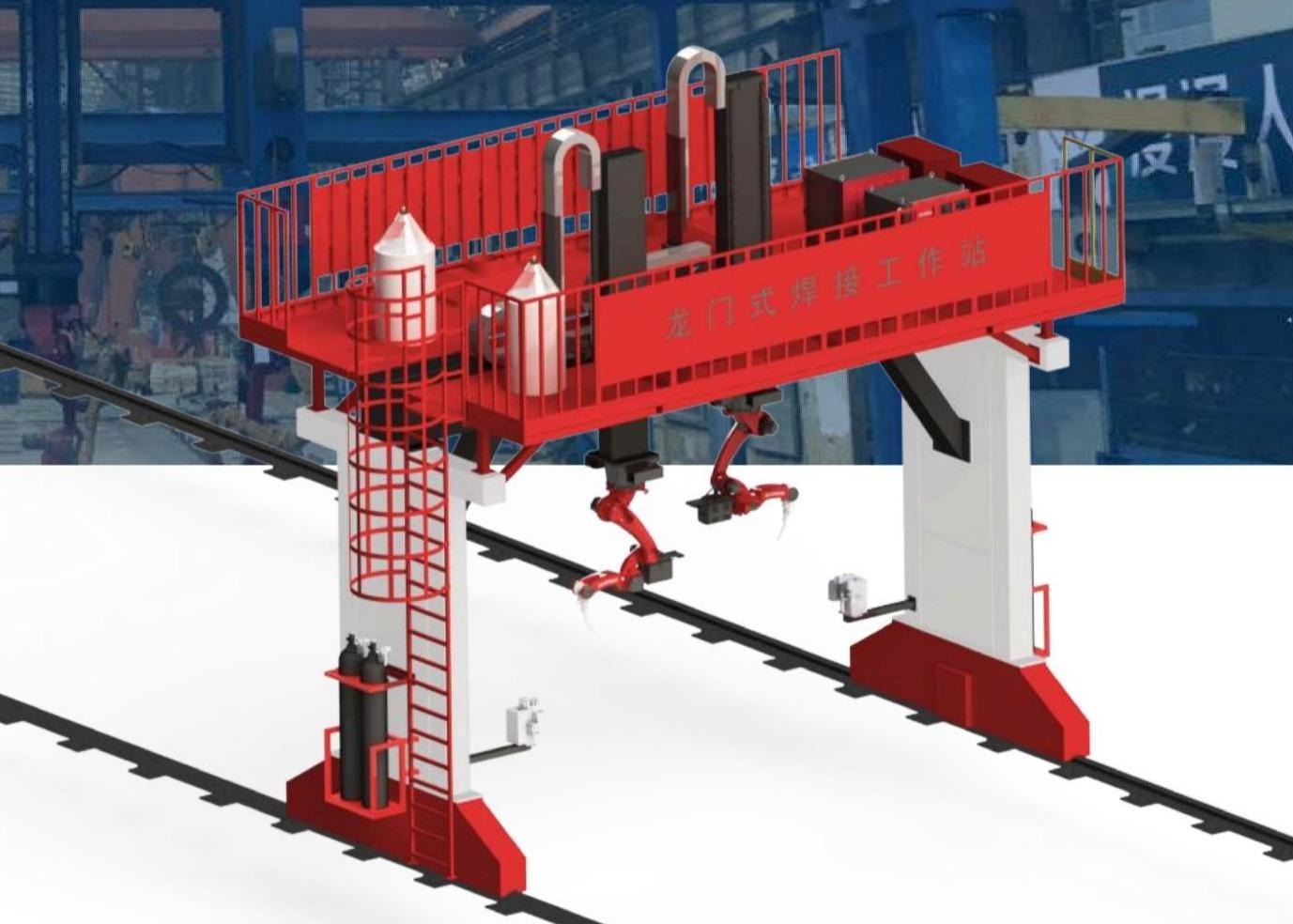

This gantry-mounted welding robot adopts an inverted installation configuration, allowing multiple robotic units to operate cooperatively along the gantry beam for coordinated welding tasks.

37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes

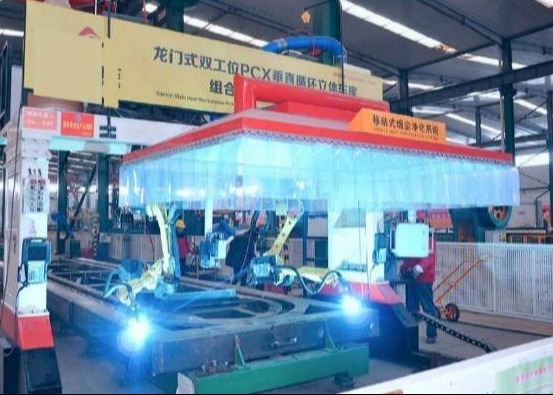

The system supports synchronized X-, Y-, and Z-axis motion together with optional external extension axes, providing excellent flexibility for multi-angle welding of large and complex workpieces, including shipbuilding assemblies and heavy structural components. Depending on production requirements, the equipment can be configured as a single robotic unit, a dual-robot cell, or a four-robot coordinated system, substantially increasing welding productivity and manufacturing efficiency. By combining servo-driven zero-backlash reducers with a programming-free intelligent control platform, the robot automatically generates optimized welding paths and performs real-time seam tracking, ensuring accurate torch positioning, consistent weld trajectories, and reliable welding quality throughout the production process.

37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes
