34KW Total Power Consumption CNC Inverted Rail Welding Robot For Steel Weld
34KW Total Power Consumption CNC Inverted Rail Welding Robot For Steel Weld
34KW Total Power Consumption CNC Inverted Rail Welding Robot For Steel Weld
34KW Total Power Consumption CNC Inverted Rail Welding Robot For Steel Weld
34KW Total Power Consumption CNC Inverted Rail Welding Robot For Steel Weld
34KW Total Power Consumption CNC Inverted Rail Welding Robot For Steel Weld
Specifications
Price :
Negotiable
Packaging Details :
Wooden case
Light resistance :
180000Lux
Arm span :
2010mm
Certification :
ISO9001
Power supply :
Three-phase five-wire system, 3×380V±10%/50HZ
Visual accuracy :
≤0.5mm
Supply Ability :
200 sets/year
Load capacity :
12kg
Degrees of freedom :
7/8/9 axis
Payment Terms :
L/C, T/T
Near field of view :
461×255mm@300mm
Delivery Time :
60 days
Repeatability :
±0.07mm
MOQ :
1 set
Place of Origin :
China
Brand Name :
Auten
Description

34KW Total Power Consumption CNC Inverted Rail Welding Robot For Steel Weld

Product Parameters:

Category Content Main Technical Parameters Remark
Robot performance Arm span 2010mm —
Repeatability ±0.07mm —
Load capacity 12kg —
Visual performance Near field of view 461×255mm@300mm —
Far field of view 1150×660mm@800mm —
Z-axis single-point repeatability 0.015mm @300mm0.1mm @800mm —
Visual accuracy ≤0.5mm —
Full frame acquisition time 0.2-0.8s(Full frame rate Max:6FPS) —
Light resistance 180000Lux —
Overall parameters Power supply

Three-phase five-wire system

3×380v±10%/50HZ

 —
Degrees of freedom 7-axis 8-axis 9-axis —
Number of robots configured single unit single unit single unit Depends on the design
Total power consumption 34kw 37kw 55kw —
Floor area (4m + track length) × (3 + rail spacing) × 3.5m —

34KW Total Power Consumption CNC Inverted Rail Welding Robot For Steel Weld

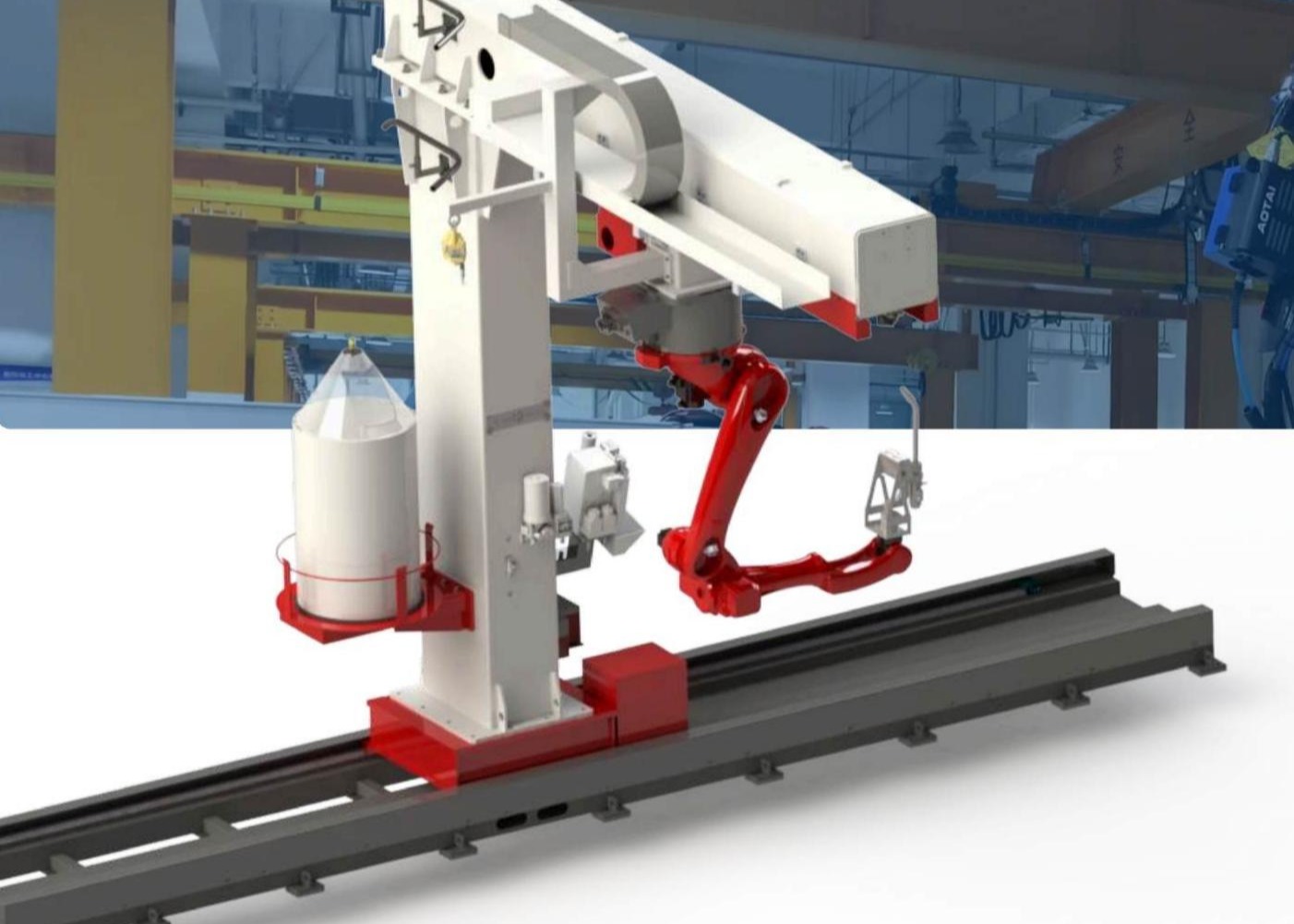

This robotic system adopts an inverted track configuration, utilizing overhead or suspended installation to achieve precise positioning control while substantially extending the effective operating range. It is suitable for processing workpieces with a maximum width of ≤3 m and a maximum height of ≤500 mm, including bridge deck components and similar structural parts.

34KW Total Power Consumption CNC Inverted Rail Welding Robot For Steel Weld

The system can be further configured with Y- and Z-axis extensions to create a nine-axis cantilever robotic platform, providing an expanded machining envelope and greater operational flexibility. When integrated with multiple 3D vision systems, the equipment can simultaneously identify and model multiple workpieces from a single captured image, enabling efficient workpiece recognition and intelligent automated processing.

34KW Total Power Consumption CNC Inverted Rail Welding Robot For Steel Weld
