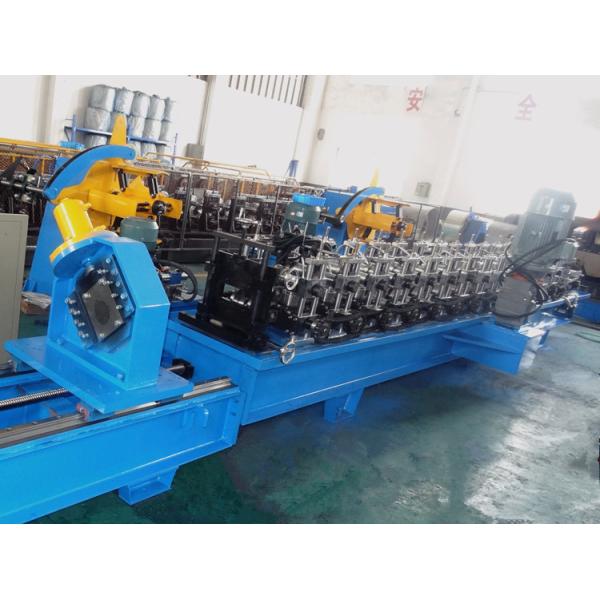

High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
Specifications
Brand Name :
Believe Industry Company
Model Number :
Lip Channel Roll Forming Machine
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
30% TT in advance, 70% TT before shipment
Delivery Time :
60 days
Packaging Details :
Standard Seaworthy Packing
Forming Steps :
14 Steps
Forming Speed :
30-40m/min
Forming Power :
18
Description

30-40m/min Flying Cutoff C-section Lip Channel Roll Forming Machine

Machine Advantages:

1. High Machine Speed: 30-40m/min

2. High Production: fully automatic, non-stop cutoff; 15-20 pcs/min (when cutting length is 2m)

Machine Layout:

1. Work Direction: left--->right

2. Work Process: decoiling--->material leveling--->roll forming--->straightening--->flying cutting--->final product

High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use

Main Machine Components

> 3Ton Hydraulic Decoiler

High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use

1 unit

> Roll Forming Mill

a. Leveling Device

b. Roll Forming Unit

c. Turkey Straightener

d. Chain Drive System

e. Cooling System

High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use

High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use

1 unit

> Flying Cutoff Unit

High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use

1 unit

> Final Product Support Table

High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use

2 units

> Electric Control System

High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use

1 unit

> Hydraulic Station

High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use

2 units

Main Machine Technical Parameters

1. Foming Steps/ Forming Stations: 14 steps / 14 stations

2. Forming Speed: 30-40m/min

3. Main Motor Power: 18.5KW

4. Control System: PLC control system

5. Shaft Material: 40Cr, φ70mm solid shaft

6. Roll Material: No. 45 Steel, quenching and tempering, roll surface plated with 0.05mm chrome

7. Cutting Type: servo flying cutoff, hydraulic mold cutting type

8. Servo Motor Power: 3.7KW

9. Cutting Power: 4KW

10. Cutting Blade Material: Cr12Mov, HRC58-62

High Speed Stud And Track Roll Forming Machine 1.5 - 2.5mm Thickness Material Use
