C Z Purlin Interchangeable Custom Roll Forming Machine Gear Box Driven Type
C Z Purlin Interchangeable Custom Roll Forming Machine Gear Box Driven Type
Specifications
Brand Name :
Beli
Model Number :
C100-350
Place of Origin :
Wuxi, China
MOQ :
1
Price :
USD 80000 / set
Supply Ability :
20 sets/ Month
Delivery Time :
45 days
Packaging Details :
Nude Packing (roller surface covered plastic film)
Certification :
CE
Payment Terms :
T/T, L/C
Total Power :
29.5KW
Cutting Type :
Post Hydraulic Cutting
Description

Gear Box Driven Type C/Z Purlin Interchangeable Roll Forming Machine, Higher quality.

Description:

This C/Z Purlin Interchangeable Roll Forming Machine can produce C-shape and Z-shape purlins. Main components of this machine are decoiler, guiding and leveling device, pre-punching device, roll former, hydraulic cutting device, collecting table, hydraulic station, etc.

Drawing and Measurements

C Z Purlin Interchangeable Custom Roll Forming Machine Gear Box Driven Type

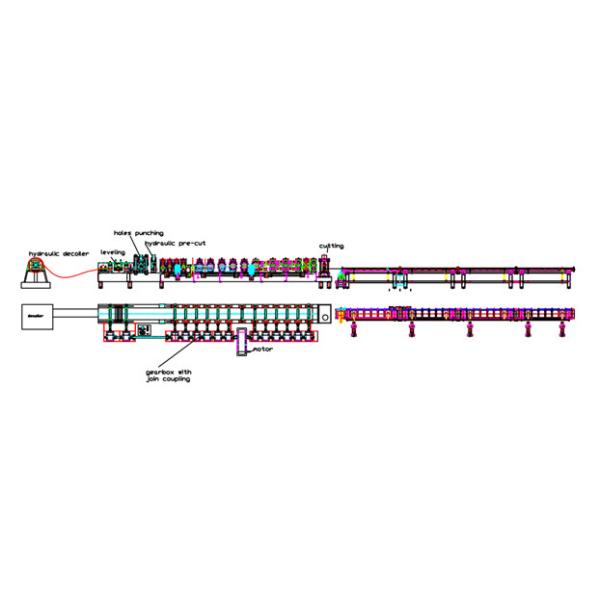

Layout

C Z Purlin Interchangeable Custom Roll Forming Machine Gear Box Driven Type

Technical Parameters - C/Z Purlin Roll Forming Machine
Raw Material Carbon Steel, Galvanized Steel, Q235
Material Thickness 1.5-3.0mm
Material Width Depend on specific profile
Diameter of Shaft 76mm
Material of Shaft 45# steel
Material of Rolls

GCr15 Over quenching HRC 58-62°
Main Power 22KW
Forming Speed 15-20m/min
Forming Station 16 stations
Cutting Type Hydraulic cutting
Cutting Blade

Cr12 Mov
