PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine
PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine
PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine
PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine
PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine
PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine
Specifications
Brand Name :
BELIEVE INDUSTRY COMPANY
Model Number :
BELI 65-220-880
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
30% TT as deposite, 70% TT before shipping
Delivery Time :
55 to 60 days
Packaging Details :
Standard Seaworthy Packing
Applicable Material :
Galvanized Steel Coils
Forming Steps :
26 Steps
Main Power :
22kw
Control System :
PLC Control System
Other Name :
Steel Floor Deck Roll Forming Line
Usage And Function :
For steel building construction industry
Description

Automatic Metal Floor Deck Roll Forming Machine With PLC Control System

Brief Description

This metal roll forming machine is used to produce floor decking sheets used as the flooring system for steel constructions. Main material can be roll formed are 0.8-1.5mm thick galvanized steel coils. With PLC control system, whole line is of high automation and easy operation.

Our Advantages

  • Strict quality control on raw material selecting
  • Mature Machine Design: over 15 years' experience in machine designing and building
  • Rollers & Shafts Processing: CNC machining + heat treatment + surface chrome plate
  • Experienced and professional teams in machine assembling and testing
  • Machine Delivery: deliver the machine on time
  • After-sale Serive Team: our technicians have been to more than 50 countries and regions to serve machine

Most Essential Technical Parameters

Material Information
1. Material To Be Roll Formed Galvanized steel coils
2. Material Thickness 0.8-1.5mm ( we also have machine for 2.0mm or 3.0mm thick material)
3. Feeding Width According to each profile
Main Technical Parameters
1. Roller Stations 26 forming stations according to clients' profile
2. Main Power 22kw
3. Drive System chain drive
4. Control System PLC control system
5. Hydraulic Power 5.5kw for cutting
6. Roller Material GCr15, heat treatment and surface with chrome plated
7. Shaft Material 40Cr, heat treatment and surface with chrome plated
8. Cutting Blade Material Cr12 Mov, HRC58-62

Steel Floor Deck Machine Layout

PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine

1. Machine Components: 5Ton decoiler + roll forming unit + cutting device + final product support table

2. Work Process: decoiling--->feeding & guiding--->roll forming--->cutting--->final product

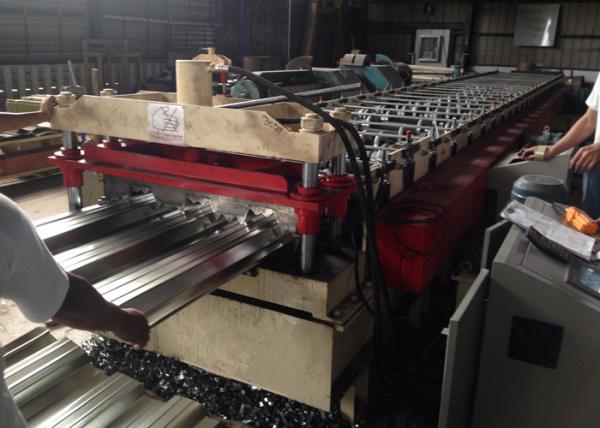

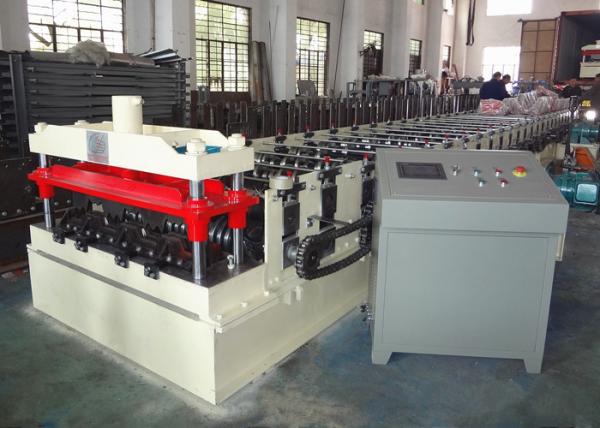

More Machine Pictures For Reference

PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine

PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine
