FDX100 High - Performance Dual - Spindle Inclined - Bed Machine For ∅20 - ∅100mm Machining

Specifications and Technical Parameters
ltem unit FDX100
Processing dia range mm ∅20~∅100
Processing lenght range mm 300~3000
Milling depth MAX mm 5
Center drill dia range mm A2~B10
Milling spinde speed r/min 300~800
Drilling spinde speed r/min 600~1600
Power of the main motor KW 5.5
Overall dimensions(LxWxH} mm 5900x2100x2100
Machine weight kg 11000
Working Accuracy
Milling length consistency mm ±0.1
Center hole depth consistency mm ≤0.05
Face runout of the Center hole mm <0.05/∅100
Center hole surface roughness Ra 3.2
Optional function parameters
Turning dia MAX mm ∅100
Effective length of the package mm 20~30
Rigid tapping M24

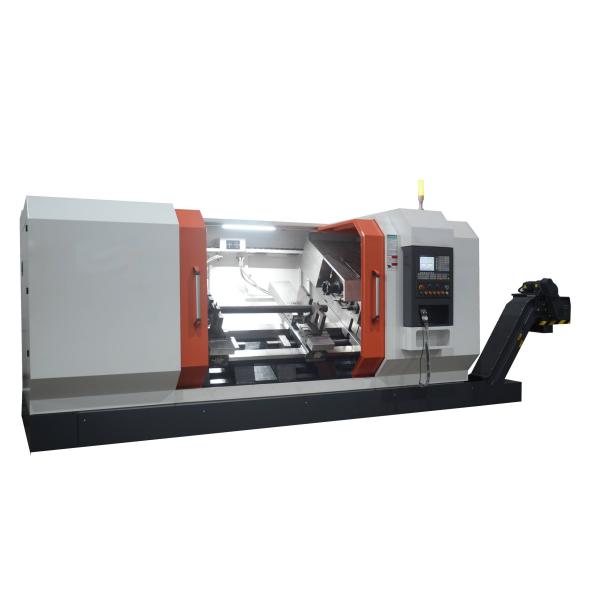

FDX100 Dual - Spindle Inclined - Bed Milling and Drilling Machine

1. Product Introduction

The FDX100 is an advanced dual - spindle inclined - bed milling and drilling machine. Engineered for versatility and precision, it’s a reliable choice for large - scale manufacturing.

2. Product Features

Processing Flexibility

  • Diameter & Length: It can process workpieces with diameters from ∅20 to ∅100mm. The optional turning feature supports a maximum diameter of ∅100mm. With a length range of 300 - 3000mm, it’s suitable for long - shaft workpieces. The effective package length is 20 - 30mm.

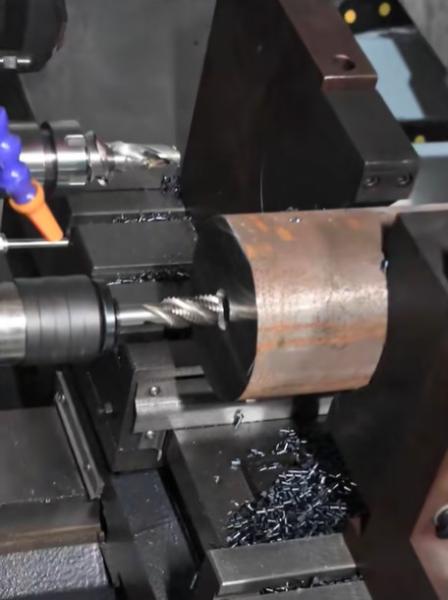

  • Milling & Drilling: Maximum milling depth is 5mm. The milling spindle speed ranges from 300 - 800 r/min, while the drilling spindle speed varies from 600 - 1600 r/min. Center drill diameter ranges from A2 - B10, and it supports rigid tapping up to M24.

Power and Precision

  • Power: Equipped with a 5.5 - KW main motor, it delivers stable performance.
  • Precision: Milling length consistency is ±0.1mm. Center hole depth consistency is ≤0.05mm, face runout within <0.05/∅100, and surface roughness Ra 3.2.

Structural Advantage

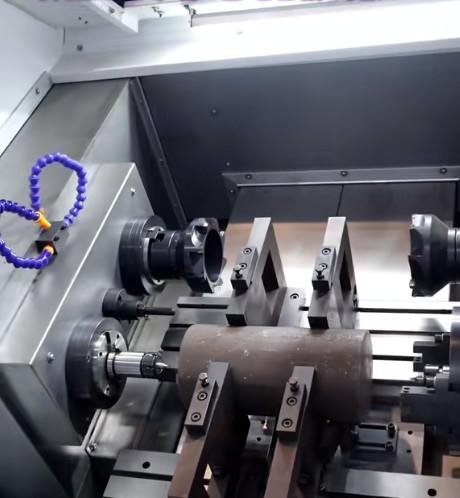

  • Inclined - Bed Design: This design ensures excellent chip evacuation, and dual - spindle configuration enables simultaneous operations, boosting productivity.

3. Product Applications

Energy Sector

  • For manufacturing long shafts and components used in turbines. Its long - length processing ability and precision meet the high standards of the energy industry.

Machinery Manufacturing

  • Ideal for producing large - scale mechanical parts like axles for heavy - duty equipment. The dual - spindle design shortens production time.

Automotive Ancillary Production

  • Suitable for machining long components such as vehicle drive shafts, maintaining the required precision and quality.
