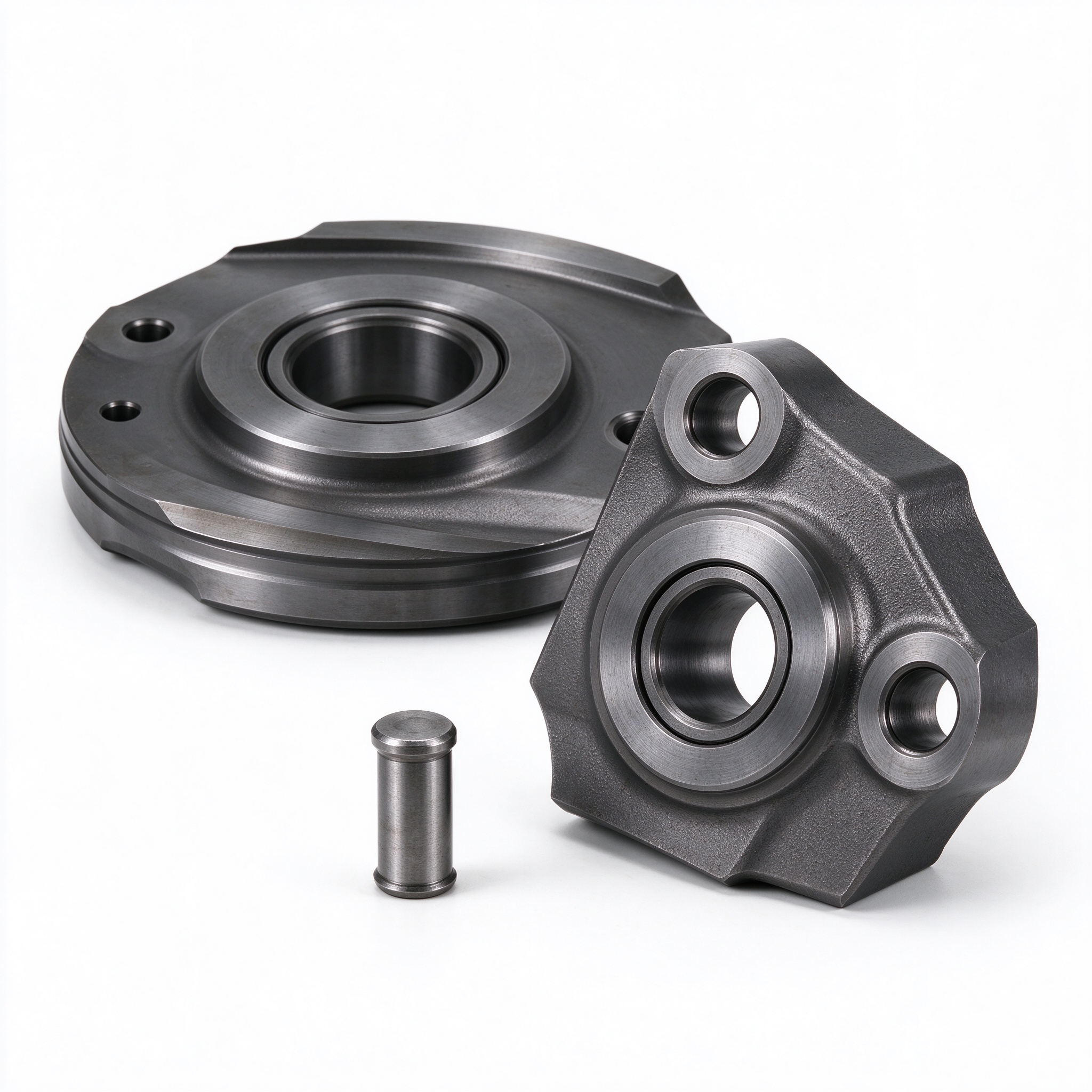

Five Axis CNC Machined Alloy Steel Hydraulic Swash Plate for Variable Displacement Pumps
Five Axis CNC Machined Alloy Steel Hydraulic Swash Plate for Variable Displacement Pumps
Five Axis CNC Machined Alloy Steel Hydraulic Swash Plate for Variable Displacement Pumps
Five Axis CNC Machined Alloy Steel Hydraulic Swash Plate for Variable Displacement Pumps
Five Axis CNC Machined Alloy Steel Hydraulic Swash Plate for Variable Displacement Pumps
Five Axis CNC Machined Alloy Steel Hydraulic Swash Plate for Variable Displacement Pumps
Five Axis CNC Machined Alloy Steel Hydraulic Swash Plate for Variable Displacement Pumps
Five Axis CNC Machined Alloy Steel Hydraulic Swash Plate for Variable Displacement Pumps
Specifications
Model Number :
Custom
MOQ :
1
Delivery Time :
7-14 days
Quality Control :
CMM Inspection, Inclined Face Measurement, Pivot Bore Inspection, Hardness Testing as Required
Processing :
Five Axis CNC Milling, Bore Machining, Finish Grinding as Specified
Certification :
ISO9001:2015
Packaging Details :
Accept buyer's request for customized packaging
Payment Terms :
L/C,D/A,D/P,T/T
Material :
4140 Alloy Steel or Grade Specified on Drawing
Surface Treatment :
Heat Treatment and Surface Finishing as Specified
Brand Name :
Shiye
Place of Origin :
China
Price :
According to the drawings
Tolerance :
±0.01mm
Supply Ability :
10000Pcs/ Month
Application :
Variable Displacement Axial Piston Pumps, Industrial Hydraulic Power Units
Description

This custom CNC machined hydraulic swash plate is designed for variable displacement axial piston pumps used in industrial hydraulic power units, injection molding machinery and heavy equipment hydraulic systems. Its inclined bearing face works with the piston slippers, while the pivot bores and support interfaces establish the required alignment and operating angle.
Five axis CNC machining helps produce the inclined face and multi face geometry with controlled positioning between critical features. The selected alloy steel grade and heat treatment must suit the contact loading, wear conditions and operating requirements of the pump.
Before production, confirm the pump model, swash angle, pivot dimensions, bearing face finish, hardness requirement and post treatment inspection criteria. The inclined surface and pivot alignment should be checked against the mating components to help maintain the intended piston motion and pump performance.

Five Axis CNC Machined Alloy Steel Hydraulic Swash Plate for Variable Displacement Pumps

For more precision multi axis machined components, explore our CNC Multi-Axis Machining

For complex curved blade geometry, see our 5-axis CNC machining.

Need a Similar Custom Part?

Have a drawing or CAD file for a similar component? Send us your requirements, material and quantity for a quotation. Request a CNC Machining Quote
