CNC D2 Tool Steel Orbital Riveting Die for Automated Assembly Lines
CNC D2 Tool Steel Orbital Riveting Die for Automated Assembly Lines
CNC D2 Tool Steel Orbital Riveting Die for Automated Assembly Lines
CNC D2 Tool Steel Orbital Riveting Die for Automated Assembly Lines
CNC D2 Tool Steel Orbital Riveting Die for Automated Assembly Lines
CNC D2 Tool Steel Orbital Riveting Die for Automated Assembly Lines
CNC D2 Tool Steel Orbital Riveting Die for Automated Assembly Lines
CNC D2 Tool Steel Orbital Riveting Die for Automated Assembly Lines
Specifications
Model Number :
Custom
Processing :
CNC Turning, Milling, Profile Machining, Finish Grinding as Specified
Certification :
ISO9001:2015
Packaging Details :
Accept buyer's request for customized packaging
MOQ :
1
Delivery Time :
7-14 days
Quality Control :
Forming Face Profile Inspection, Shank Diameter Measurement, Concentricity Verification, Hardness Testing as Required
Payment Terms :
L/C,D/A,D/P,T/T
Material :
D2 Tool Steel or Grade Specified on Drawing
Surface Treatment :
Heat Treatment and Final Finishing as Specified
Brand Name :
Shiye
Place of Origin :
China
Price :
According to the drawings
Tolerance :
±0.01mm
Supply Ability :
10000Pcs/ Month
Application :
Automated Riveting Cells, Automotive and Sheet Metal Assembly Lines
Description

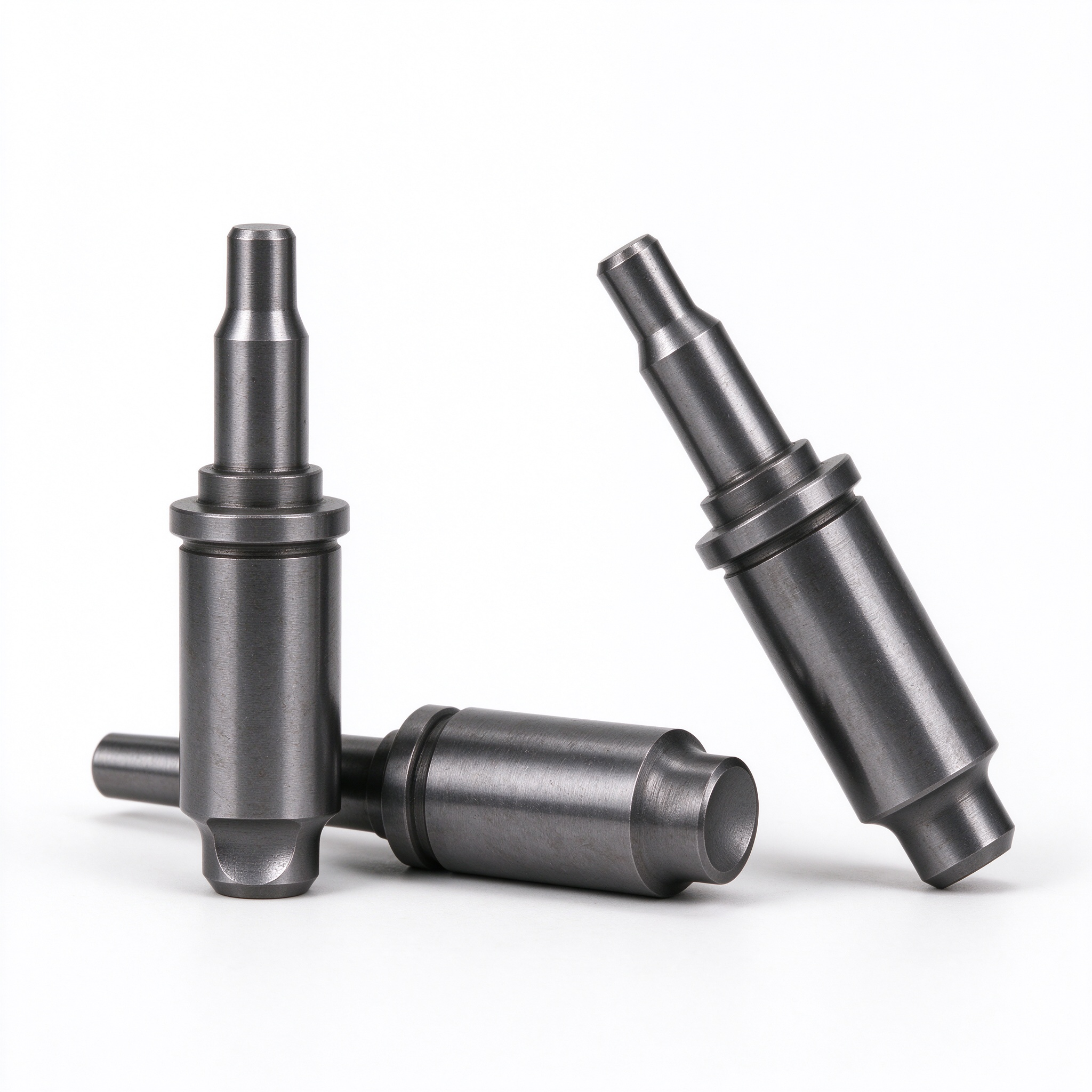

This custom CNC machined riveting die is designed for automated riveting stations used in automotive component assembly, sheet metal joining and industrial hardware production. Its shaped working face contacts the rivet tail during the forming cycle, while the locating shank aligns the tool with the riveting head.

D2 tool steel can provide wear resistance when the appropriate heat treatment and final finishing are applied. The forming profile must match the specified rivet material, shank diameter and final head geometry to avoid incomplete forming or excessive deformation.

Before production, confirm the rivet drawing, required head profile, forming force, machine holder interface and heat treatment requirements. Critical checks include the forming face profile, shank diameter, concentricity and dimensional changes after heat treatment.

CNC D2 Tool Steel Orbital Riveting Die for Automated Assembly Lines

For more custom automated assembly tooling and precision machined components, explore our CNC Automation Parts

For precision tool profiles and multi face machined geometry, see our CNC Multi-Axis Machining.

Need a Similar Custom Part?

Have a drawing or CAD file for a similar component? Send us your requirements, material and quantity for a quotation. Request a CNC Machining Quote
