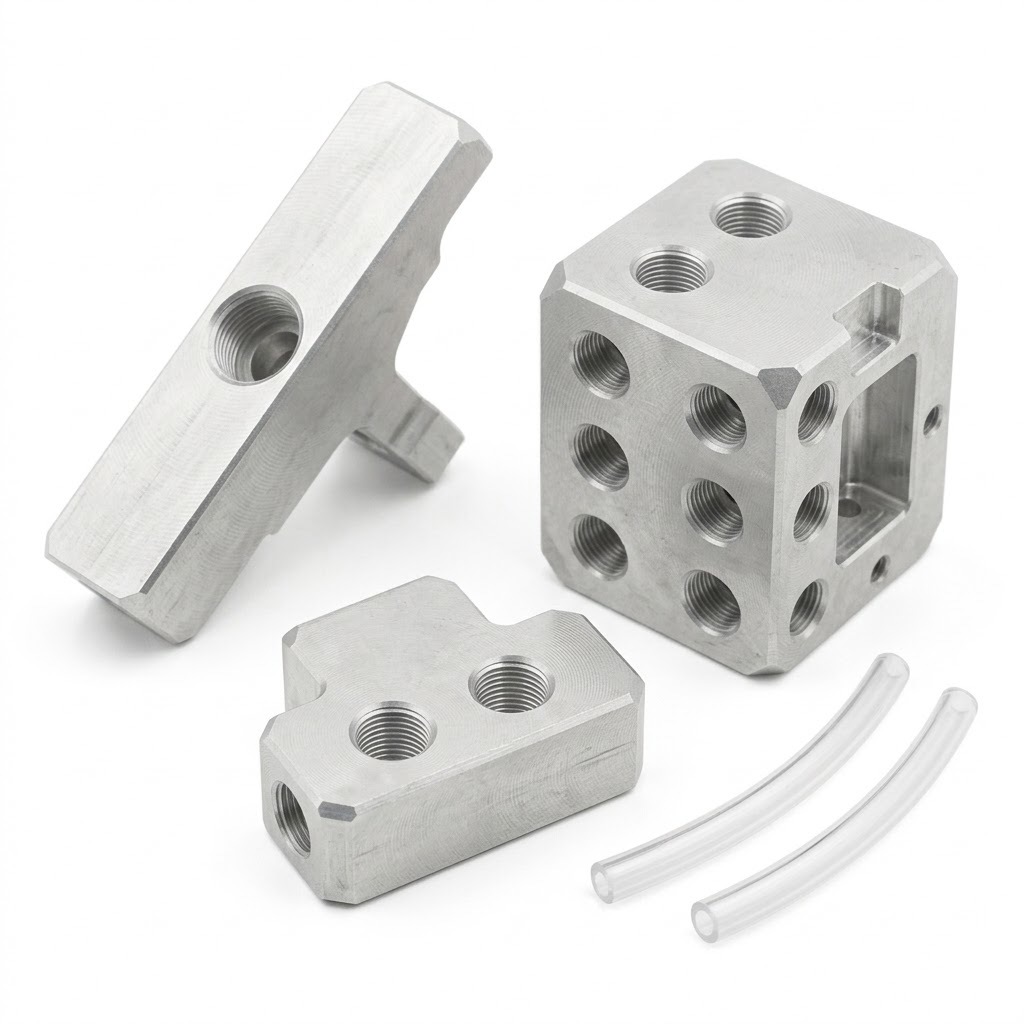

CNC Aluminum UAV Pitot Static Pressure Manifold for Flight Air Data Systems
CNC Aluminum UAV Pitot Static Pressure Manifold for Flight Air Data Systems
CNC Aluminum UAV Pitot Static Pressure Manifold for Flight Air Data Systems
CNC Aluminum UAV Pitot Static Pressure Manifold for Flight Air Data Systems
CNC Aluminum UAV Pitot Static Pressure Manifold for Flight Air Data Systems
CNC Aluminum UAV Pitot Static Pressure Manifold for Flight Air Data Systems
CNC Aluminum UAV Pitot Static Pressure Manifold for Flight Air Data Systems
CNC Aluminum UAV Pitot Static Pressure Manifold for Flight Air Data Systems
Specifications
Model Number :
Custom
MOQ :
1
Delivery Time :
7-14 days
Quality Control :
Port Position Measurement, Thread Gauging, Passage Separation Verification, Leak Testing as Specified
Processing :
CNC Milling, Precision Drilling, Thread Machining, Internal Passage Machining
Certification :
ISO9001:2015
Packaging Details :
Accept buyer's request for customized packaging
Payment Terms :
L/C,D/A,D/P,T/T
Material :
Aluminum Alloy 6061 T6 or Grade Specified on Drawing
Surface Treatment :
Anodizing as Specified for Pressure Interface Compatibility
Brand Name :
Shiye
Place of Origin :
China
Price :
According to the drawings
Tolerance :
±0.01mm
Supply Ability :
10000Pcs/ Month
Application :
Fixed Wing UAV Air Data Systems, Flight Testing Instrumentation
Description

This custom CNC machined pressure manifold is designed for fixed wing UAV air data systems used during mapping missions, flight testing and airspeed measurement. Separate internal passages connect the pitot and static pressure lines to the specified sensor ports, helping maintain the intended pressure inputs for the flight instrumentation system.
Aluminum provides a lightweight option for airborne instrumentation components. Internal channels, thread specifications and sealing interfaces must be designed around the selected pressure sensor, tubing and operating pressure range.
Before production, confirm the pressure port layout, thread standard, channel separation, mounting footprint and required leak test conditions. The finished manifold should be checked for port alignment and unintended cross leakage between pressure passages according to the system requirements.

CNC Aluminum UAV Pitot Static Pressure Manifold for Flight Air Data Systems

For more custom UAV air data and instrumentation components, explore our CNC Drone Parts

For multi face port layouts and complex internal features, see our CNC Multi-Axis Machining.

Need a Similar Custom Part?

Have a drawing or CAD file for a similar component? Send us your requirements, material and quantity for a quotation. Request a CNC Machining Quote
