CNC PEEK Pipette Probe Alignment Plate for Clinical Diagnostic Analyzers
CNC PEEK Pipette Probe Alignment Plate for Clinical Diagnostic Analyzers
CNC PEEK Pipette Probe Alignment Plate for Clinical Diagnostic Analyzers
CNC PEEK Pipette Probe Alignment Plate for Clinical Diagnostic Analyzers
CNC PEEK Pipette Probe Alignment Plate for Clinical Diagnostic Analyzers
CNC PEEK Pipette Probe Alignment Plate for Clinical Diagnostic Analyzers
CNC PEEK Pipette Probe Alignment Plate for Clinical Diagnostic Analyzers
CNC PEEK Pipette Probe Alignment Plate for Clinical Diagnostic Analyzers
Specifications
Model Number :
Custom
Processing :
CNC Milling, Precision Bore Machining, Pocket Machining
Certification :
ISO9001:2015
Packaging Details :
Accept buyer's request for customized packaging
MOQ :
1
Delivery Time :
7-14 days
Quality Control :
Guide Bore Measurement, Bore Spacing Inspection, Flatness Measurement, Mounting Interface Verification
Payment Terms :
L/C,D/A,D/P,T/T
Material :
PEEK Engineering Polymer or Grade Specified on Drawing
Surface Treatment :
Machined Finish, Deburring, Cleaning as Specified
Brand Name :
Shiye
Place of Origin :
China
Price :
According to the drawings
Tolerance :
±0.01mm
Supply Ability :
10000Pcs/ Month
Application :
Clinical Chemistry Analyzers, Automated Laboratory Sample Preparation
Description

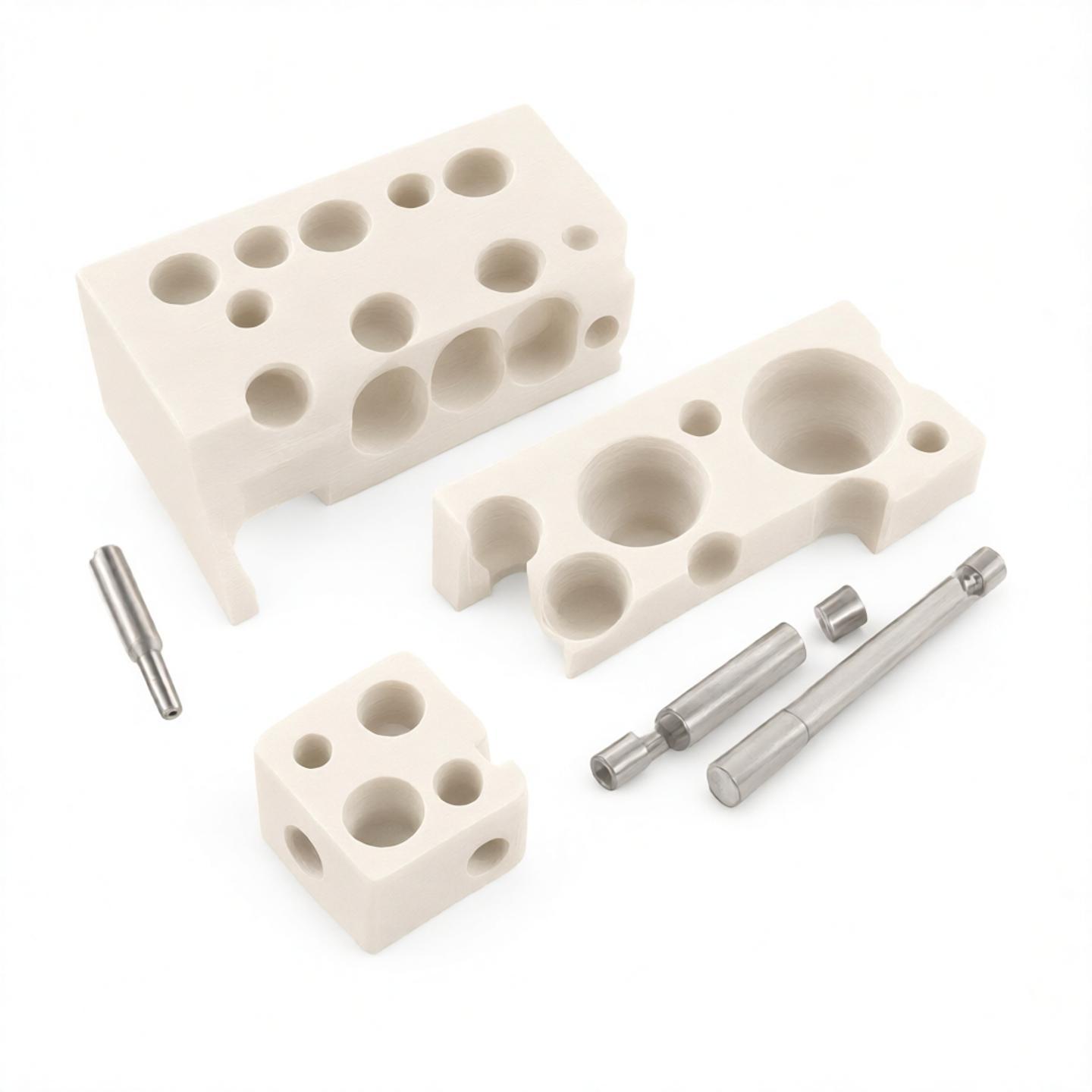

This custom CNC machined PEEK alignment plate is designed for automated clinical chemistry analyzers and laboratory sample preparation equipment, where pipette probes repeatedly transfer samples and reagents between tubes, reagent containers and reaction vessels. The guide bores help maintain the specified probe positions and provide clearance during vertical movement.

PEEK offers good machinability, chemical resistance in many laboratory environments and useful dimensional stability. The material grade must be selected according to the cleaning agents, operating temperature and equipment requirements.

Before production, confirm the probe outside diameter, guide bore clearance, center to center spacing, plate thickness, mounting datums and required flatness. These dimensions should match the probe travel path and prevent interference with nearby containers. For equipment used in regulated laboratory environments, cleanliness requirements and material traceability should be defined by the customer.

CNC PEEK Pipette Probe Alignment Plate for Clinical Diagnostic Analyzers

For more custom medical diagnostic and laboratory instrument components, explore our CNC Medical Parts

For precision bores, locating datums and complex multi face geometries, see our CNC Multi-Axis Machining.

Need a Similar Custom Part?

Have a drawing or CAD file for a similar component? Send us your requirements, material and quantity for a quotation. Request a CNC Machining Quote
