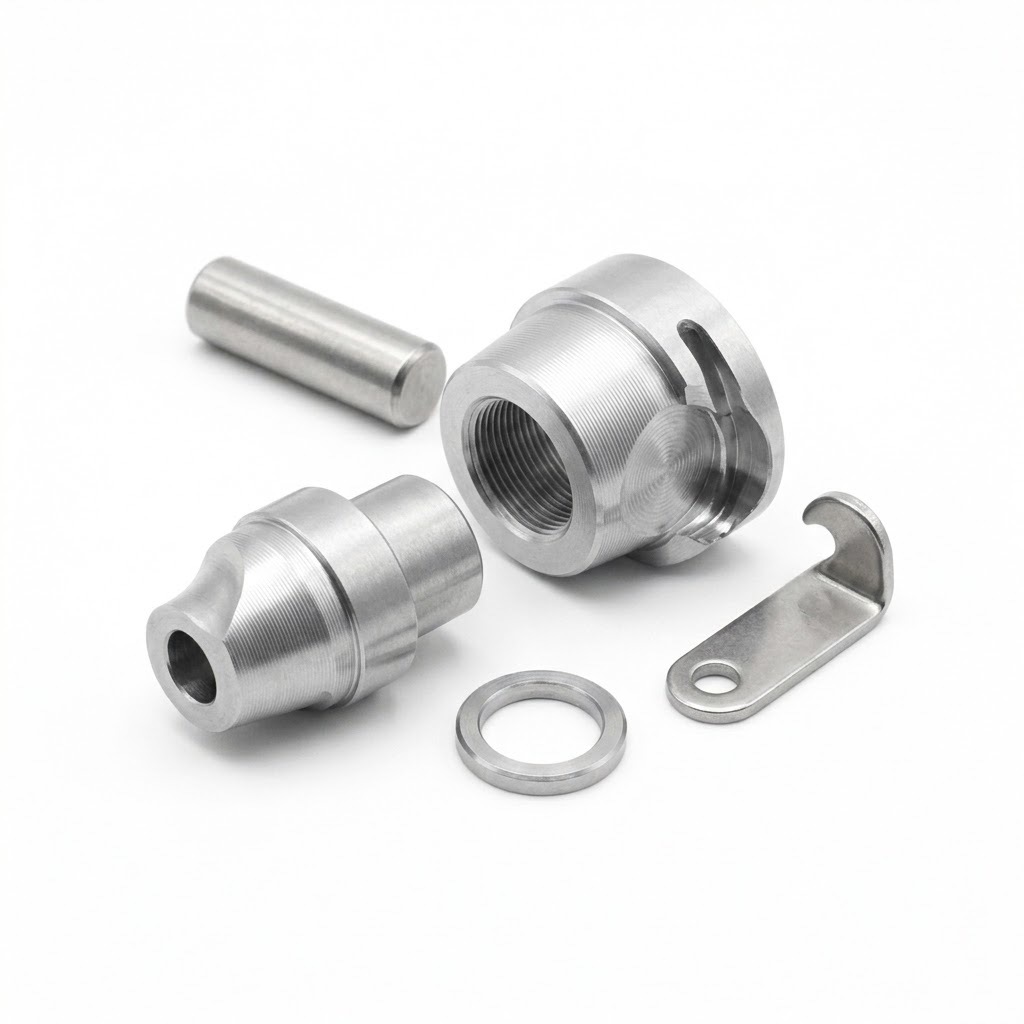

CNC Aluminum UAV Payload Release Cam for Aerial Delivery Systems
CNC Aluminum UAV Payload Release Cam for Aerial Delivery Systems
CNC Aluminum UAV Payload Release Cam for Aerial Delivery Systems
CNC Aluminum UAV Payload Release Cam for Aerial Delivery Systems
CNC Aluminum UAV Payload Release Cam for Aerial Delivery Systems
CNC Aluminum UAV Payload Release Cam for Aerial Delivery Systems
CNC Aluminum UAV Payload Release Cam for Aerial Delivery Systems
CNC Aluminum UAV Payload Release Cam for Aerial Delivery Systems
Specifications
Model Number :
Custom
Processing :
CNC Milling, Contour Machining, Drilling
Certification :
ISO9001:2015
Packaging Details :
Accept buyer's request for customized packaging
MOQ :
1
Delivery Time :
7-14 days
Quality Control :
Cam Profile Inspection, Pivot Bore Measurement, Latch Interface Verification, Critical Dimension Inspection
Payment Terms :
L/C,D/A,D/P,T/T
Material :
Aluminum Alloy 7075 T6 or Grade Specified on Drawing
Surface Treatment :
Anodizing or Hard Anodizing as Specified
Brand Name :
Shiye
Place of Origin :
China
Price :
According to the drawings
Tolerance :
±0.01mm
Supply Ability :
10000Pcs/ Month
Application :
UAV Payload Release Mechanisms, Aerial Delivery and Field Sampling Equipment
Description

This custom CNC machined UAV payload release cam is designed for drone mechanisms that release small delivery packages, field sampling containers or detachable inspection payloads at a designated location. As the cam rotates around its pivot bore, its eccentric profile moves against a mating latch surface to control the release mechanism.
The 7075 T6 aluminum alloy offers a high strength to weight ratio for compact moving components. The final design must still account for the payload mass, vibration during flight, contact stress, pivot wear and the possibility of unintended latch movement.
Before production, confirm the cam profile, pivot diameter, latch travel, required actuation angle, mounting clearance and intended payload load. Functional testing should verify that the assembled mechanism moves freely and remains securely latched under the specified operating conditions.

CNC Aluminum UAV Payload Release Cam for Aerial Delivery Systems

For more custom lightweight UAV mechanism components, explore our CNC Drone Parts

For curved profiles and precision multi face features, see our five axis CNC machining.

Need a Similar Custom Part?

Have a drawing or CAD file for a similar component? Send us your requirements, material and quantity for a quotation. Request a CNC Machining Quote
