CNC Aluminum Multispectral Optical Filter Wheel for Machine Vision Systems
CNC Aluminum Multispectral Optical Filter Wheel for Machine Vision Systems
CNC Aluminum Multispectral Optical Filter Wheel for Machine Vision Systems
CNC Aluminum Multispectral Optical Filter Wheel for Machine Vision Systems
CNC Aluminum Multispectral Optical Filter Wheel for Machine Vision Systems
CNC Aluminum Multispectral Optical Filter Wheel for Machine Vision Systems
CNC Aluminum Multispectral Optical Filter Wheel for Machine Vision Systems
CNC Aluminum Multispectral Optical Filter Wheel for Machine Vision Systems
Specifications
Model Number :
Custom
Processing :
CNC Milling, Pocket Machining, Bore Machining, Indexing Feature Machining
Certification :
ISO9001:2015
Packaging Details :
Accept buyer's request for customized packaging
MOQ :
1
Delivery Time :
7-14 days
Quality Control :
Filter Pocket Measurement, Center Bore Inspection, Indexing Feature Verification, Critical Dimension Inspection
Payment Terms :
L/C,D/A,D/P,T/T
Material :
Aluminum Alloy 6061 T6
Surface Treatment :
Black Anodizing
Brand Name :
Shiye
Place of Origin :
China
Price :
According to the drawings
Tolerance :
±0.01mm
Supply Ability :
10000Pcs/ Month
Application :
Multispectral Imaging, Machine Vision, Laboratory Spectrometers
Description

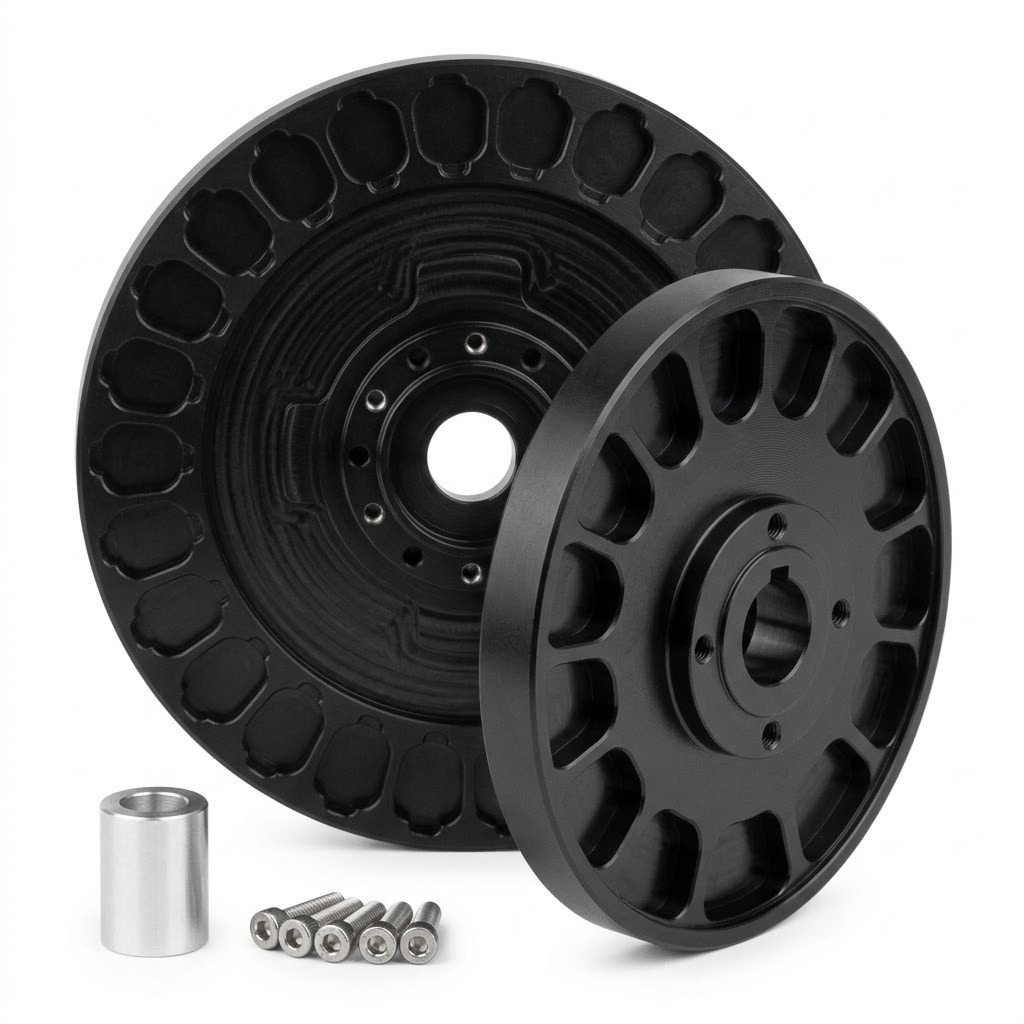

This custom CNC machined optical filter wheel is designed for multispectral imaging systems and laboratory spectrometers that switch between different optical filters during image acquisition or wavelength-specific measurement. Each pocket holds a designated filter, while the central bore and indexing features interface with the rotation mechanism to position the selected filter in the optical path.
Black anodized aluminum helps reduce unwanted reflections from the mechanical wheel surface, although final stray light performance depends on the full optical design and finish specification.
Before production, confirm the filter diameter and thickness, pocket depth, retaining method, number of filter positions, center bore fit and indexing pattern. Pocket concentricity and dimensional consistency are important for reliable filter retention and repeatable positioning.

CNC Aluminum Multispectral Optical Filter Wheel for Machine Vision Systems

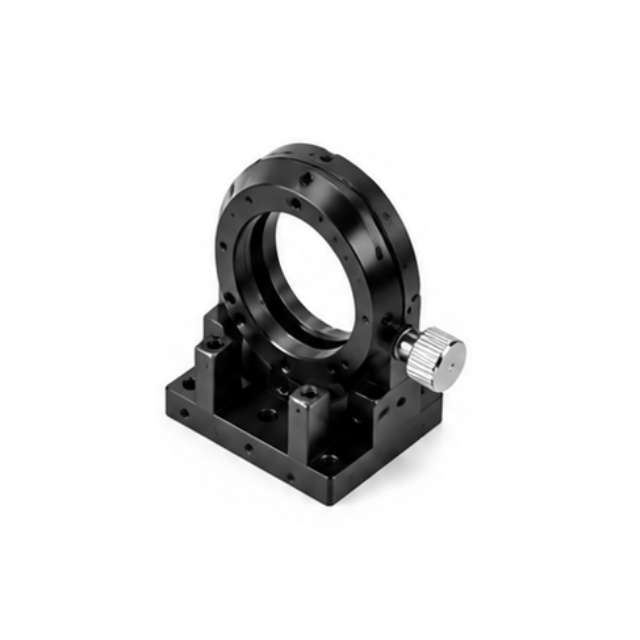

For more custom optical positioning and precision machined components, explore our CNC Optical Parts

For circular pockets and complex multi face component geometry, see our CNC Multi-Axis Machining.

Need a Similar Custom Part?

Have a drawing or CAD file for a similar component? Send us your requirements, material and quantity for a quotation. Request a CNC Machining Quote
