Specifications
Brand Name :
BSM
Model Number :
BTB1004
Place of Origin :
CHINA
MOQ :
1
Price :
10600USD
Payment Terms :
T/T,Western Union
Description

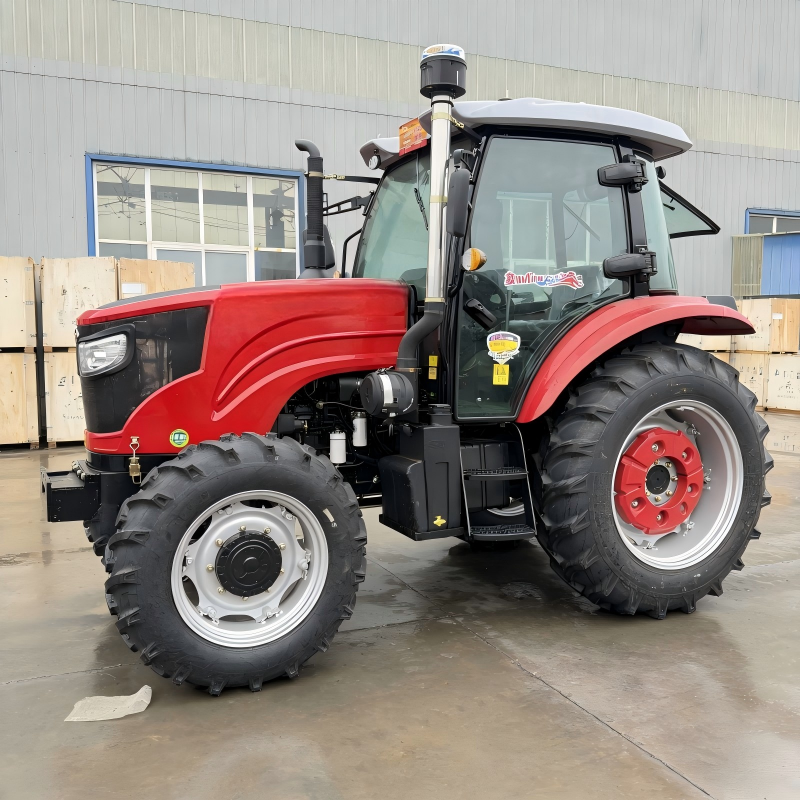

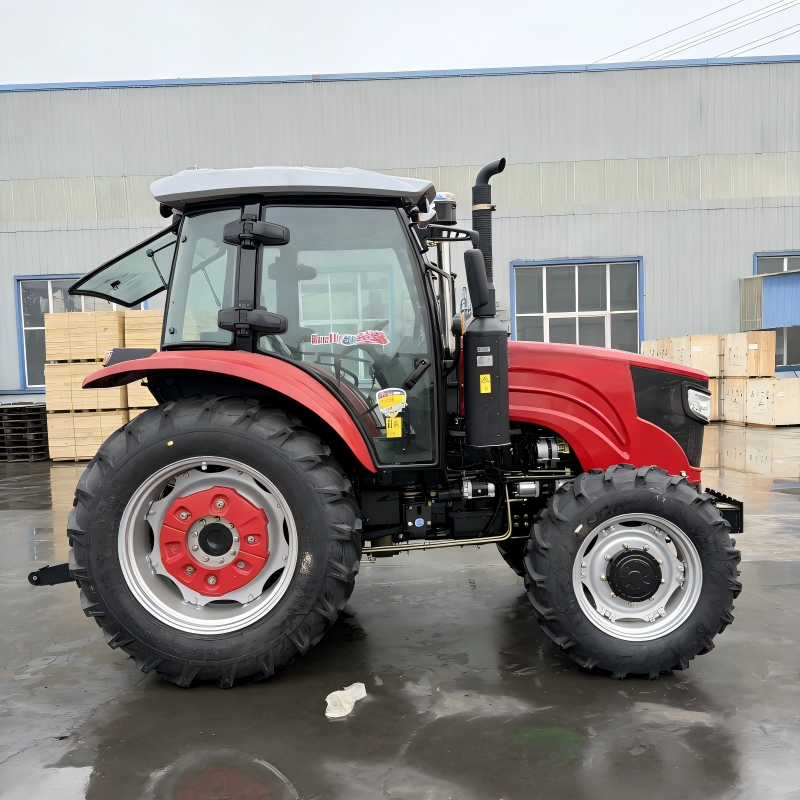

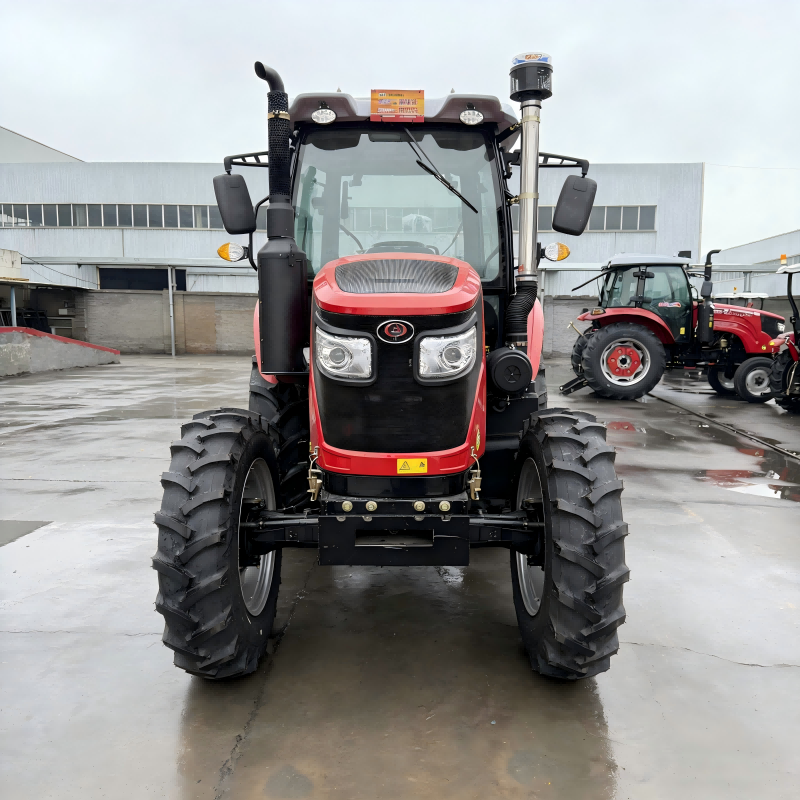

The BTB1004 is a versatile 100 horsepower wheel tractor designed for both paddy and dry field operations. With its 4WD drive system, 380mm minimum ground clearance, and TB reinforced chassis, it delivers superior traction and durability. Whether you need heavy tillage or transport, the BTB1004 offers the perfect balance of power and efficiency.

BTB1004 100HP Wheel Tractor – Strong Hydraulic Lift & Dual Speed PTO

BTB1004 100HP Wheel Tractor – Strong Hydraulic Lift & Dual Speed PTO

BTB1004 100HP Wheel Tractor – Strong Hydraulic Lift & Dual Speed PTO

BTB1004 100HP Wheel Tractor – Strong Hydraulic Lift & Dual Speed PTO

BTB1004 100HP Wheel Tractor – Strong Hydraulic Lift & Dual Speed PTO

BTB1004 100HP Wheel Tractor – Strong Hydraulic Lift & Dual Speed PTO

Core advantages
Advantages Detailed description
Powerful & Efficient Powered by a 100HP engine, matched with a 12F+12R gearbox, allowing precise speed selection for various implements from rotary tillers to disc plows.

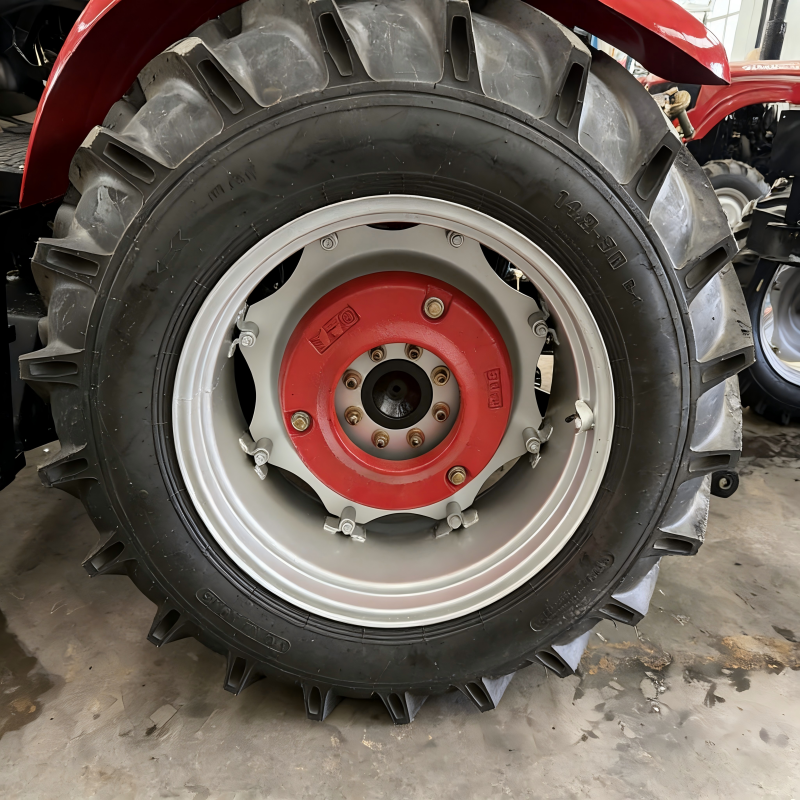

Superior Traction 4WD with front 8.3-20 and rear 14.9-28 tyres ensures excellent grip in wet paddy fields. The adjustable rear track (1300-1500mm) provides stability for different row spacing.

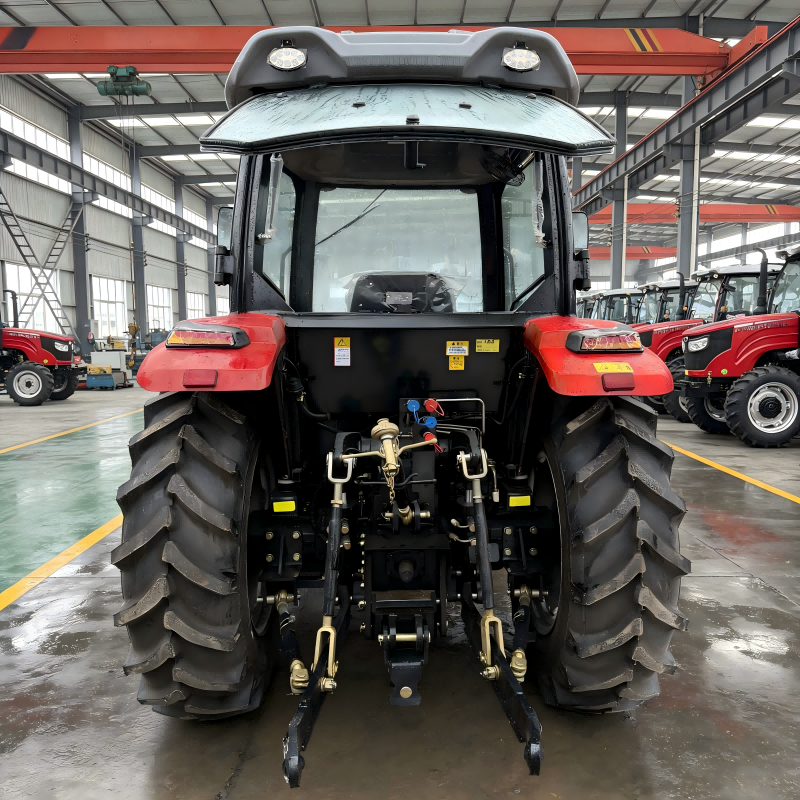

Heavy-Duty Hydraulics Equipped with a strong rise and fall system and 1 set of hydraulic output, it handles heavy mounted implements effortlessly. The dual-speed PTO (540/760 r/min) ensures compatibility with global implement standards.
Rugged Build Built on a durable TB chassis with a 2020mm wheelbase for stability. The 3450kg net weight reduces vibration and improves traction. Comes standard with 8 front and 2 rear counterweights.
Operator Safety & Comfort Includes a safety rack (ROPS) and canopy as standard. The side-mounted fuel tank allows for easy refueling and better weight distribution.
Technical Specifications
  1. Model: BTB1004
  2. Horse power:100HP
  3. Type: wheel tractor
  4. Driving method: 4WD
  5. Gearbox: 12F+12R
  6. Wheelbase:2020mm
  7. Front track:1300mm
  8. Rear track:1300～1500mm
  9. Minimum ground clearance:380mm
  10. Tyres:8.3-20/14.9-28
  11. One set of hydraulic output
  12. Strong rise and fall system
  13. Fuel tank:Side fuel tank
  14. Safety rack: included
  15. Chasis: TB chasis
  16. Counterweight: 8 front and 2 rear
  17. PTO: 540/760r/min
  18. Net weight:3450kgs
  19. Size(L*W*H):3900*1800*2770mm
  20. Canopy: included
Applications
  • Paddy Field Preparation: Ideal for wet land rotary tilling and leveling due to high ground clearance and specialized tires.
  • Dry Land Tillage: Capable of pulling 3-4 furrow plows, disc harrows, and heavy cultivators.
  • Planting & Harvesting Support: Perfect for seed drills and transport tasks with its multi-speed gearbox.
