Foton SQZ560 Folding Hydraulic Mobile Crane with a 28-ton capacity, is a powerful truck-mounted crane.

Type: It is a Truck-Mounted Crane with a Folding Hydraulic Boom (also known as a knuckle boom crane).

Maximum Lifting Capacity: 28,000 kg.

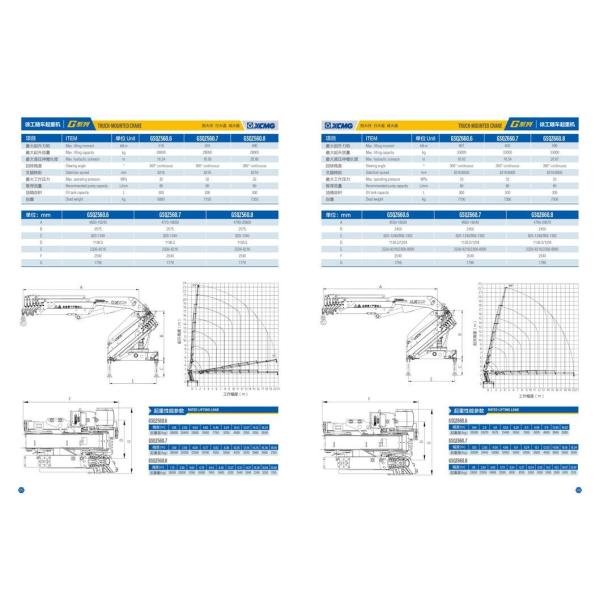

Crane Model (Reference): The crane unit itself is often identified as SQZ560-7 or a similar variation.

Boom Type: Folding Hydraulic Boom (Knuckle Boom): This design is characterized by a multi-jointed arm, which allows it to fold up compactly when not in use and provides greater versatility for working in tight spaces or reaching over obstacles.

Approximate Working Parameters (May vary):

• Maximum Lifting Height: Around 21 meters.
• Maximum Working Radius: Around 18.5 meters.
• Rotation Angle: Typically 360-degree all rotation.

Truck Chassis: It is commonly mounted on a heavy-duty Foton chassis, such as the Foton Auman series, often with an drive configuration to support the weight and capacity of the crane.

Truck crane, also called boom truck crane, mobile truck crane, truck mounted crane, hydraulic folding truck crane, telescopic straight boom crane, truck with crane, crane lorry, hydraulic arm crane for trucks, pickup truck mounted crane, light truck with crane, folding arm hydraulic lift platform, hydraulic crane telescopic boom, mobile crane price, self loader truck with boom crane, new forland lorry truck mounted crane, telescopic boom truck mounted crane, flatbed knuckle boom truck crane, 6 wheelers truck with crane boom truck cranes sale etc.

A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has two parts: the carrier, often referred to as the Lower, and the lifting component which includes the boom, referred to as the Upper. These are mated together through a turntable, allowing the upper to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is usually powered via hydraulics run through the turntable from the pump mounted on the lower. In older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran the upper through a hydraulic pump of its own. Many older operators favor the two-engine system due to leaking seals in the turntable of aging newer design cranes.

The Foton Auman RHD Cargo Truck Mounted 28ton SQZ560 Folding Hydraulic Mobile Telescopic Boom Crane is a heavy-duty piece of equipment with specific technical parameters.

Foton Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane

• Construction and Infrastructure
  • Steel Erection: Lifting and positioning heavy structural steel beams, girders, and columns in commercial and industrial building construction.
  • Pre-cast Concrete: Placing large concrete slabs, wall panels, culverts, and bridge sections.
  • Material Handling on Site: Unloading, moving, and precisely positioning construction materials (e.g., scaffolding, bundles of rebar, large machinery parts) to various floors or sections of a site.
  • Tunnel and Mining Support: Assisting with the installation of ventilation, support structures, and heavy equipment.
• Logistics and Transport
  • Heavy Cargo Loading/Unloading: Self-loading and unloading oversized and heavy goods at ports, rail yards, warehouses, or remote locations without dedicated fixed infrastructure.
  • Equipment Relocation: Lifting and transporting industrial machinery, generators, and heavy components for factory maintenance or relocation.
  • Specialized Haulage: Used as a transport vehicle that can manage its own payload (up to the 28-ton capacity) and perform the necessary lift at both the origin and destination.
• Utility and Maintenance Work
  • Oil and Gas: Lifting and placing piping, valves, pump skids, and other heavy components at drilling or processing sites.
  • Power and Electricity: Positioning utility poles, setting up large transformers, and supporting high-altitude electrical line maintenance.
  • Bridge and Road Maintenance: Lifting barriers, equipment, and structural components for repair and inspection work.
• Specialized Operations (with Attachments)

  The folding boom design allows for great dexterity and the use of various attachments, expanding its versatility:

  • Personnel Baskets/Platforms: Converting the crane into an aerial work platform (AWP) for safely lifting workers during maintenance, inspection, or installation tasks.
  • Grapples and Clamps: Used in forestry for handling logs (timber) or in waste management for picking up bulk, irregularly shaped materials.
  • Augers: Used for drilling holes, particularly in utility work for setting poles.

For general cargo lifting and other special things like timber and brick by changing other equipment.

Established: 2004

Headquarters/Location: Suizhou City, Hubei Province, China. Suizhou is often referred to as the "Capital of China's Special Purpose Vehicles."

Scale: Chengli is designated as a large-scale manufacturer by the Chinese government and is frequently ranked among the "Top 500 Chinese Private Enterprises."

Facilities: The group operates large-scale manufacturing bases, covering thousands of acres and employing over 10,000 staff members, including a significant number of technical and skilled workers.

Established in Sep. 2004, Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB (14 millions US Dollars) and total capital 6,000,000,000 (840 millions US Dollars).

Global Reach: They export their specialized vehicles to more than 30 to over 80 countries and regions (depending on the source and timeframe), including:

• Africa: Countries in East Africa (e.g., Tanzania, Kenya, Uganda, Malawi), West Africa (e.g., Nigeria, Ghana, Senegal, Togo, Benin, Niger), and others like Angola, and South Africa.
• Asia: Southeast Asia (e.g., Philippines, Singapore, Myanmar), Central Asia, and other Asian markets (e.g., Mongolia, Bangladesh, Pakistan).
• The Middle East (e.g., Saudi Arabia, UAE).
• South America (e.g., Peru, Bolivia, Panama, Chile, Ecuador, Venezuela).
• Other Regions: Russia, New Zealand, Australia.

Exported Products: Their exports cover a wide variety of specialized trucks, such as:

• Water Sprinkler Trucks
• Fuel and LPG Tanker Trucks
• Garbage Trucks (Compactor, Hook Lift, etc.)
• Sewage Suction Trucks
• Fire Trucks
• Truck-Mounted Cranes (Boom and Wrecker)
• Aerial Platform Trucks
• Ambulance Cars
• Refrigerated Van Trucks

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing.
