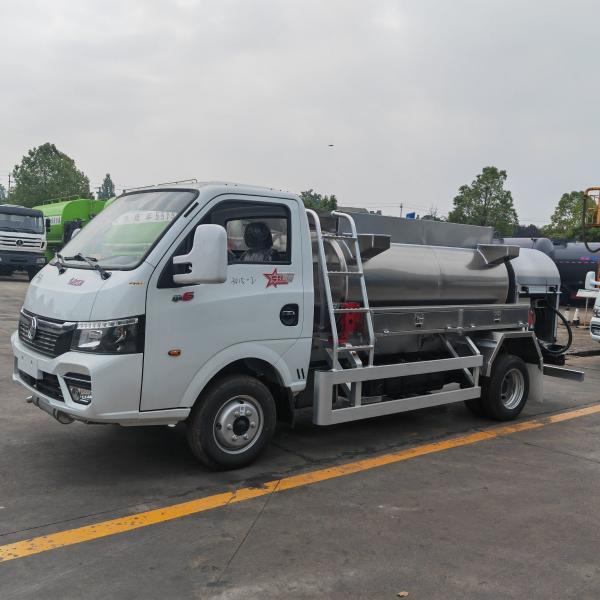

Dongfeng 2cbm Mini Captain Fuel Dispenser Truck is a specialized light-duty tank truck designed for the mobile delivery and dispensing of fuel, primarily diesel and gasoline. The "2cbm" refers to a 2,000-liter (or approximately 530-gallon) capacity of the tank body.

• Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
• Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
• High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
• Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
• Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
• Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
• Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
• Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

Tank Body:

• Material: Usually Q235 Carbon Steel, which is common for fuel transportation. Aluminum alloy or stainless steel may be optional.
• Compartments: Can be divided into multiple compartments (e.g., one for diesel, one for gasoline) as per customer requirements.
• Safety Fittings: Includes essential safety features like:
  • Manhole cover (aluminum alloy is common).
  • Emergency shut-off valve (foot valve).
  • Breathing valve and anti-overflow probe.
  • Anti-static belt and conductive wire reel.

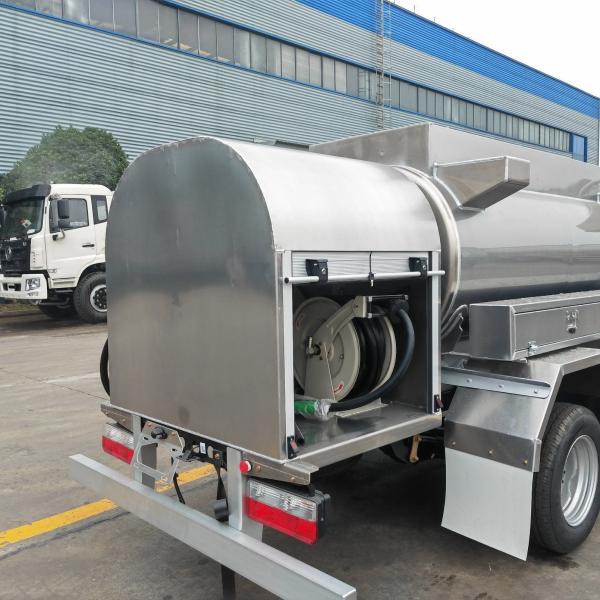

Fuel Dispensing System (The Mobile Station):

• Fuel Pump: An oil pump (often a Chinese famous brand, or optional imported pump) is equipped for both suction from external sources and discharge/refueling.
• Fuel Dispenser: A computer fuel dispenser unit is installed, typically with a digital screen to display liters, price, and amount. Tax-control systems are often integrated for commercial use.
• Hose Reel: Equipped with a high-quality, wire-reinforced hose (often 10-15 meters long) and a fueling gun/nozzle for convenient reach.
• Flow Meter: A component of the dispenser unit that accurately measures the volume of fuel dispensed.

The "Mini Captain" and Fuel Type
The term "Mini Captain" refers to the Dongfeng light-duty truck series known for being compact and economical.

The truck can dispense both Diesel and Gasoline, provided the tank is either:

• Dedicated (one single-fuel tank).
• Sectional (divided into compartments for two different fuels, each with its own dispensing system).

Location: Headquartered in Suizhou City, Hubei Province, China, often referred to as the "Capital of China's Special Purpose Vehicles."

Establishment: Founded in September 2004 as Chengli Special Automobile Co., Ltd., which has since grown into the diversified CLW Group.

Scale: It is one of the largest special automobile manufacturers in Central China and has been recognized as one of the "China Top 500 Private Enterprises."

Capacity: The company boasts a significant production capacity, with annual output targets often exceeding 100,000 special vehicles.

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Export Countries: Chengli products are exported to more than 50 countries and regions worldwide.

Target Regions: Their main markets are broadly categorized as:

• Africa: A major focus market, including countries like Nigeria, Ghana, Tanzania, Kenya, Uganda, Malawi, Senegal, Togo, Benin, Niger, Congo, and South Africa.
• Asia/Southeast Asia/Central Asia: This includes the Philippines, Malaysia, Vietnam, Myanmar, Thailand, Cambodia, Laos, Mongolia, Bangladesh, Kazakhstan, Uzbekistan, and Pakistan.
• The Middle East: A key region for their tanker products.
• South America: Countries like Peru, Bolivia, Panama, Chile, and Ecuador.
• Eastern Europe: Including Russia.
• Oceania: Including Australia and New Zealand.

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
