Specifications
Model NO. :
M500
Control Type :
PLC
Customized :
Customized
Condition :
New
Automatic Grade :
Automatic
Certification :
CE, RoHS, GS, ISO9001
Type :
Sand Casting
Sand Type :
Phenolic Resin-Coated Sand (Hot-Box)
Heating Method :
Thermal Oil Heating (180-220°C)
Rotor Speed :
Rotor Speed
Communication :
Modbus RTU / Profinet
Transport Package :
Export Packaging
Specification :
Customizable
Trademark :
DL
Origin :
China
HS Code :
8474802000
Production Capacity :
100
MOQ :
1 Piece
Price :
US $10,000-500,000
Description
Product Description

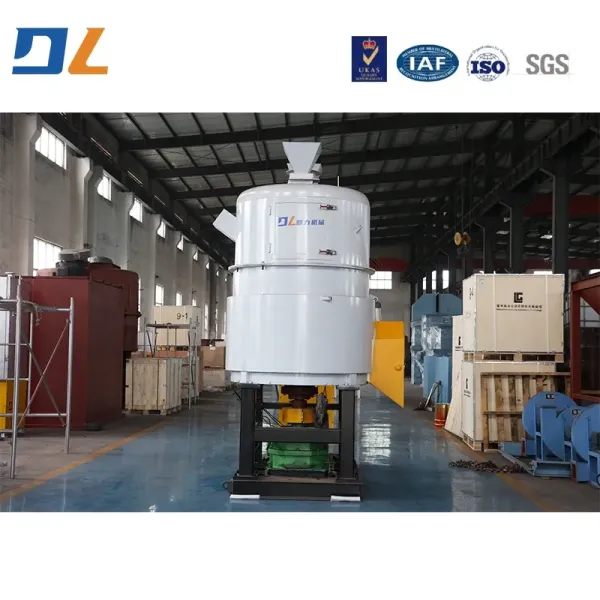

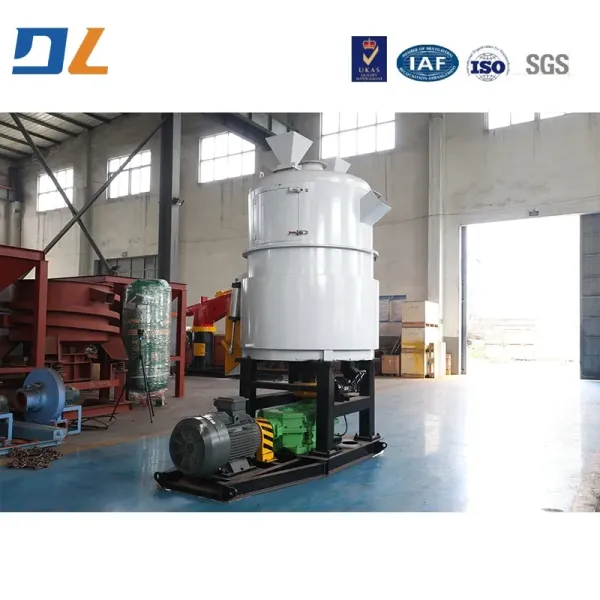

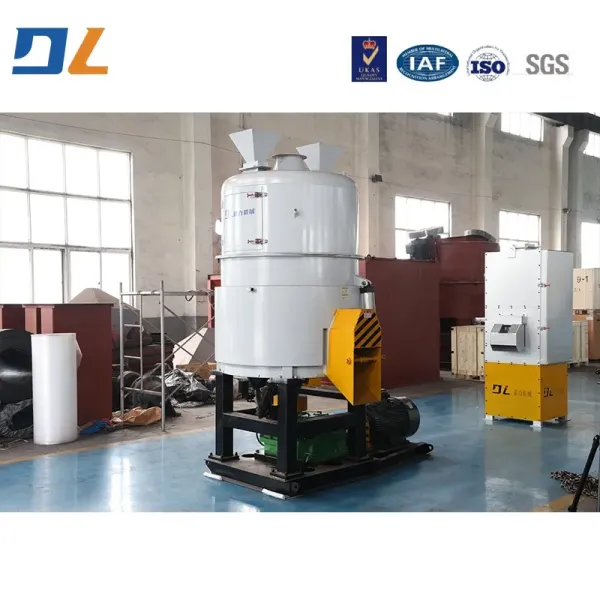

Product Description of M Series Shell Sand Coating & Mixing Machine
The M Series Shell Sand Coating & Mixing Machine is a high-efficiency heating mixer designed specifically for the hot-box shell sand coating process, suitable for the preheating, mixing, and discharge of phenolic resin-coated sand. Widely used in shell mold/core production for engine manifolds, turbo housings, precision valves, and fittings, the M Series features a thermal oil-heated jacket + high-speed rotor + precise temperature control to uniformly preheat sand (140–160°C) and rapidly melt and coat resin—ensuring a complete, dense resin film on each grain, enhancing shell strength, surface finish, and collapsibility.
Available in batch and continuous models, the M Series handles 100–1500 kg per batch, and can operate standalone or integrate with sand heaters, cooling screens, automatic feeders, and robot core extractors—forming a fully automated shell sand line that meets demands for consistent quality, high throughput, low energy, and minimal resin usage.
Working Principle
Sand Preheating
Dry base sand (silica or chromite) enters the heating mixing chamber via elevator or pneumatic conveyor. Thermal oil (180–220°C) circulates through the jacket, uniformly heating the sand to 140–160°C—ensuring consistent grain temperature without hot spots or caking.

Resin Addition & High-Speed Mixing

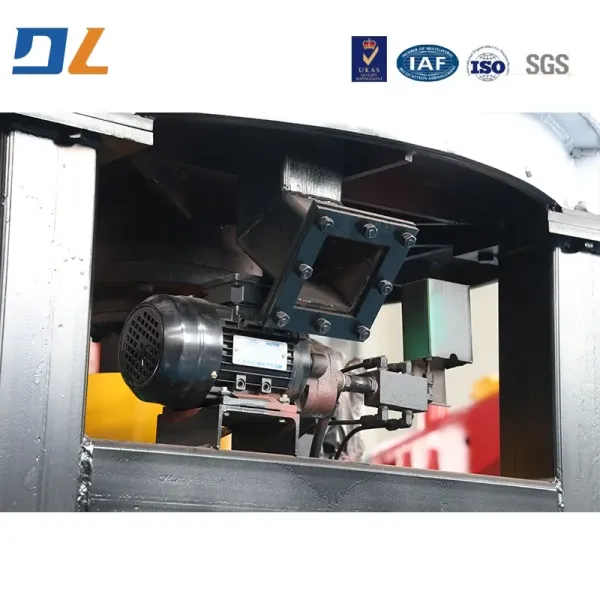

Once target temperature is reached, phenolic resin powder is fed via a screw metering feeder, while additives (e.g., stearic acid, hexamine) are injected. The high-speed rotor (150–300 rpm) rapidly melts and coats the resin—achieving uniform coverage in 60–120 seconds, producing free-flowing coated sand.

Rapid Cooling & Discharge

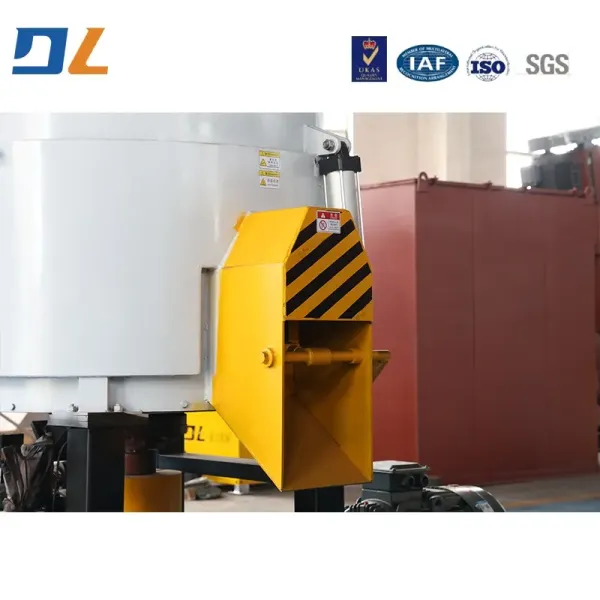

After mixing, the coated sand is rapidly discharged via pneumatic/electric valve to a cooling screen or buffer hopper to prevent premature curing. Some models feature integrated cooling ducts for direct air cooling.


Fully automated via PLC + HMI, with temperature profiling, recipe storage, data logging, fault alarms. Optional spray-cleaning system prevents resin buildup and extends service life.
High-Efficiency Coated Sand Mixing Machine for Sand Treatment
High-Efficiency Coated Sand Mixing Machine for Sand Treatment
High-Efficiency Coated Sand Mixing Machine for Sand Treatment
High-Efficiency Coated Sand Mixing Machine for Sand Treatment
High-Efficiency Coated Sand Mixing Machine for Sand Treatment
High-Efficiency Coated Sand Mixing Machine for Sand Treatment
High-Efficiency Coated Sand Mixing Machine for Sand Treatment
High-Efficiency Coated Sand Mixing Machine for Sand Treatment
High-Efficiency Coated Sand Mixing Machine for Sand Treatment
High-Efficiency Coated Sand Mixing Machine for Sand Treatment
Key Features
Thermal Oil Heating, Uniform & Precise Temperature
Jacketed heating ensures sand temperature accuracy ±2°C, avoiding localized overheating and resin charring—ensuring consistent coating quality.

High-Speed Rotor, High Coating Efficiency
Rotor tip speed 20–28 m/s, mixing uniformity ≥98%, resin consumption reduced by 10–15% vs. conventional mixers—lowering production costs.
Smart Temperature Control, Repeatable Process
Multi-stage temperature profiling for preheating, holding, mixing
Infrared pyrometer monitors sand temp in real-time, auto-adjusts power
Recipe storage & recall ensures process consistency across sand types

Robust Structure, Wear-Resistant
Mixing chamber, rotor, and liners made of wear-resistant alloy (NM400) or ceramic coating—critical parts last ≥6,000 hours; overall lifespan ≥10 years.

Automated Integration, Easy Operation
PLC + color HMI, remote monitoring, MES integration
Optional automatic feeder, cooling interlock, robot interface
Batch counting, output tracking, energy analysis supported

Easy Maintenance, Minimal Downtime

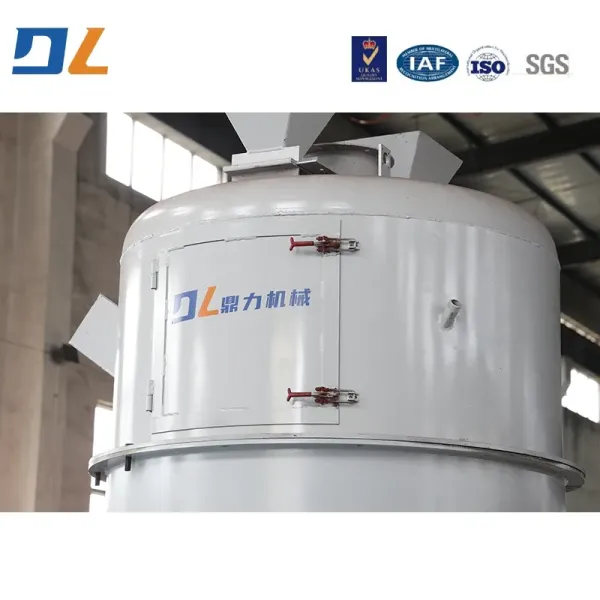

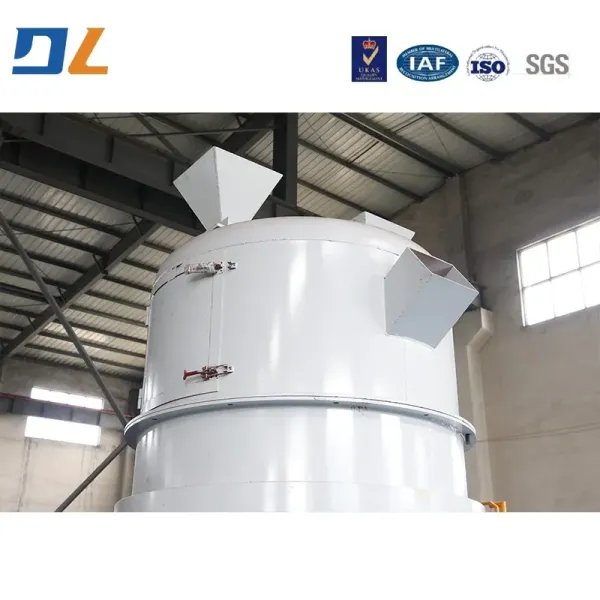

Top quick-opening cover for cleaning and liner replacement
Optional pull-out rotor design—replaced within 2 hours
Modular structure with high part commonality
Main Technical Specifications
Batch Capacity
100–150 kg
300–500 kg
1000–1500 kg
Sand Type
Phenolic Resin-Coated Sand (Hot-Box)
Phenolic Resin-Coated Sand (Hot-Box)
Phenolic Resin-Coated Sand (Hot-Box)
Heating Method
Thermal Oil Heating (180–220°C)
Thermal Oil Heating (180–220°C)
Thermal Oil Heating (180–220°C)

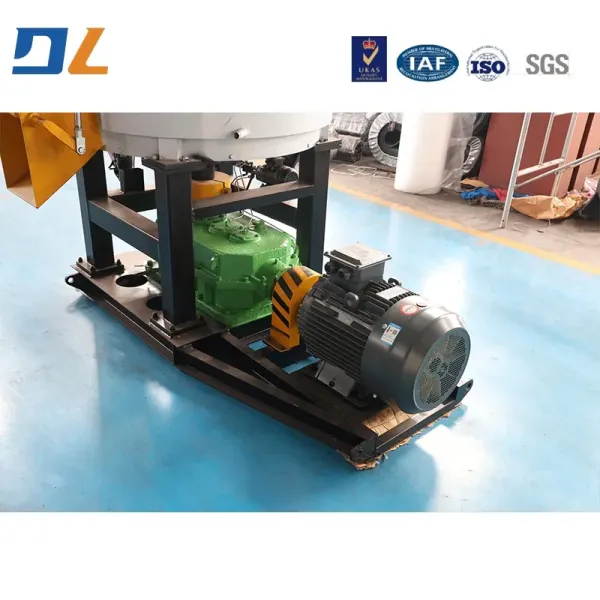

Mixing Motor
7.5 kW
18.5 kW
37 kW
Rotor Speed
150–300 rpm VFD adjustable
150–300 rpm VFD adjustable
150–300 rpm VFD adjustable
Mixing Time
60s–120s
60s–120s
60s–120s
Temp. Accuracy
±2°C


Control System
PLC + 7"/10.1" Color HMI
PLC + 7"/10.1" Color HMI
PLC + 7"/10.1" Color HMI
Communication
MODBUS RTU / PROFINET
MODBUS RTU / PROFINET
MODBUS RTU / PROFINET
Weight
1,200 kg
2,800 kg
5,500 kg
Protection Rating
IP55 (Control Cabinet IP65)
IP55 (Control Cabinet IP65)
IP55 (Control Cabinet IP65)
Typical Applications
Shell mold/core production for engine manifolds and turbo housings

High-surface-quality core production for valves and pumps

Integrated with sand heater, cooler, and robot for full automation

Supports multi-resin switching (phenolic, modified phenolic, etc.)

Connects to MES for traceability and process optimization
