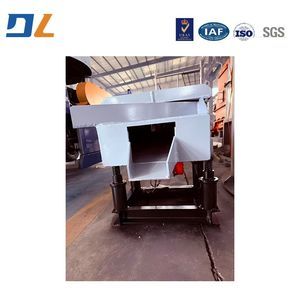

Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Specifications
Model NO. :
DL
Control Type :
PLC
Customized :
Customized
Condition :
New
Automatic Grade :
Automatic
Certification :
CE, RoHS, GS, ISO9001
Type :
Sand Casting
Length :
1000mm - 3000mm
Decks :
1 - 3 Layers
Capacity :
0.1 - 30 (T/H)
Feed Size :
≤ 10 mm
Transport Package :
Customizable
Specification :
Customizable
Trademark :
DL
Origin :
China
HS Code :
8474802000
Production Capacity :
800
MOQ :
1 Piece
Price :
US $1,000-5,000 / P
Description
Product Description
Compact Linear Vibrating Screen
The Compact Linear Vibrating Screen is a lightweight, high-efficiency screening device designed for classification, impurity removal, and dewatering of small-to-medium volume materials. Featuring a compact structure and small footprint, it utilizes dual vibrating motors to drive linear motion of materials on the screen surface, ensuring rapid and precise separation. Widely used in foundry, chemical, food, and pharmaceutical industries, it is an essential eco-friendly unit in automated production lines.
Key Features
Fully Enclosed Design
Prevents dust leakage effectively, meeting strict environmental and hygiene standards.

High-Precision Classification
Configurable with 1-3 screen decks to separate 2-4 particle sizes simultaneously, with efficiency >95%.

Low Maintenance & Operating Cost
Anti-clogging rubber balls ensure continuous flow; screen mesh replacement takes only minutes.

Robust & Stable Operation
Welded from high-grade profiles with stress-relief treatment; operates with low noise (≤80 dB).
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Mini Linear Vibrating Screen for Fine Material Screening
Technical Specifications
Model
LS-520 / LS-630 / LS-800 / LS-1000
Width
500mm / 630mm / 800mm / 1000mm
Length
1000mm – 3000mm (Customizable)
Decks
1 – 3 Layers
Capacity
0.1 – 30 (t/h)
Feed Size
≤ 10 mm
Screening Accuracy
0.074 mm – 10 mm (325 mesh)
Power
2 × 0.4kW – 2 × 1.5kW
Material
Carbon Steel / SS304 (Optional)
Typical Applications
Foundry: Particle size grading of reclaimed sand, removing fines and impurities.

Chemical/Food: Screening of resin, plastic pellets, sugar, salt, flour, and starch.

Environmental/Ceramic: Sludge dewatering, ceramic slurry cleaning, activated carbon screening.
Company Profile
Mini Linear Vibrating Screen for Fine Material Screening
Qingdao Dingli Machinery Co., Ltd.
Qingdao Dingli Machinery Co., Ltd. is a company specializing in the production of casting machinery equipment. It mainly manufactures equipment for casting clay sand, resin sand, coated sand, wet sand drying, lost foam casting, sodium silicate sand, etc. It can undertake various turnkey projects, including the design, manufacturing, installation and commissioning of mechanical sand processing. Our factory has strong technical strength and advanced processing equipment. We have long-term and close technical cooperation with many senior experts and scholars from domestic universities and research institutions. We can provide users with high-performance, reliable products and satisfactory services.
Our company adheres to the principles of promoting enterprise development through technology, prioritizing quality, continuous improvement and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life to achieve common prosperity.
Our company mainly undertakes the following projects:
20-180t/h mechanized clay sand processing production line and single machine equipment turnkey project.
Annual production of 1000 to 20,000 tons of consolidated resin sand casting mechanized production line and single machine equipment turnkey project.
Annual production of 3,000 to 10,000 tons of hot processing coated sand complete equipment and single machine equipment turnkey project.
Annual production of 3,000 to 7,000 tons of hot coating sand regeneration complete equipment and single machine equipment turnkey project.
5-15t/h sodium silicate mechanical production line and single machine equipment turnkey project.
5-30t/h three-stage sand drying equipment and single machine equipment turnkey project.
5-40t/h lost foam casting complete equipment and single machine equipment turnkey project and other types of shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, environmental protection dust removal equipment.
