According to your company's workshop layout and process requirements, combined with our company's experience, we design the following plan:

Y335T magnetic separator belt machine - S5610 multifunction vibration regenerator - Y3718C bucket elevator - S524 III air separator - --Y3718C bucket elevator for S5210 II centrifugal rotor regenerator - new and old sand double chamber sand bank (negotiation) ---Y5610B proportional regulator - S2510 continuous resin sand mixer

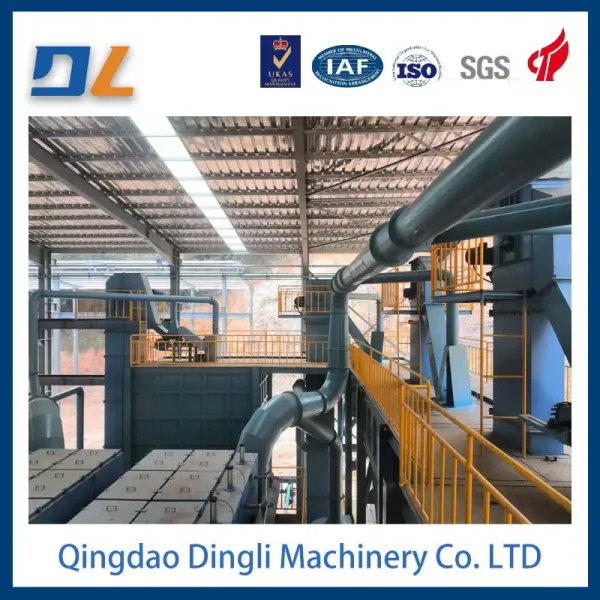

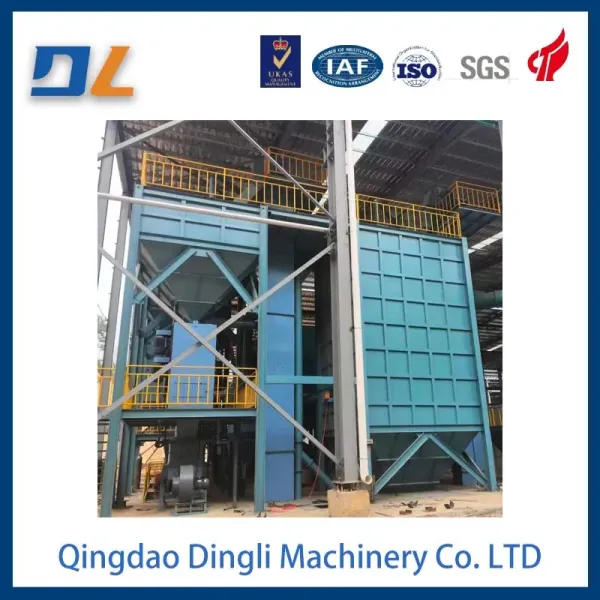

The layout of the scheme is shown in the accompanying drawings.

3. scheme design description

The whole line is regenerated by crushing, magnetic separation, two stage regeneration, air separation and screening. According to experience, the resin sand collapsibility after pouring is very good, so the line is artificially sanding through the grid, and the fallen old sand is sent to the vibrating regenerator through the belt conveyor. The head of the belt conveyor adopts permanent magnet head wheel to separate iron and iron from sand and sand blocks. The sand blocks are crushed into sand grains by rubbing the vibration regenerator, the sand block and the sand block, and then enter the two stage centrifugal regenerator through the bucket elevator. The sand is quickly rotated and rubbed for 28 m / sec in the centrifugal regenerator, and the membrane is removed and treated with micro powder. Then the bucket elevator is lifted to the temporary storage of the sand bin. The whole set of regeneration treatment is compact in structure and reasonable in design, so that the regenerated sand can meet the requirement of conformity. A S2510 double arm resin sand mixer is set up below the sand bin to mix the molding sand of core sand or small castings. The sand is evenly mixed into the mixer through proportional adjustor, and then it can be shaped through the automatic mixing of the mixer. This not only enlarges the molding area, but also reduces the conveying capacity of molding sand.

4. technical parameters and equipment description

Regeneration system

It includes: Y335T magnetic separator, S565 vibratory regenerator, 1# bucket elevator, S525 II centrifugal rotor regenerator, S524 III pneumatic separator.

(1) Y335T magnetic separator

1.1 features and uses

The S975T head wheel is equipped on the machine for effective transportation and magnetic separation of the material. Its driving device adopts TDY75 type oil cooled electric roller, which is well sealed and suitable for working environment with large dust concentration and humidity. The machine is compact in structure, reliable in use and easy to maintain.
