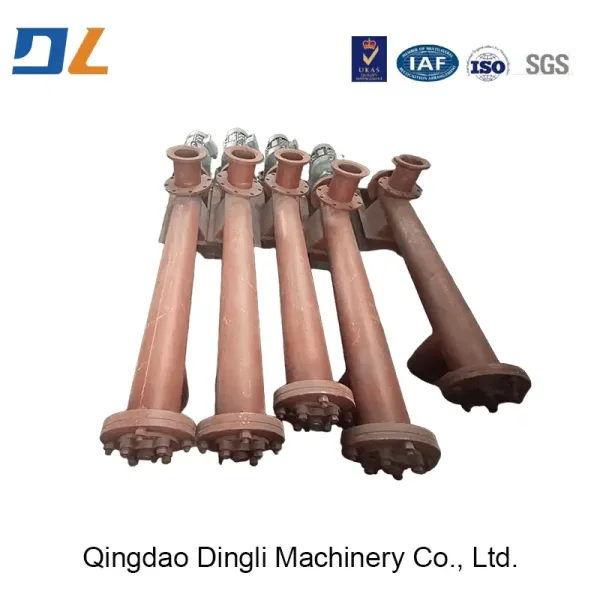

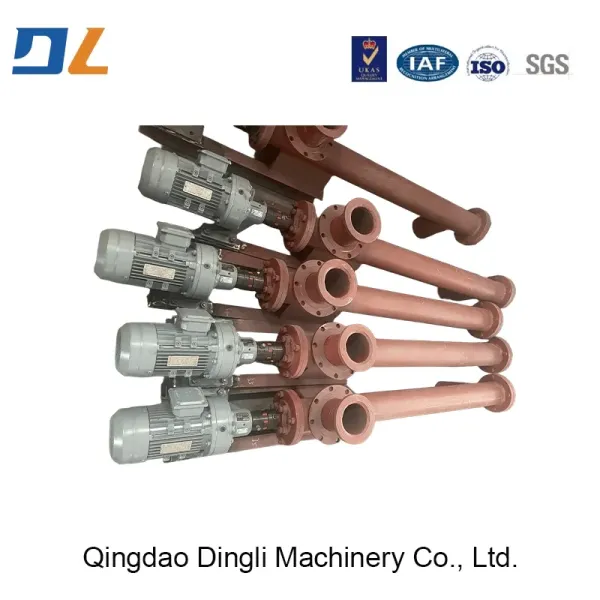

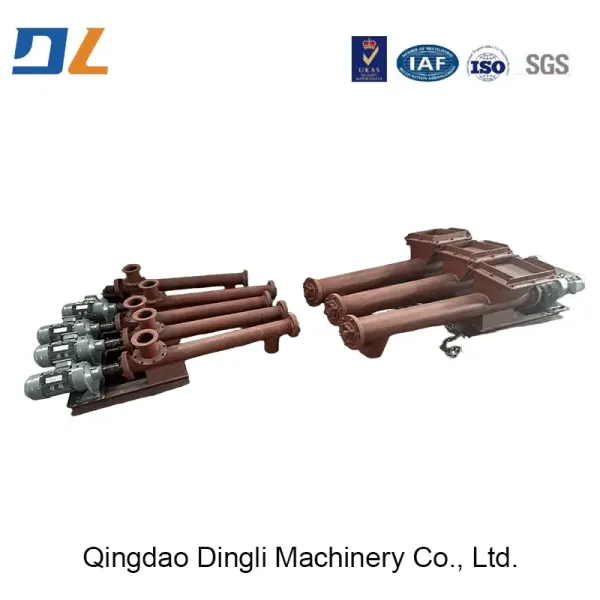

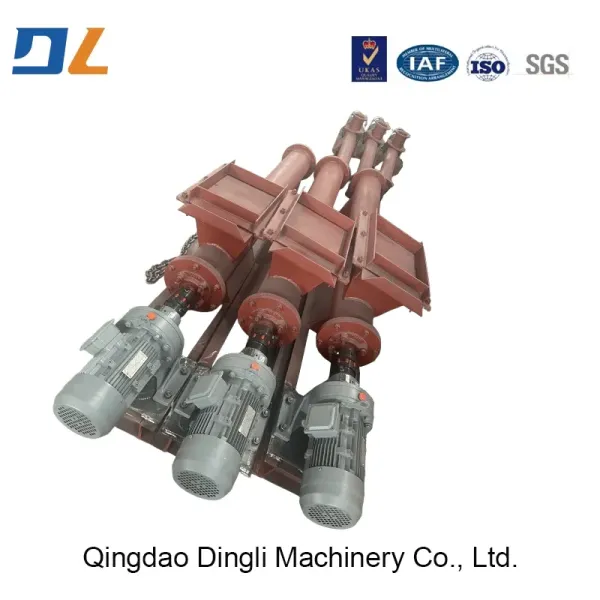

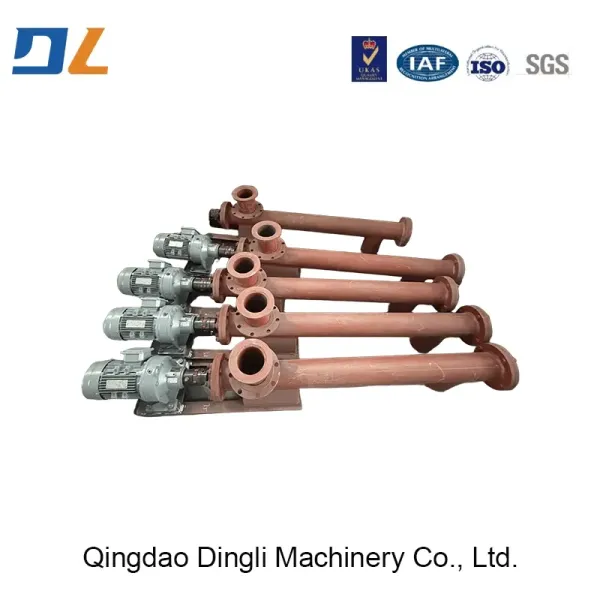

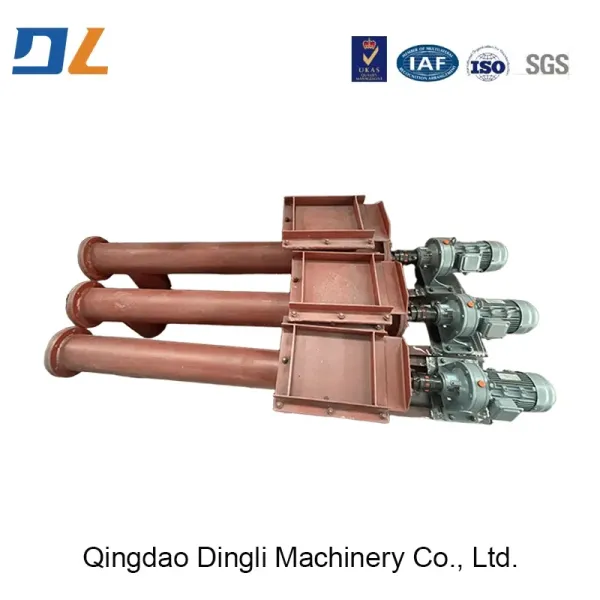

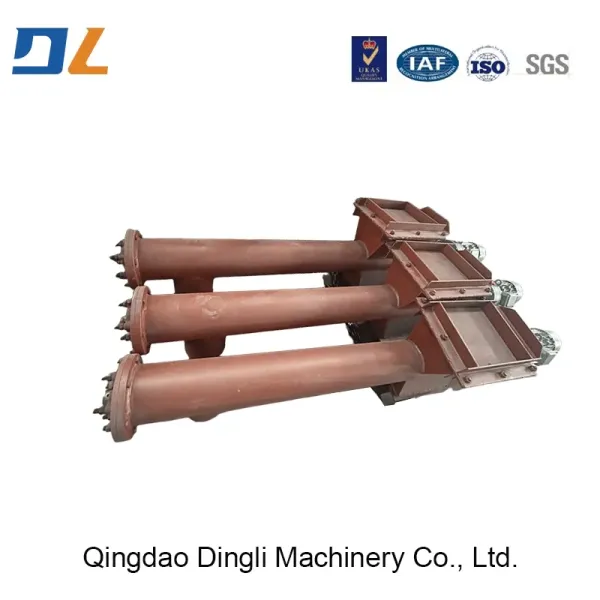

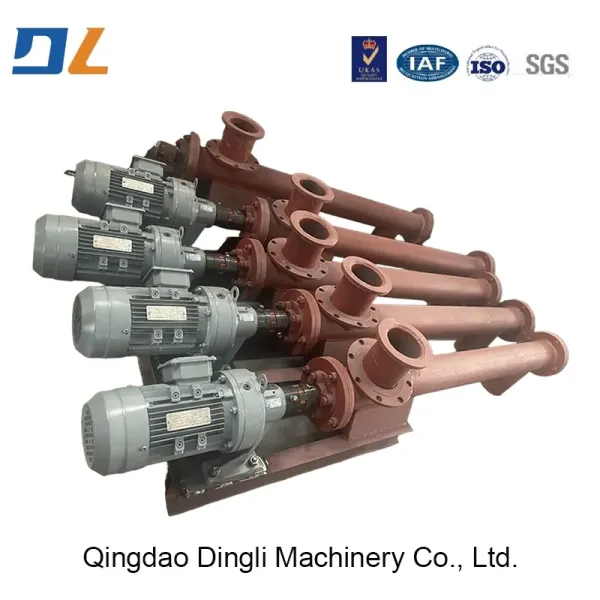

The Screw Feeder is a continuous volumetric conveying device widely used in industrial applications such as resin sand mixing systems, coated sand lines, cement batching, powder modification, biomass fuel, flue gas desulfurization, and chemical reactor feeding. It provides stable, uniform, and controllable feeding of bulk materials including base sand, powders, granules, and additives.

Utilizing a rotating screw shaft to propel material, combined with frequency control, weight feedback, and intelligent control systems, this equipment enables applications ranging from coarse feeding to high-precision dosing—making it an essential conveying and metering unit in automated production lines.

• Continuous & Stable Feeding: Driven by a motor, the rotating screw shaft continuously conveys material in a U-trough or tubular housing, ensuring pulse-free, uniform, and stable discharge—eliminating material interruption or surge feeding.
• Frequency-Controlled Speed Regulation: Equipped with a Variable Frequency Drive (VFD), allowing stepless speed adjustment (0-60 rpm) for precise flow control, adaptable to varying production rates and recipe requirements.
• High-Precision Metering (Optional): Optional integration with load cells and speed encoder enables loss-in-weight or weigh-belt metering systems, achieving dynamic accuracy of ±0.5%—ideal for precise dosing of resin, hardener, and additives.
• Wear-Resistant Design: Screw blades made of wear-resistant alloy steel (e.g., NM400, 65Mn) or tungsten carbide cladding/spraying; housing lined with ceramic tiles or polyurethane plates—greatly extending service life, especially for abrasive materials like silica sand or ore powder.
• Sealing & Dust Control: Multi-layer sealing (labyrinth + packing + air seal) at inlets, outlets, and bearings prevents dust leakage. Optional dust extraction port connects to pulse cartridge filters for a clean workshop environment.

• Precise base sand feeding for resin sand mixers
• Metering addition of resin and hardener in coated sand lines
• Powder batching systems for cement, fly ash, lime
• Continuous fuel feeding for biomass boilers and coal-fired power plants
• Reactor feeding systems in chemical and pharmaceutical industries
• Limestone/urea powder conveying in FGD/SCR systems

Qingdao Dingli Machinery Co., Ltd. is a company specializing in the production of casting machinery equipment. We mainly manufacture equipment for casting clay sand, resin sand, coated sand, wet sand drying, lost foam casting, sodium silicate sand, and more.

Our factory has strong technical strength and advanced processing equipment. We maintain long-term and close technical cooperation with many senior experts and scholars from domestic universities and research institutions. We provide users with high-performance, reliable products and satisfactory services.

Our company adheres to the principles of promoting enterprise development through technology, prioritizing quality, continuous improvement and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life to achieve common prosperity.

• 20-180t/h mechanized clay sand processing production line and single machine equipment turnkey project
• Annual production of 1000 to 20,000 tons of consolidated resin sand casting mechanized production line and single machine equipment turnkey project
• Annual production of 3,000 to 10,000 tons of hot processing coated sand complete equipment and single machine equipment turnkey project
• Annual production of 3,000 to 7,000 tons of hot coating sand regeneration complete equipment and single machine equipment turnkey project
• 5-15t/h sodium silicate mechanical production line and single machine equipment turnkey project
• 5-30t/h three-stage sand drying equipment and single machine equipment turnkey project
• 5-40t/h lost foam casting complete equipment and single machine equipment turnkey project
• Other types of shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, environmental protection dust removal equipment

Welcome to contact us!
