Shot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer
Shot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer
Shot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer
Shot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer
Shot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer
Shot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer
Shot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer
Shot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer
Shot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer
Shot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer
Shot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer
Shot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer
Specifications
Model NO. :
Q357
Sand Core Type :
Resin Sand Cores,Sodium Silicate Sand Cores
Application :
Casting Industry,Machinery Manufacturing Industry
Machining :
Machining,Welding Technology
Material :
Shot Blasting Chamber etc..
Surface Treatment :
Surface Treatment of The Shot Blasting Machine Its
Surface Roughness :
Ra3.2
Standard :
AISI
Certification :
CE, RoHS, ISO 9001:2000
Feature :
Critical Cleaning / Residue Free
Power Per Wheel :
7.5 ~ 30 Kw
Throughput :
6-120 Tons/Hour
Control System :
PLC + 10" HMI + Optional Scada/Iiot
Cleanliness :
High Cleanliness
Fuel :
Electric
Max Weight :
500-1000kg
Abrasive Flow Rate :
(2*200-5*250)Kg/Min
Elevator Capacity :
24-75/Hour
Total Power :
22,5-97,65/Kw
Air Volume :
4000-16000/Hour
Transport Package :
Nude Packaging + Moisture/Rust Prevention + Reinfo
Specification :
custom
Trademark :
DingLi
Origin :
Qingdao, Shandong Province
HS Code :
8479819000
Production Capacity :
1000piece/Year
MOQ :
1 Piece
Price :
US $6,000-15,000 /
Description
Product Description
Machine dimension 8000*3000*6000Â MM
Spring dimension Ф  45-75 , L 200-400 MM
Productivity 10-20 piece/Â min
Abrasive size 0.8-1.2 mm
Abrasive material Drills made of stainless steel or chromium-molybdenum alloy
Peening sffect 0,3-0,5А
Blast wheel Q034Z11*4
Workpiece moving speed 1.5 - 5Â m/min
Total power 75Â kw
Product Description of Shot Blasting Machine / Shot Blaster
The Shot Blasting Machine is a highly efficient surface treatment system that uses high-speed rotating blast wheels (impellers) to propel steel or cast steel shot at workpieces, removing scale, sand, rust, coatings, and burrs. With an integrated design of mechanical blasting, shot recycling, and multi-stage dust collection, it provides fast, thorough, and uniform cleaning for castings, forgings, welded structures, steel plates, and profiles. It significantly improves surface quality, enhances paint adhesion, and can improve material fatigue strength-widely used in automotive, construction machinery, shipbuilding, wind power, rail transit, pipelines, and valves industries.

Available in pass-through, hook-type, turntable, tumble belt, and overhead chain types, this series can be customized based on workpiece size, weight, material, production cycle, and cleaning requirements-suitable for both small-batch and high-volume automated production.
Working Principle
The machine operates through a closed-loop process of blasting, recovery, separation, and reuse:
Â
Loading & Conveying
Workpieces enter the blast chamber via rollers, hooks, tumbling belt, or turntable, positioned, and the cleaning cycle begins.

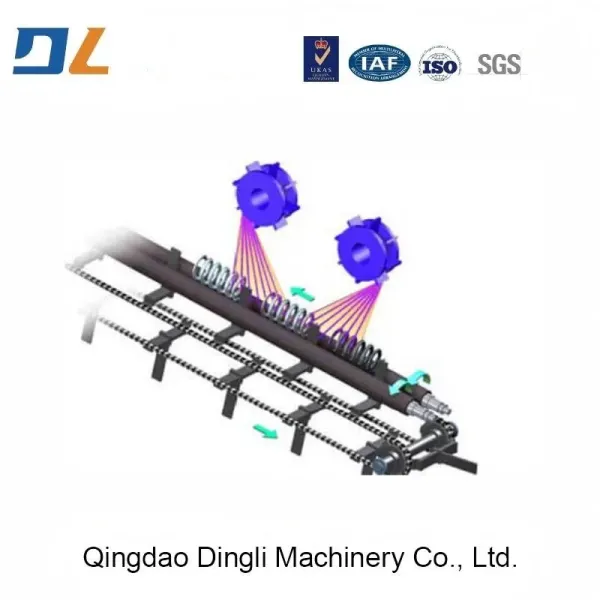

High-Speed Shot Blasting
The blast wheel, driven by direct motor or belt drive, spins at high speed (2,200-2,800 rpm). Shot is accelerated and ejected through a directional cage, impacting the workpiece surface to remove contaminants.
Â
Shot Recovery & Recycling
Spent shot and debris fall into a screw conveyor + bucket elevator, transported to the shot-sand separator. Dust and broken shot are removed via air wash + screening, and clean shot is automatically returned to the blast wheel.
Â
Dust Collection
Negative pressure in the blast chamber draws dust through cyclone + cartridge filter dual-stage purification. Emission ≤10mg/m³-compliant with national environmental standards (GB 39731-2020).

Unloading & Inspection
After cleaning, workpieces are automatically discharged. Optional vision inspection system or manual QC ensures surface cleanliness reaches Sa2.5 or higher.Shot Blaster, Custom Spring Shot Peening Blasting Machine ManufacturerShot Blaster, Custom Spring Shot Peening Blasting Machine ManufacturerShot Blaster, Custom Spring Shot Peening Blasting Machine ManufacturerShot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer
Company Profile

Shot Blaster, Custom Spring Shot Peening Blasting Machine Manufacturer

Qingdao Dingli Machinery Co., Ltd.
Qingdao Dingli Machinery Co., Ltd. is a company specializing in the production of casting machinery equipment. It mainly manufactures equipment for casting clay sand, resin sand, coated sand, wet sand drying, lost foam casting, sodium silicate sand, etc. It can undertake various turnkey projects, including the design, manufacturing, installation and commissioning of mechanical sand processing. Our factory has strong technical strength and advanced processing equipment. We have long-term and close technical cooperation with many senior experts and scholars from domestic universities and research institutions. We can provide users with high-performance, reliable products and satisfactory services.
Our company adheres to the principles of promoting enterprise development through technology, prioritizing quality, continuous improvement and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life to achieve common prosperity.
Our company mainly undertakes the following projects:
20-180t/h mechanized clay sand processing production line and single machine equipment turnkey project.
Annual production of 1000 to 20,000 tons of consolidated resin sand casting mechanized production line and single machine equipment turnkey project.
Annual production of 3,000 to 10,000 tons of hot processing coated sand complete equipment and single machine equipment turnkey project.
Annual production of 3,000 to 7,000 tons of hot coating sand regeneration complete equipment and single machine equipment turnkey project.
5-15t/h sodium silicate mechanical production line and single machine equipment turnkey project.
5-30t/h three-stage sand drying equipment and single machine equipment turnkey project.
5-40t/h lost foam casting complete equipment and single machine equipment turnkey project and other types of shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, environmental protection dust removal equipment.
