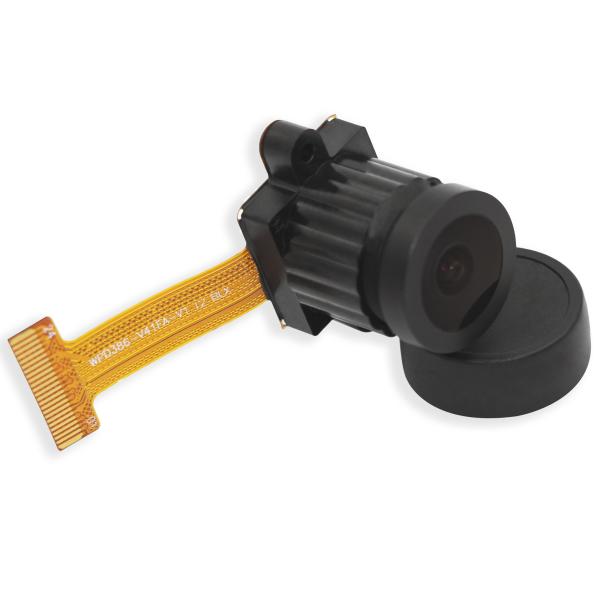

OEM 1080P MIPI Camera Module OV2732 Full HD 60FPS 150 Degree HDR Wide Angle
OEM 1080P MIPI Camera Module OV2732 Full HD 60FPS 150 Degree HDR Wide Angle
OEM 1080P MIPI Camera Module OV2732 Full HD 60FPS 150 Degree HDR Wide Angle
OEM 1080P MIPI Camera Module OV2732 Full HD 60FPS 150 Degree HDR Wide Angle
OEM 1080P MIPI Camera Module OV2732 Full HD 60FPS 150 Degree HDR Wide Angle
OEM 1080P MIPI Camera Module OV2732 Full HD 60FPS 150 Degree HDR Wide Angle
OEM 1080P MIPI Camera Module OV2732 Full HD 60FPS 150 Degree HDR Wide Angle
OEM 1080P MIPI Camera Module OV2732 Full HD 60FPS 150 Degree HDR Wide Angle
Specifications
Brand Name :
HAOZHOU / OEM
Model Number :
HZ-OV2732-V1.0
Certification :
CE / RoHS / FCC / ISO
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
15~25USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypay and others
Supply Ability :
500000 pieces/month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Tray+Anti-static bag in carton box
Mounting Type :
MIPI DVP interface
Description :
MIPI Camera Module
Sensor No :
OV2732
Sensor Type :
1/4 inch CMOS Sensor
Resolution :
1920 (H) x 1080 (V)
Transfer Rate :
60FPS
Pixel Size :
2.0 um x 2.0 um
Color :
RGB
FOV :
D=150Degrees (Optional)
Focus :
Fixed Focus (customize)
IR filter :
650nm IR
Interface :
MIPI DVP / USB (OEM)
Description

Customize factory High quality OV2732 1/4 inch Low Power Color 1080p HD CMOS Image Sensor MIPI Camera Module 2MP Face Recognition Mini Camera Module

OMNIVISION's OV2732 is a compact and power-efficient PureCel® image sensor designed for IoT-based residential and commercial surveillance systems. The OV2732 captures high-quality images and videos with staggered high dynamic range (HDR), ensuring excellent scene reproduction in all lighting environments. The sensor features frame synchronization for use in multi-camera or 360-degree camera systems, and supports ultra-low power mode (ULPM) typical power consumption of 0.4W@1080P, standby power consumption <5mW and ambient light sensor (ALS) minimum illumination of 0.05 Lux (black and white mode, infrared fill light conditions), making it particularly suitable for battery-powered security applications.

Based on OMNIVISION's PureCel® technology, the 1/4-inch OV2732 captures 1080p high-definition (HD) video at 60 frames per second (fps), 720p HD video at 90 fps, and VGA resolution video at 120 fps. Intelligent image processing built-in automatic exposure (AE) / automatic white balance (AWB) algorithm OV2732 can provide clear images and videos even in challenging low-light conditions.

Typical application areas
✅ Intelligent security: IPC network camera, smart door lock, baby monitoring
✅ In-vehicle electronics: driving recorder, streaming media rearview mirror, ADAS system
✅ Industrial vision: AGV navigation, dimension measurement, QR code recognition
✅ Consumer electronics: drone image transmission, video conferencing camera

1) Full HD 2MP with OV2732 CMOS sensor

2) Active Pixels:1920 (H) x 1080 (V)= 2 Mp
3) Optical Format:1/4-inch
4) Color Filter Array:RGB
5) ultra-low power
6) Interfaces: MIPI/DVP
7) Support customization
Camera Module No.
HZ-OV2732 S1.0
Resolution
2MP
Image Sensor
OV2732
Sensor Type
1/4"
Pixel Size
2.0 um x 2.0 um
Pixel
1920 x 1080
View Angle
150° (DFOV)
Module Type
Fixed Focus
Interface
MIPI and DVP Parallel
Operating Temperature
-40°C to +85°C
haozhou provides high quality camera modules with professional OEM design and manufacturing services to customers worldwide. We are carrying OmniVision, Sony, Samsung, Hynix, GalaxyCore...
The main application areas: mobile phone, digital still camera, laptop, DV, PDA/handheld, toy, PC camera, security camera, automotive camera, tablet pc, visual doorbell, medical system, smart home, industrial image, recognition system, fingerprint identification system ...
