Specifications
Brand Name :
HAOZHOU / OEM
Model Number :
HZ30-IMX577-S1.0
Certification :
CE / RoHS / FCC / ISO
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
25~40USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypay and others
Supply Ability :
500000 pieces/month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Tray+Anti-static bag in carton box
Description :
12MP MIPI CSI Camera Module
Mounting Type :
MIPI
Pixel :
12MP
FOV :
OEM
Focus :
Fixed Focus
Warranty :
3 years
Function :
Wide Angle
Data Storage Options :
Full HD
Description

Sony IMX577 1/2.3" 12.3-Megapixel CMOS Camera Module with 4K MIPI CSI Interface Camera


Product Description

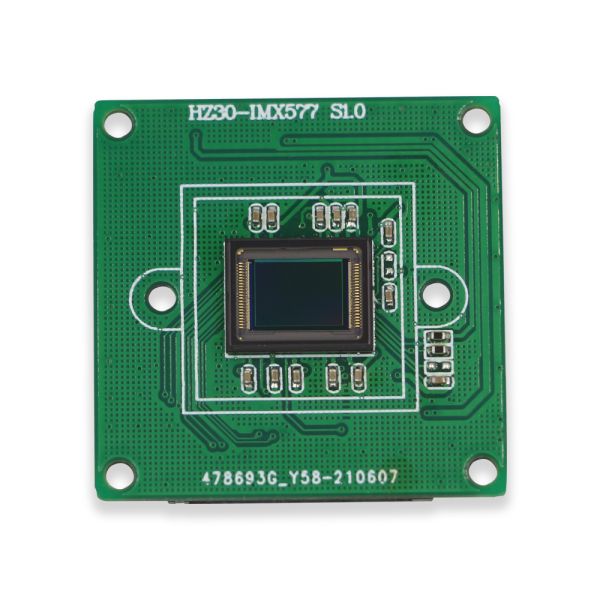

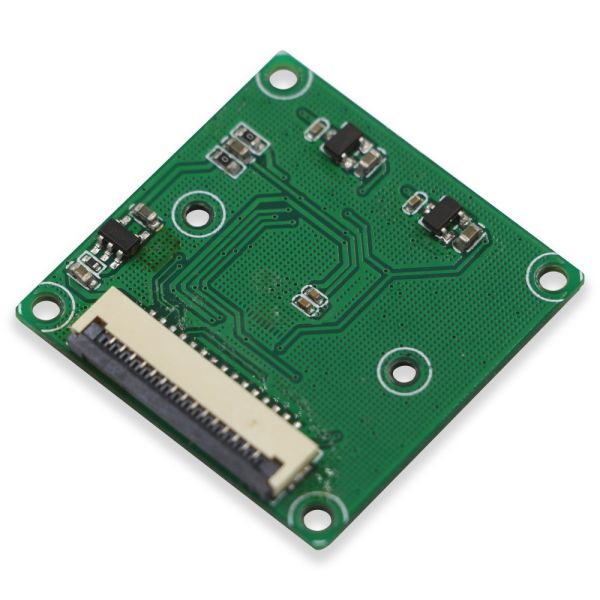

IMX577 12MP MIPI Camera Module

  • The IMX577-AACK is a diagonal 7.857 mm (Type 1/2.3) 12.3 Mega-pixel CMOS active pixel type stacked imagesensor with a square pixel array. I adopts Sony's Stacked CMOS Image Sensor technology to achieve high speedimage capturing by column parallel AD converter circuits and high sensitivity and low noise mage (comparing withconventional CMOS image sensor) through the backside lluminated imaging plxel structure. R, G, and B pigmentprimary color mosaic flter is employed. It equips an electronic shutter with variable integration time.


IMX577 RGB Mipi Camera Module Functions and Features

M12 No Distortion Lens: Sharp, undistorted visuals.
12MP CMOS Sensor: High resolution imaging for clear video.
MIPI Camera Sensor: Fast data transfer and compatibility.
12MP Sensor: Reliable performance for webcams.
IMX577 Camera Module: Advanced sensor for professional use.


CMOS Camera Module Applications

This camera module is widely used for high-tech and high-demanding applications like security, robotics, artificial intelligence(AI), machine vision, computer vison, IoT, surveillance, educational equipment, medical imaging, embedded devices, industrial automation, traffic monitoring system, agritech, video meeting, etc


Specifications:5MP FUII HD Camera Module

Feature Specification
Sensor Model IMX577
Pixel 12 Mega Pixel
Pixel Size 1.55μm × 1.55μm
Most effective pixels 4000(H) x 3000(V)

Focus type

Fixed Focus/ Manually Adjustable

Interface

 MIPI

Operating Temperature

 -20°C to +75°C

Dimension

 38MM x 38MM
