175°Ultra-Wide Angle Fisheye Lens 1080P HD 70fps OS05A10 Sensor USB 2.0 Camera Module

Product Description:

This 175° Ultra-Wide Angle Fisheye Lens 1080P HD 70fps OS05A10 Sensor USB 2.0 Camera Module,features the OS05A10 image sensor, supporting video output at up to 70fps in 1080P resolution for clear and smooth motion capture. The module utilizes an ultra-wide-angle lens with a focal length of 1.96mm and an F1.8 aperture, delivering a field of view up to 175°. Combined with distortion control below -40%, it effectively suppresses image distortion during close-range shooting, enabling wide-scene coverage and high-fidelity imaging. The module supports USB 2.0 UVC protocol and is compatible with dual output formats (YUV and MJPEG). It offers plug-and-play functionality without requiring drivers, making it suitable for multiple operating systems including Windows, Linux, and Android. With a working distance ranging from 30cm to infinity, its compact structure and excellent optical stability make it ideal for applications such as panoramic surveillance, dashcams, video conferencing, action cameras, and various embedded systems requiring wide-angle, high-frame-rate visual capture.

Features:

1. Ultra-wide viewing angle with low distortion imaging: Equipped with a 175° ultra-wide-angle lens, distortion control remains below -40%, enabling coverage of expansive scenes while effectively suppressing image distortion. Ideal for panoramic surveillance and wide-area visual capture.

2. High Frame Rate Clear Motion Imaging: Supports video output up to 70fps at 1080P resolution, delivering smooth and detailed dynamic footage. Ideal for high-speed motion capture and real-time video applications.

3. Plug-and-Play with Multi-System Compatibility: Compliant with USB 2.0 UVC protocol, supports dual output formats (YUV and MJPEG). No driver installation required for plug-and-play operation on Windows, Linux, Android, and other systems.

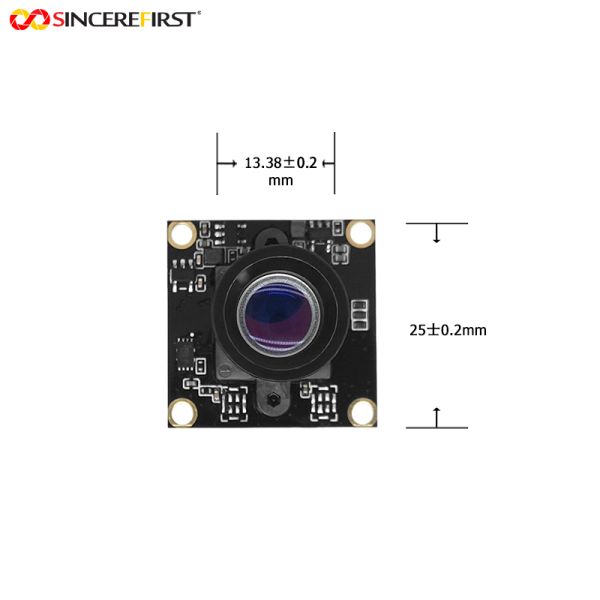

4. Compact Structure and Stable Optical Performance: Compact design with a 1.96mm fixed-focus lens delivers consistent imaging performance across the 30cm to infinity focus range, making it suitable for various embedded vision systems.

Technical Parameters:

Applications:

1. Panoramic Security and Surveillance Systems: Ideal for wide-area security cameras, panoramic monitoring systems, and access control surveillance requiring extensive coverage with minimal distortion.

2. In-Vehicle and Driving Recording Systems: Designed for integration into dashcams, backup cameras, and surround-view systems, providing broad-angle coverage for driving safety and event recording.

3. Video Conferencing and Live Streaming Equipment: Suitable for conference cameras, live streaming devices, and telepresence systems, where its wide field of view naturally captures multiple participants and environmental scenes.

4. Sports and Action Photography Equipment: Suitable for action cameras, wearable recording devices, and outdoor filming gear, balancing wide-angle perspectives with high-frame-rate video recording requirements.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
