Mini 8MP CIS Sony IMX415 Wide Dynamic Range USB 2.0 Camera Module

Product Description:

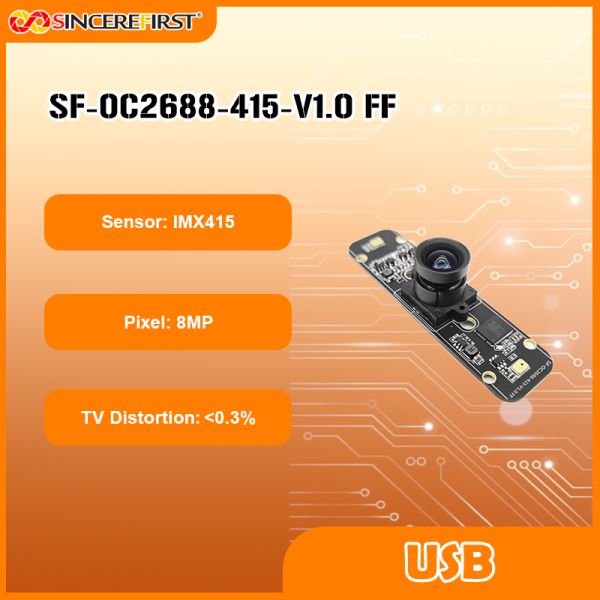

This is a Mini 8MP CIS Sony IMX415 Wide Dynamic Range USB 2.0 Camera Module, equipped with the Sony IMX415 CMOS color image sensor. It features 8MP high-definition pixels and supports dual-mode switching between 4K@30FPS ultra-high-definition static recording and 1080P@60FPS smooth dynamic output. With a sensor size of 1/2.8 inch, its 1.45μm×1.45μm large pixel specification lays a solid physical foundation for excellent image quality. Integrating Starvis low-light enhancement technology and HDR function, it achieves an ultra-high 72dB dynamic range, enabling accurate detail restoration even in environments with strong light-dark contrast. The module supports the MJPG output format, and its lens configuration balances practicality and professionalism: the focus range covers 6cm~200cm, flexibly adapting to macro and medium-to-long distance shooting; the F2.2 large aperture further improves light transmission efficiency; the 3.85mm focal length is matched with a wide field of view of D86°×H76°×V48°, while TV distortion is controlled at an ultra-low level of < 0.3%; the manual focus design, combined with a 650nm IR filter, effectively filters out infrared interference to ensure true and accurate color reproduction. The module has a compact body size of only 72mm×19.1mm×16.6mm, is equipped with a USB 2.0 interface and supports the UVC protocol, enabling seamless compatibility with mainstream operating systems. Manufactured via the SMT process and AA (Active Alignment) manufacturing process, the product ensures yield rate and consistency, and has obtained international certifications including CE, FCC, RoHS, and Reach.

Features:

1. Large Pixel Size: The physical size of 1.45μm pixels increases light intake per unit, significantly reducing noise in low-light environments. Combined with Starvis low-light technology and the F2.2 large aperture, it delivers higher image purity in dim scenarios.
2. Wide Dynamic Range: The 72dB ultra-wide dynamic range, paired with HDR function, can fully retain details in both bright highlights and dark shadows simultaneously. It avoids overexposure in strong light or color loss in weak light, easily handling complex lighting scenarios such as backlighting and alternating light and dark.
3. Multi-Scenario Adaptability: The 4K@30FPS mode provides ultra-high resolution to meet the needs of static detail recording; the 1080P@60FPS mode ensures smooth dynamic images without motion blur, suitable for real-time transmission scenarios.
4. Low Distortion: The ultra-low TV distortion of < 0.3% ensures accurate geometric proportions of the image. Combined with manual focus and the 650nm IR filter, it achieves true color reproduction and avoids visual deviations.
5. High Compatibility: It supports seamless adaptation with mainstream operating systems such as Windows, MacOS, and Linux via the UVC protocol, enabling plug-and-play functionality without the need for complex driver installation.

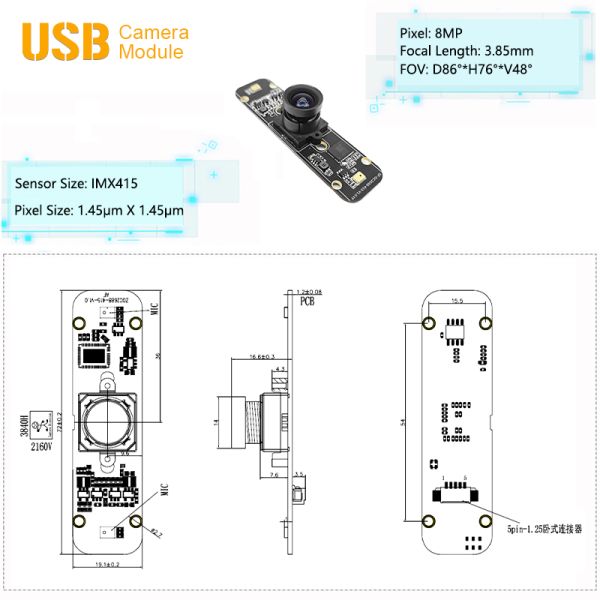

6. Reliable Manufacturing Process: The compact size of 72mm×19.1mm×16.6mm facilitates integration into various devices. The SMT process and AA manufacturing process ensure the consistency and stability of the module; multiple international certifications demonstrate the product’s compliance and safety, providing peace of mind for long-term use.

Technical Parameters:

Applications:

• Automotive Vision: It balances internal and external light, clearly recording the driver’s status inside the vehicle and the license plate surroundings outside the window. Meanwhile, it enhances nighttime driving safety and the effectiveness of evidence collection during dusk, dawn, or nighttime driving.
• Mobile Robots: In environments with alternating light and dark, it still generates images with complete details for navigation and recognition. During low-light periods such as early morning and evening, inspection tasks can still be carried out normally, capturing clear images of equipment status or the environment.
• Catering Surveillance: It can clearly capture details such as food freshness and tableware cleanliness, truly restoring the light-dark contrast between the strong light of the kitchen stove and the cool storage area, as well as the color of ingredients. This facilitates compliance inspections by regulatory authorities and self-inspections by enterprises.
• Remote Teaching: It clearly displays creative details such as brush strokes, paint textures, and fabric textures, making it suitable for course recording and archiving. During real-time interactions, it accurately conveys key points of remote teaching.
• Intelligent Warehousing: It covers multiple layers of shelves at once, accurately identifying goods labels and packaging printing details, and correctly judging the stacking status and size of goods, thereby improving the efficiency of random inspections.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
